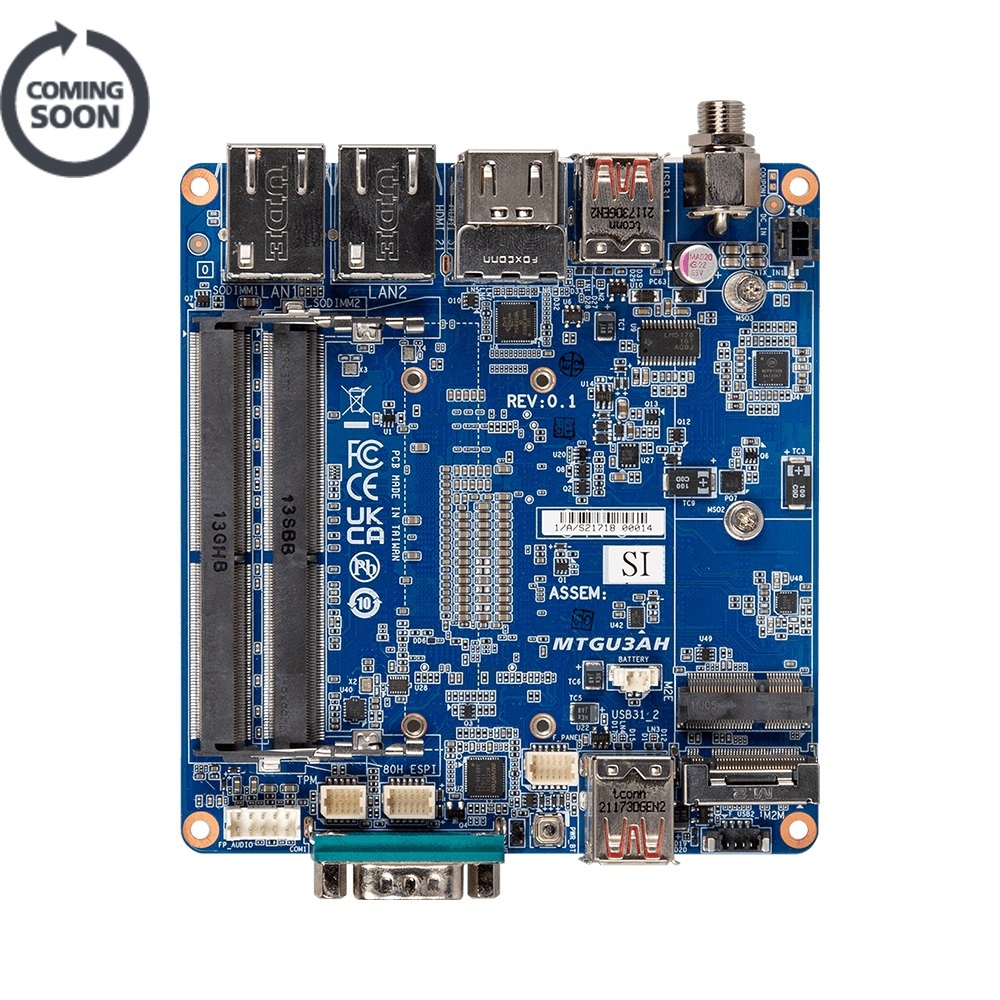

QBi-1115G4EA
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | FCBGA1449 |
| マザーボードサイズ | Proprietary（独自規格） |
| 製品説明 |
製品仕様
| Form Factor | Embedded Compact Board 105W x 110D(mm) |
|---|---|
| CPU | Intel® Core™ i3-1115G4E Processor 10nm SuperFin, 2 cores, 4 threads, up to 3.90 GHz TDP 15W 6 MB Smart Cache |
| Socket | 1 x FCBGA1449 |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB Support Dual Channel DDR4 3200 MHz memory modules |
| LAN | 2 x GbE LAN ports (Intel® i219V and Realtek® RTL8111HS) |
| Video | Integrated Graphics Processor - Intel® UHD Graphics: 2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2304 @60Hz (2 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Expansion Slots | 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key |
| Internal I/O | 1 x 2-pin power connector 1 x CPU fan header 1 x Front panel header 1 x Front panel audio header 1 x USB 2.0 header |
| Rear I/O | 2 x HDMI 2 x RJ45 LAN Ports 2 x USB 3.2 Gen 2x1 1 x Screw type DC Jack (+9V~48VDC) |
| TPM | 1 x TPM header |
| OS Compatibility | Windows 10 (x64) |
| Packaging Content | Capacity: 10pcs Carton size: 465x351x217(mm) |
| Ordering Information | 9MTGU3AHMR-SI (Box packing) |
| Front I/O | 2 x USB 3.2 Gen 2x1 1 x Power button 1 x COM Port (RS-232/422/485) |
