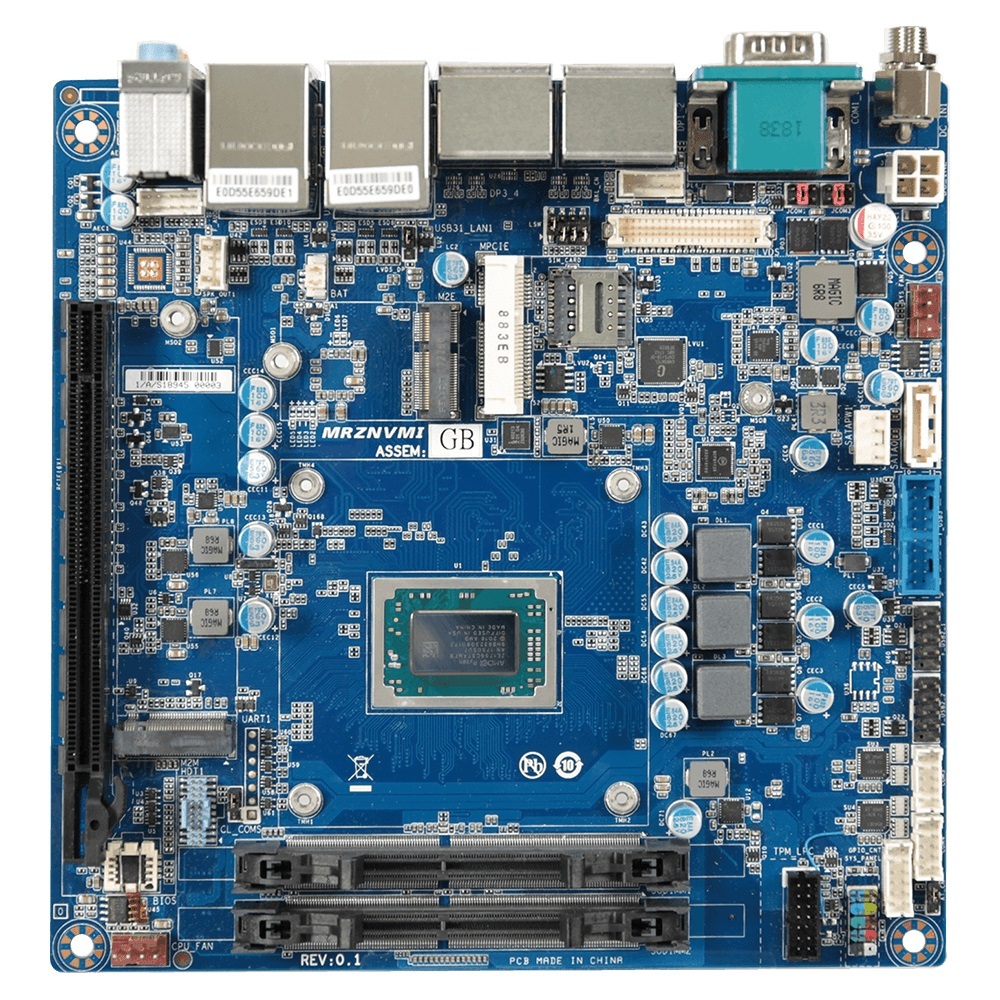

mITX-1605A

製品種別 | マザーボード |
---|---|
CPUソケット数 | |
CPU | |
CPUソケット | BGA-1140 (FP5 BGA) |
マザーボードサイズ | Mini-ITX |
製品説明 | AMD Ryzen™ V1605B Embedded Processor |
製品仕様
Form Factor | Mini-ITX 170W x 170D(mm) |
---|---|
Operating Properties | Operating temperature: 0°C to 60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) |
CPU | AMD Ryzen™ V1605B Embedded Processor 14nm, 4 cores, 8 threads, 2.0 GHz, up to 3.6GHz TDP 25W |
Socket | 1 x FP5 BGA |
Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 32GB Support Dual channel DDR4 2400 MHz memory modules |
LAN | 2 x GbE LAN ports (Realtek® RTL8111HS) |
Video | Integrated Graphics Processor - AMD Radeon™ Vega 8 Graphics: 4 x DP ports, supporting a maximum resolution of 4096x2160 @60Hz 1 x LVDS port, supporting a maximum resolution of 1080P (switch from DP) (4 independent display outputs) |
Audio | Realtek® Audio Codec |
Expansion Slots | 1 x PCIe x16 (Gen3 x8) 1 x 2280 M.2 M-Key (SATA 6Gb/s) 1 x 2230 M.2 E-Key 1 x Full-size Mini PCIe with SIM slot |
Internal I/O | 1 x 4-pin ATX power connector 1 x SATA power connectors 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header 6 x USB 2.0 headers 2 x COM headers (RS-232) 1 x GPIO (8 bits) & SMBUS header 1 x Backlight Control header 1 x LVDS/ DP Jumper 1 x AT/ATX mode jumper 1 x Clear CMOS jumper |
Rear I/O | 3 x Audio jacks (Line in, Line out, Mic in) 2 x COM Ports (RS-232/422/485 and RI/5V/12V) 4 x Display Ports 2 x RJ45 LAN Ports 4 x USB 3.0 1 x DC Jack (+12V~24VDC) |
TPM | 1 x TPM Header |
OS Compatibility | Windows 10 (x64) |
Packaging Content | Capacity: 10pcs Carton size: 556 x 476 x 244(mm) Content: IO Shield x 1 (P/N: 12AIO-MRZNV0-00R) SATA Power cable x 1 (P/N: 25CRI-200B02-K1R) FANSINK x 1 (P/N: 12SF2-01A077-00R) |
Ordering Information | Fan version: 9MRZNVMIMR-SI (Box packing) |
Storage | 1 x SATA 6Gb/s port |
