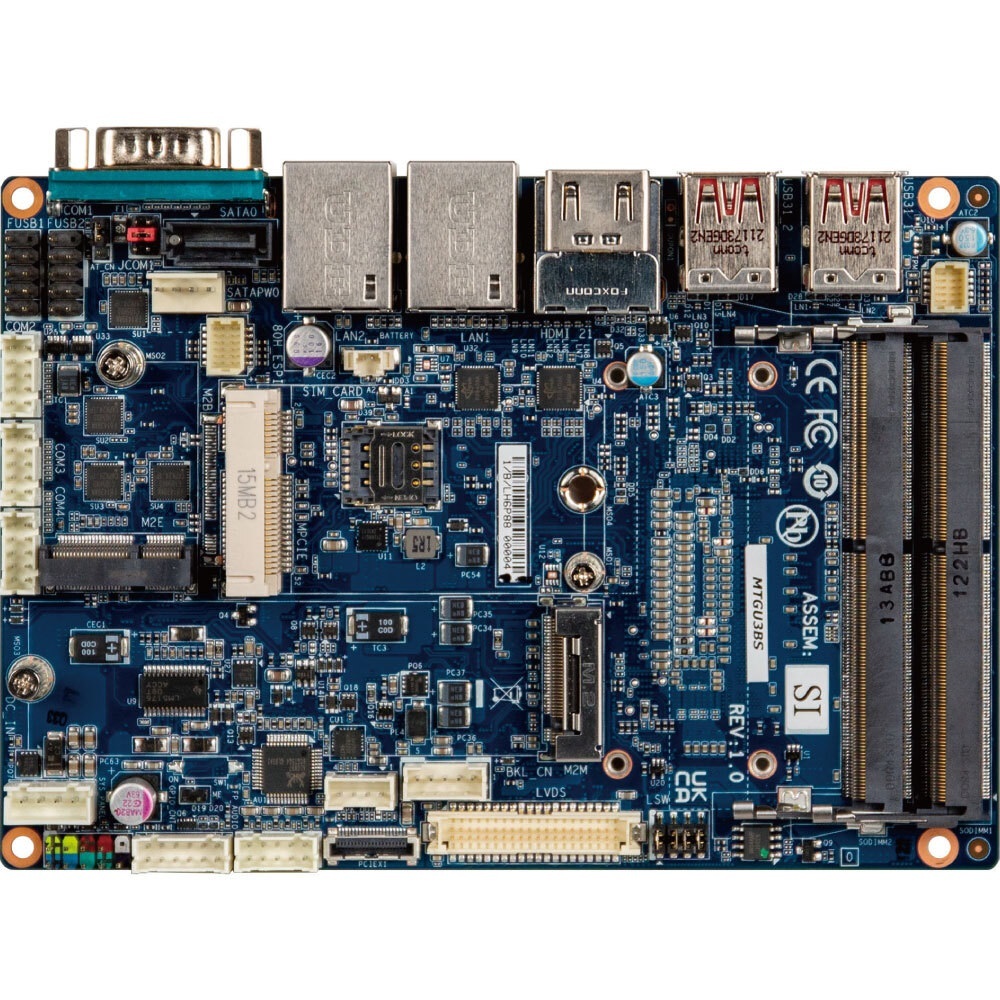

QBiP-1115G4EB
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | FCBGA1449 |
| マザーボードサイズ | 3.5”SBC |
| 製品説明 |
製品仕様
| Form Factor | 3.5" SBC 146W x 101.7D(mm) |
|---|---|
| Operating Properties | Operating temperature: 0°C to +60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to +85°C Non-operating humidity: 0%-95% (non-condensing) |
| CPU | Intel® Core™ i3-1115G4E Processor 10nm SuperFin, 2 cores, 4 threads, up to 3.90 GHz TDP 28W 6 MB Smart Cache |
| Socket | 1 x FCBGA1449 |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB Support Dual Channel DDR4 3200 MHz memory modules |
| LAN | 2 x GbE LAN Ports (Intel® i219V and Intel® i211AT) |
| Video | Integrated Graphics Processor - Intel® UHD Graphics: 2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2304 @60Hz 1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz (3 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Expansion Slots | 1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s) 1 x 2230 M.2 E-Key 1 x Full-size Mini PCIe with SIM slot 1 x PCIe x1 (Board to Wire connector, PCIe Gen3 x1) |
| Internal I/O | 1 x 4 pin box power connector (DC in +9V~48VDC) 1 x SATA Power header 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header 4 x USB 2.0 headers 3 x COM headers (RS-232/422/485) 1 x Backlight control header 1 x AT/ATX mode select jumper 1 x GPIO (8-bits) & SMBUS header 1 x SPI header |
| Rear I/O | 1 x COM Port (RS-232/422/485 and RI/5V/12V) 2 x HDMI 2 x RJ45 LAN Ports 4 x USB 3.2 Gen 2x1 |
| TPM | 1 x TPM header |
| OS Compatibility | Windows 10 (x64) |
| Packaging Content | Capacity: 10pcs Carton size: 465 x 351 x 217(mm) Content: SATA Power cable x 1 (P/N: 25CRI-200B02-K1R) |
| Ordering Information | 9MTGU3BSMR-SI (Box Packing) |
| Storage | 1 x SATA 6Gb/s port (SATA RAID 0/1) |
