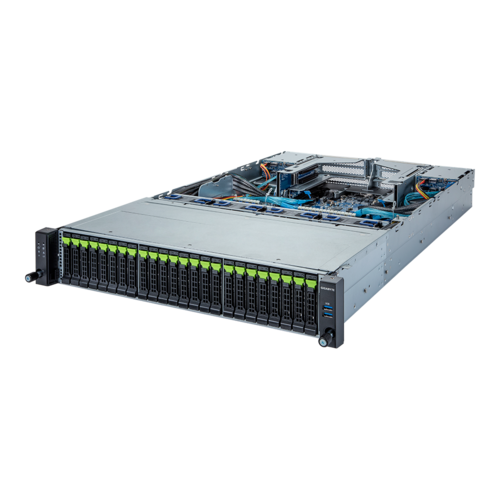

R282-P91 (rev. 100)

製品種別 サーバ
CPUソケット数 2
CPU 　
筐体サイズ 2U
最大GPU数
電源仕様 リダンダント電源
用途/特長 　　
製品説明 Ampere® Altra® Max ARM Server - 2U DP 24+4-Bay | Application: Networking

製品仕様

Dimensions (WxHxD, mm) 2U
438 x 87 x 730 mm
Motherboard MP92-FS0
CPU Ampere® Altra® Max Processor
Dual processors, 7nm technology
Up to 128-core per processor, TDP 250W

NOTE:
If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket Dual sockets
LGA4926
Chipset System on Chip
Memory 32 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 256GB supported
LRDIMM modules up to 256GB supported
Up to 4TB of memory capacity supported per processor
Memory speed: Up to 3200 MHz

NOTE: Only supports configurations with 1, 2, 4, 6, 8, 12, or 16 DIMMs
LAN 2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
NCSI function supported
1 x 10/100/1000 Mbps management LAN
Video Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Audio N/A
Storage Front side: 24 x 2.5" Gen4 NVMe hot-swappable bays
Rear side: 4 x 2.5" SATA hot-swappable bays, from onboard SATA controller ( asmedia ASM1166)
SAS N/A
RAID N/A
Peripheral Drives N/A
Expansion Slots Riser Card CRS101J:
- 1 x PCIe x16 slot (Gen4 x16), Full height half-length

Riser Card CRS101K:
- 1 x PCIe x16 slot (Gen4 x16), Full height half-length

Riser Card CRS202G:
- *1 x PCIe x16 slot (Gen4 x16), Full height half-length
NOTE: 1 PCIe slot is disabled

Riser Card CRS202H:
- *1 x PCIe x16 slot (Gen4 x16), Full height half-length
NOTE: 1 PCIe slot is disabled

2 x OCP 3.0 Gen4 x16 mezzanine slots ( Disabled)

1 x M.2 slot:
- M-key
- PCIe Gen4 x4
- Supports 2242/2260/2280/22110 cards
Internal I/O 1 x M.2 slot
1 x TPM header
1 x Front panel header
1 x HDD/SSD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
Front I/O 2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
Rear I/O 2 x USB 3.2 Gen1
1 x mini-DP
2 x RJ45
1 x MLAN
Backplane I/O Front side_CBP20O7: 24 x Gen4 U.2 ports
Rear side_CBP2022: 2 x SATA ports
Speed and bandwidth: PCIe Gen4 x4 or SATA
TPM 1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply 2 x 1600W power supply
80 PLUS Platinum

AC Input:
- 100-120V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz

DC Output:
- Max 1000W/ 100-120V~
+12V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 200-240V or 240Vdc Input
+12V/ 133A
+12Vsb/ 2.5A
System Management Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility Red Hat Enterprise Linux 8.3 ( aarch64 ) or later
Red Hat Enterprise Linux 8.5 ( aarch64 ) or later

SUSE Linux Enterprise Server 15 SP2 ( aarch64 ) or later
SUSE Linux Enterprise Server 15 SP3 ( aarch64 ) or later

Ubuntu 18.04.5 LTS ( aarch64 ) or later
Ubuntu 20.04.1 LTS ( aarch64 ) or later
Ubuntu 22.04 LTS ( aarch64 ) or later

Fedora Server 33-1.2 ( aarch64 ) or later
Fedora Server 35-1.2 ( aarch64 ) or later

OracleLinux R8 U2
OracleLinux R8 U5

Debian 10.9 (Buster)
Debian 11.1
System Fans 4 x 80x80x38mm (16,300rpm)
Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions 1077 x 679 x 300 (mm)
Packaging Content 1 x R282-P91 system
2 x CPU heatsink
1 x Rail kit
Part Numbers Barebone package: 6NR282P91DR-00
Spare parts:
- Motherboard: 9MP92FS0NR-00
- Rail kit: 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-323207-A0R
- Back plane board_24-port: 9CBP20O7NR-00
- Back plane board_2-port: 9CBP2022NR-00
- Fan module: 25ST2-883829-D0R
- Riser Card_CRS101J: 9CRS101JNR-00
- Riser Card_CRS101K: 9CRS101KNR-00
- Riser Card_CRS202G: 9CRS202GNR-00
- Riser Card_CRS202H: 9CRS202HNR-00
- G-SC Module: 9CDCR111UR-00
- Front panel board_CFP2001: 9CFP2001NR-00
- Power supply module: 25EP0-216008-L0S
