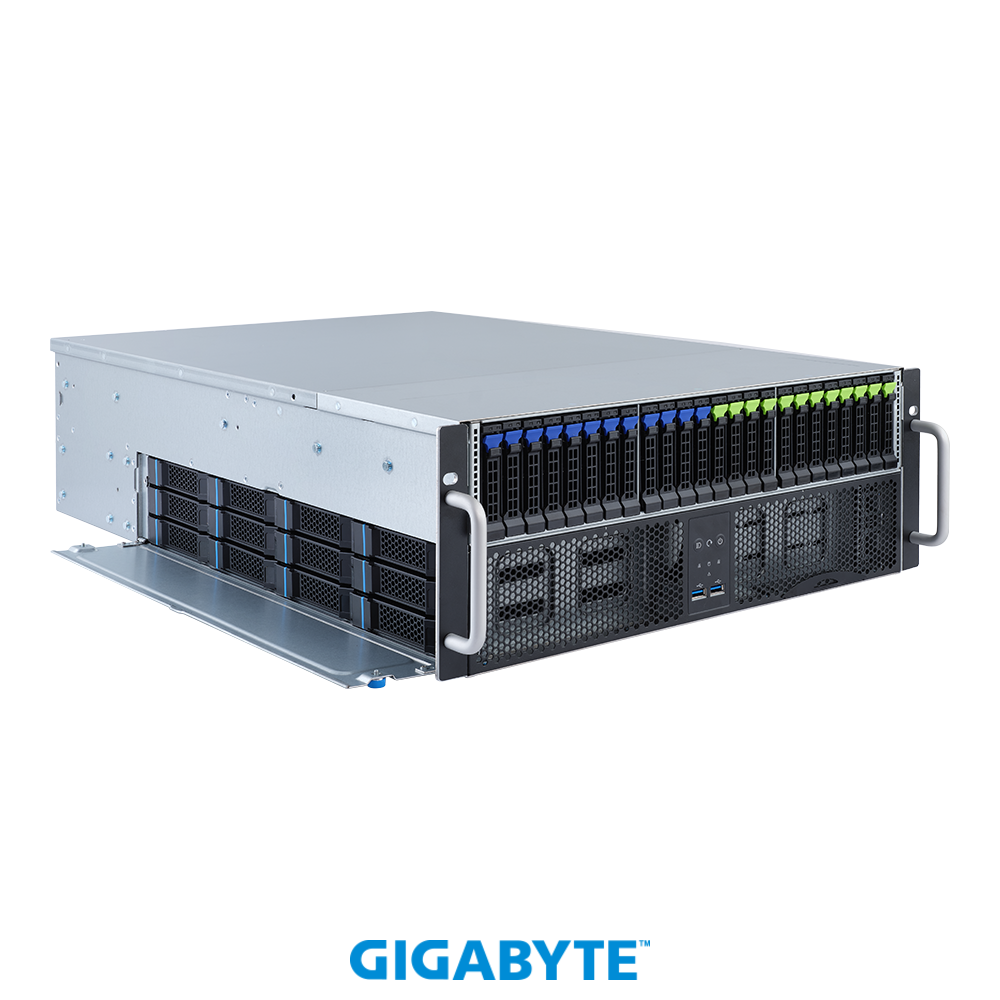

S472-Z30 (rev. A00)

製品種別 サーバ
CPUソケット数 1
CPU

筐体サイズ 4U
最大GPU数
電源仕様 リダンダント電源
用途/特長
製品説明 4U 50-Bay Single Processors Storage Server (AMD MILAN-X)
Application: Storage & Networking

AMD第3世代EPYC 7003シリーズについて


製品仕様

Dimensions (WxHxD, mm) 4U
482 x 175 x 696.6
Motherboard MZ32-AR1
CPU AMD EPYC™ 7003 processors with AMD 3D V-Cache™ Technology
AMD EPYC™ 7003 series processor family
Single processor, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
cTDP up to 280W

Compatible with AMD EPYC™ 7002 series processor family
Socket Socket SP3
Chipset System on Chip
Memory 16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/ 2933 MHz

- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
LAN 2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 management LAN
Video Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Audio N/A
Storage 24 x 3.5" SATA/SAS hot-swap HDD/ SSD bays (right side & left side)
24 x 2.5" SATA/SAS/NVMe hot-swap SSD bays (front side)
- 12 x 2.5" SATA/SAS hot-swap SSD bays
- 4 x 2.5" SATA/SAS/NVMe hybrid hot-swap SSD bays
- 8 x 2.5" NVMe hot-swap SSD bays
2 x 2.5" SATA hot-swap SSD bays (rear side)

1 x Broadcom SAS35x36R expanders
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port

Default configuration supports:
12 x NVMe devices in front side and 2 x SATA in rear side available

SAS card is required to enable the drive bays

Recommended SAS cards:
Broadcom 9500-16i Tri-Mode Storage Adapter
Broadcom 9560-8i Tri-Mode Storage Adapter
SAS Depends on SAS add-on Card
RAID Depends on SAS add-on Card
Peripheral Drives N/A
Expansion Slots Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot, occupied by CNV3134, 4 x Gen4 NVMe HBA
Slot_5: 1 x PCIe x16 (Gen4 x8 bus) slot
Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot occupied by CNV3134, 4 x Gen4 NVMe HBA
Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot
Slot_2: 1 x PCIe x8 (Gen3 x0 or x8 bus) slot
Slot_1: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot; shared with slot_2

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4)

2 x M.2 slots:
- M-key
- PCIe Gen4 x4
- Supports NGFF-2242/2260/2280 cards
Internal I/O 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x M.2 slots
2 x CPU fan headers
5 x System fan headers
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer
Front I/O 2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
2 x LAN activity LEDs
1 x HDD activity LED
Rear I/O 3 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane I/O Front side_CBP20O7: 24-port, 2.5"
Rear side_CBPD020: 2-port, 2.5"
Right side_CBPD2C0: 12-port, 3.5"
Left side_CBPD2C1: 12-port, 3.5"
Bandwidth: SATA 6Gb/s or SAS 12Gb/s or NVMe PCIe Gen4 x4
TPM 1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply 2 x 1600W redundant PSUs
80 PLUS Platinum

AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 9.5A, 50-60Hz
DC Input:
- 240Vdc/ 8A

DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1600W/ 200-240V~ or 240Vdc input
+12V/ 130.4A
+12Vsb/ 3A
System Management Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019

Red Hat Enterprise Linux 8.3 ( x64) or later

SUSE Linux Enterprise Server 12 SP5 ( x64) or later
SUSE Linux Enterprise Server 15 SP2 ( x64) or later

Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later

Citrix Hypervisor 8.2.0 or later
System Fans 8 x 80x80x38mm (14,400rpm)
Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions 1100 x 700 x 483 mm
Packaging Content 1 x S472-Z30
1 x CPU heatsinks
1 x Rail kit
Part Numbers Barebone package: 6NS472Z30MR-00 Rev. A00
Part Numbers:
- Motherboard: 9MZ32AR1NR-00
- Rail kit: 25HB2-A66123-C0R
- CPU heatsink: 25ST1-15320E-J1R
- Back plane board_Front side_24-port: 9CBP20O7NR-00-00
- Back plane board_Rear side_2-port: 9CBPD020NR-00-00
- Back plane board_Right side_12-port: 9CBPD2C0NR-00-00
- Back plane board_Left side_12-port: 9CBPD2C1NR-00-00
- Fan module: 25ST2-883829-D0R
- 1600W Power supply: 25EP0-21600B-F3S
