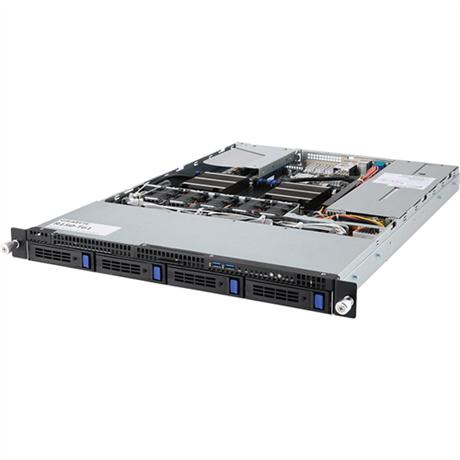

R150-T62 (rev. 100)
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | |
| 最大GPU数 | |
| 電源仕様 | |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Dimensions (WxHxD, mm) | 1U 430 x 43.5 x 625 mm |
|---|---|
| Motherboard | MT60-SC3 |
| CPU | Marvell® ThunderX® family 2 x ThunderX_CP™ processors 64bit ARMv8 architecture 48 cores per processor, 2.0GHz BGA 2601, 28nm technology |
| Chipset | - |
| Memory | 16 x DIMM slots DDR4 memory supported only Quad channel memory architecture Up to total 512GB memory capacity 1866 MHz with 2DPC for Single Rank or Dual Rank RDIMMs / ECC UDIMMs 2133 MHz with 1DPC for Single Rank or Dual Rank RDIMMs / ECC UDIMMs NOTE: Due to processor specification, at least 4 x DIMM modules must be installed for this model |
| LAN | 3 x 40GbE QSFP+ LAN ports 4 x 10Gb/s SFP+ LAN ports 1 x 10/100/1000 management LAN port |
| Video | Integrated in Aspeed® AST2400 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp |
| Audio | - |
| Storage | 4 x 3.5" hot-swappable HDD bays 2.5" HDD/SSD supported - NOTE: GIGABYTE recommends that you follow the QVL when selecting hard drives, to avoid any system compatibility issues |
| SAS | - |
| RAID | Depends on OS RAID |
| Peripheral Drives | - |
| Expansion Slots | 1 x Full-height half-length slot with PCIe x16 (Gen3 x8 bus) slot |
| Internal I/O | 1 x 24-pin main power connector 2 x 8-pin power connectors 2 x CPU fan header 5 x System fan headers 1 x USB 3.0 header 1 x COM2 header 1 x SATA SGPIO header 1 x Front panel headers 1 x back plane board header 1 x PMBUS header 1 x BMC JTAG header 1 x JTAG PLD header 1 x BMC reset header 1 x Clear CMOS jumper 1 x BIOS recovery jumper 1 x IPMB connector |
| Front I/O | 2 x USB 3.0 1 x Power button with LED 1 x ID button with LED 1 x Reset button 1 x System status LED 1 x HDD activity LED 4 x LAN activity LEDs (Dedicated for 10Gb/s SFP+ LAN ports) |
| Rear I/O | 1 x ID button with LED 2 x USB 3.0 1 x VGA 1 x COM1 3 x QSFP+ 4 x SFP+ 1 x RJ45 |
| Backplane I/O | Speed and bandwidth: SATA 6Gb/s |
| TPM | - |
| Power Supply | 2 x 650W redundant PSUs 80 PLUS Platinum AC input: - 100-240V, 50-60Hz, 10/5A DC output: - 650W |
| System Management | Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
|
| OS Compatibility | Certified OS Ubuntu 16.04.1 64bit SLES12 SP2 Compatible OS openSUSE Tumbleweed openSUSE Leap 42.1+ RHEL 7.3 64bit CentOS 7.3 64bit |
| Weight | 13 kg (barebone) |
| System Fans | 5 x 40x40x56mm (23000rpm) |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Packaging Dimensions | 959 x 588 x 248 (mm) |
| Packaging Content | 1 x R150-T62 system 1 x Quick Installation Guide 1 x Rail kit |
| Part Numbers | Rackmount: 6NR150T62MR-00 Motherboard: 9MT60SC3NR-00 Power supply: 25EP0-206504-F3S Power Supply PDB: 25EP1-206500-F3S Rail Kit: 25HB2-3A6101-K0R |
