製品情報

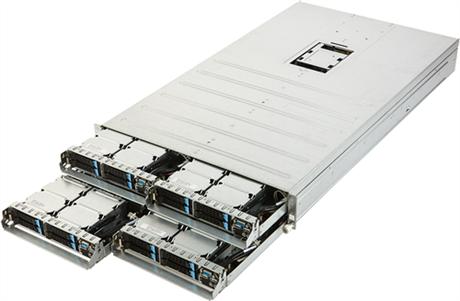

G211-H4G (rev. 100)

製品種別 サーバ
CPU

筐体サイズ
電源仕様
用途/特長
製品説明

製品仕様

Dimensions (WxHxD, mm) 2U
447 x 87.2 x 780
Motherboard 4 x MX11-PC0
CPU Supports Intel® Xeon® processor E3-1200 V6/V5 product family
Supports 7th/ 6th Gen Intel® Core™ i3 processors, Intel® Celeron® processors, Intel® Pentium® processors
Socket Per node:
1 x LGA 1151
Chipset Per node:
Intel® C232
Memory 2 x DIMM slots
Dual channel memory architecture
Supports 1.2V DDR4 memory
ECC UDIMM modules supported
Up to 32GB
Supported speeds: 2400/2133 MHz
LAN Per node:
2 x GbE LAN ports (Intel® I210-AT)
Video Per node:
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio -
Storage Per node:
4 x 2.5" hot-swappable HDD/SSD bays
SATA Per node:
4 x SATA III 6Gb/s ports
SAS -
RAID Intel® SATA RAID 0/1/10/5
Peripheral Drives -
Expansion Slots Per node:
1 x PCIe x16 (Gen3 x16 bus) slot
Supports:
- Double slot cards up to 267mm length
- Cards up to 225W TDP
Internal I/O Per node:
1 x 24-pin ATX main power connector
1 x 4-pin power connector
4 x SATA III 6Gb/s ports
1 x Mini-SAS HD port
1 x CPU fan header
3 x System fan headers
1 x USB 3.0 header
1 x Front VGA header
1 x TPM header
1 x Front panel header
1 x JTAG PLD header
1 x Chassis intrusion header
1 x Power DET header
1 x IPMB connector
Front I/O Per node:
1 x VGA
1 x Power button with LED
1 x ID button with LED
1 x NMI LED
Rear I/O Per node:
1 x Serial
1 x VGA
1 x ID button with LED
1 x Power button with LED
1 x Reset button
1 x NMI button
2 x RJ45
2 x USB 3.0
Backplane I/O 4 x SATA III 6Gb/s ports
TPM 4 x TPM headers
Power Supply 2 x 1600W PSU
80 PLUS Platinum

AC input:
- 100-127V/ 12A, 47-63Hz
- 200-240V/ 9.48A, 47-63Hz
DC output:
- 1000W@100-127V
- 1600W@200-240V
System Management Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
-Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
OS Compatibility Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016
RHEL 7.2 (x64)
Ubuntu 12.04 LTS x64
Ubuntu 14.04 LTS x64
SUSE Linux Enterprise Server 11.4 x64
SUSE Linux Enterprise Server 12 x64
VMware 5.5 U3 (x64)
VMware 6.0 U1 (x64)
Weight 32.6kg
System Fans Per node:
4 x 40x40x56mm
1 x 38x38x48mm
Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions 1123 x 712 x 244 mm
Packaging Content 1 x G211-H4G
1 x Rail kit
1 x Quick start guide
4 x Heatsinks
Part Numbers Barebone package: 6NG211H4GMR-00
Power Supply: 25EP0-216003-D0S
Rail kit: 25HB2-A86100-K0R
Heatsink: 25ST1-243207-A8R
