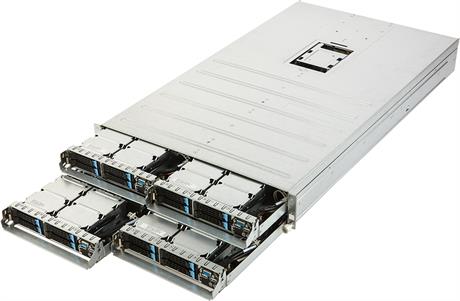

Dimensions (WxHxD, mm) |
2U
447 x 87.2 x 780 |
Motherboard |
4 x GA-6LISL |
CPU |
Supports Intel® Xeon® processor E3-1200 V3 & V4 product families
Supports 4th gen Intel® Core™ i3, Pentium® and Celeron® processors*
*If used with non-ECC memory, supported on client OS only. If used with ECC memory, supported on both client and server OS. |
Socket |
Per node:
1 x LGA 1150Total:
4 x LGA 1150
4 x CPU heatsinks included |
Chipset |
Per node:
Intel® C226 |
Memory |
Per node:
2 x DIMM slotsTotal:
8 x DIMM slots
Supports unbuffered ECC or non-ECC UDIMM modules
Supports single rank and dual rank UDIMM modules
Up to 16GB
1333/1600/(1866*) MHz*Supported by Intel® Xeon® E3-1200 V4 processors only |
LAN |
Per node:
2 x GbE LAN ports (Intel® I210-AT) |
Video |
Per node:
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp |
Audio |
- |
Storage |
Per node:
4 x 2.5" hot-swappable HDD/SSD baysTotal:
16 x 2.5" hot-swappable HDD/SSD bays |
SATA |
Per node:
5 x SATA III 6Gb/s portsTotal:
20 x SATA III 6Gb/s ports |
SAS |
- |
RAID |
Intel® SATA RAID 0/1/10/5 |
Peripheral Drives |
- |
Expansion Slots |
Per node:
1 x PCIe x16 (Gen3 x16 bus) slotTotal:
4 x PCIe x16 (Gen3 x16 bus) slots
Supports:
NVIDIA GRID K340
AMD FirePro S9150
|
Internal I/O |
Per node:
1 x Front panel VGA header
1 x 24-pin ATX main power connector
1 x 4-pin 12V auxiliary power connector
1 x PCIe x16 and x8 bandwidth switch jumper
1 x CPU fan header
1 x Front panel header
3 x System fan headers
1 x PMBus connector
1 x USB 3.0 header
1 x USB 2.0 header
1 x SATA port 4 DOM support jumper
1 x Case open intrusion header
1 x Battery power cable connector
5 x SATA III 6Gb/s ports
1 x SATA SGPIO header
1 x Clear CMOS jumper
1 x ME update jumper
1 x BIOS recovery jumper
1 x BMC readiness LED
1 x IPMB connector
1 x TPM header |
Front I/O |
Per node:
2 x USB 3.0
1 x VGA
1 x Power button with LED
1 x ID button with LED
1 x NMI LED
1 x BMC reset LED
1 x System status LEDTotal:
8 x USB 3.0
4 x VGA
4 x Power buttons with LED
4 x ID buttons with LED
4 x NMI LEDs
4 x BMC reset LEDs
4 x System status LEDs |
Rear I/O |
Per node:
2 x USB 2.0
1 x VGA
1 x Serial
2 x RJ45
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset buttonTotal:
8 x USB 2.0
4 x VGA
4 x Serial
8 x RJ45
4 x Power buttons with LED
4 x ID buttons with LED
4 x NMI buttons
4 x Reset buttons |
Backplane I/O |
4 x SATA III 6Gb/s ports |
TPM |
1 x TPM header |
Power Supply |
2 x 1600W PSU
80 PLUS Platinum
AC input:
- 100-127V/ 12A, 47-63Hz
- 200-240V/ 9.48A, 47-63Hz
DC output:
- 1000W@100-127V
- 1600W@200-240V |
System Management |
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)
|
OS Supported |
Windows Server 2012 R2 (x64)
Windows Server 2008 R2 (x64)
Red Hat Enterprise Linux 5.9 (x86/x64)
Red Hat Enterprise Linux 6.4 (x86/x64)
SUSE Linux Enterprise Server 11.3 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2 |
Weight |
32.6kg |
System Fans |
Per node:
4 x 40x40x56mm
1 x 38x38x48mmTotal:
16 x 40x40x56mm
4 x 38x38x48mm |
Operating Properties |
Operating temperature: 5°C to 30°C
Non-operating temperature: 0°C to 40°C
10-80% operating humidity at 30°C |
Part Numbers |
Rackmount: 6NR21FDNR-00
Rail kit: 25HB2-A86100-K0R
Heatsink: 12SP2-040091-00R |
Packaging Dimensions |
1050x591x218 mm |
Packaging Content |
1 x Rackmount
1 x Rail kit
1 x Driver CD
1 x Manual
4 x Heatsinks |
