| Dimensions (WxHxD, mm) |
2U
447 x 87.2 x 780 (mm) |
| Motherboard |
MT70-HD0 |
| CPU |
Per node:
2 x Cavium® ThunderX™ ARM processors
64bit ARMv8 architecture
48 cores per processor, 2.0GHz
BGA 2601, 28nm technologyTotal:
8 x Cavium® ThunderX™ ARM processors
Total 384 cores |
| Chipset |
- |
| Memory |
Per node:
16 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
Up to total 2TB memory capacity
1866 MHz with 2DPC for Single Rank or Dual Rank RDIMMs / ECC UDIMMs
2133 MHz with 1DPC for Single Rank or Dual Rank RDIMMs / ECC UDIMMs
Total:
64 x DIMM slots
Up to total 8TB memory capacity |
| LAN |
Per node:
2 x 40GbE QSFP+ LAN ports
1 x 10/100/1000 management LAN portTotal:
8 x 40GbE QSFP+ LAN ports
4 x 10/100/1000 management LAN ports |
| Video |
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp |
| Audio |
- |
| Storage |
Per node:
4 x 2.5" hot-swappable HDD/SSD baysTotal:
16 x 2.5" hot-swappable HDD/SSD bays |
| SAS |
- |
| RAID |
Depends on OS RAID |
| Peripheral Drives |
- |
| Expansion Slots |
Per node:
1 x Half-length low-profile slot with PCIe x16 (Gen3 x8 bus) connector
1 x Mezzanine PCIe x8 (Gen3 x8 bus) connectorTotal:
4 x Half-length low-profile slots with PCIe x16 (Gen3 x8 bus) connectors
4 x Mezzanine PCIe x8 (Gen3 x8 bus) connectors |
| Internal I/O |
Per node:
2 x 18-pin power connectors
4 x SATA III 6Gb/s ports (1 with SATA DOM supported)
1 x SATA SGPIO header
1 x SATA DOM header
1 x USB 3.0 header
1 x COM2 header
1 x Case open connector
1 x PMBUS connector
1 x Clear CMOS header
1 x IPMB connector |
| Front I/O |
Per node:
2 x USB 3.0
1 x VGA
1 x Power button with LED
1 x ID button with LEDTotal:
8 x USB 3.0
4 x VGA
4 x Power buttons with LED
4 x ID buttons with LED |
| Rear I/O |
Per node:
2 x USB 3.0
1 x VGA
1 x COM1
2 x QSFP+
1 x RJ45
1 x Power button with LED
1 x ID button with LED
1 x System reset button
1 x System status LED
2 x LAN activity LEDs
2 x LAN link status LEDsTotal:
8 x USB 3.0
4 x VGA
4 x COM1
8 x QSFP+
4 x RJ45
4 x Power button with LED
4 x ID button with LED
4 x System reset button
4 x System status LED
8 x LAN activity LEDs
8 x LAN link status LEDs |
| Backplane I/O |
Speed and bandwidth:
SAS 12Gb/s
SATA 6Gb/s |
| TPM |
- |
| Power Supply |
2 x 1600W redundant PSU
80 PLUS Platinum
100~230V AC |
| System Management |
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)
|
| OS Supported |
Ubuntu 16.04 64bit
Ubuntu 14.04 64bit
Fedora 21 64bit
CentOS 7.1 64bit |
| Weight |
38kg |
| System Fans |
16 x 40x40x56mm (23’000rpm) |
| Operating Properties |
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing) |
| Part Numbers |
Rackmount: 6NH270T70MR-00
Motherboard: 9MT70HD0NR-00
Power supply: 25EP0-216004-D0S
Rail Kit: 25HB2-A86100-K0R |
| Packaging Dimensions |
1133 x 724 x 261 (mm) |
| Packaging Content |
- 1 x H270-T70
- 1 x Quick Installation Guide
- Rail kit |

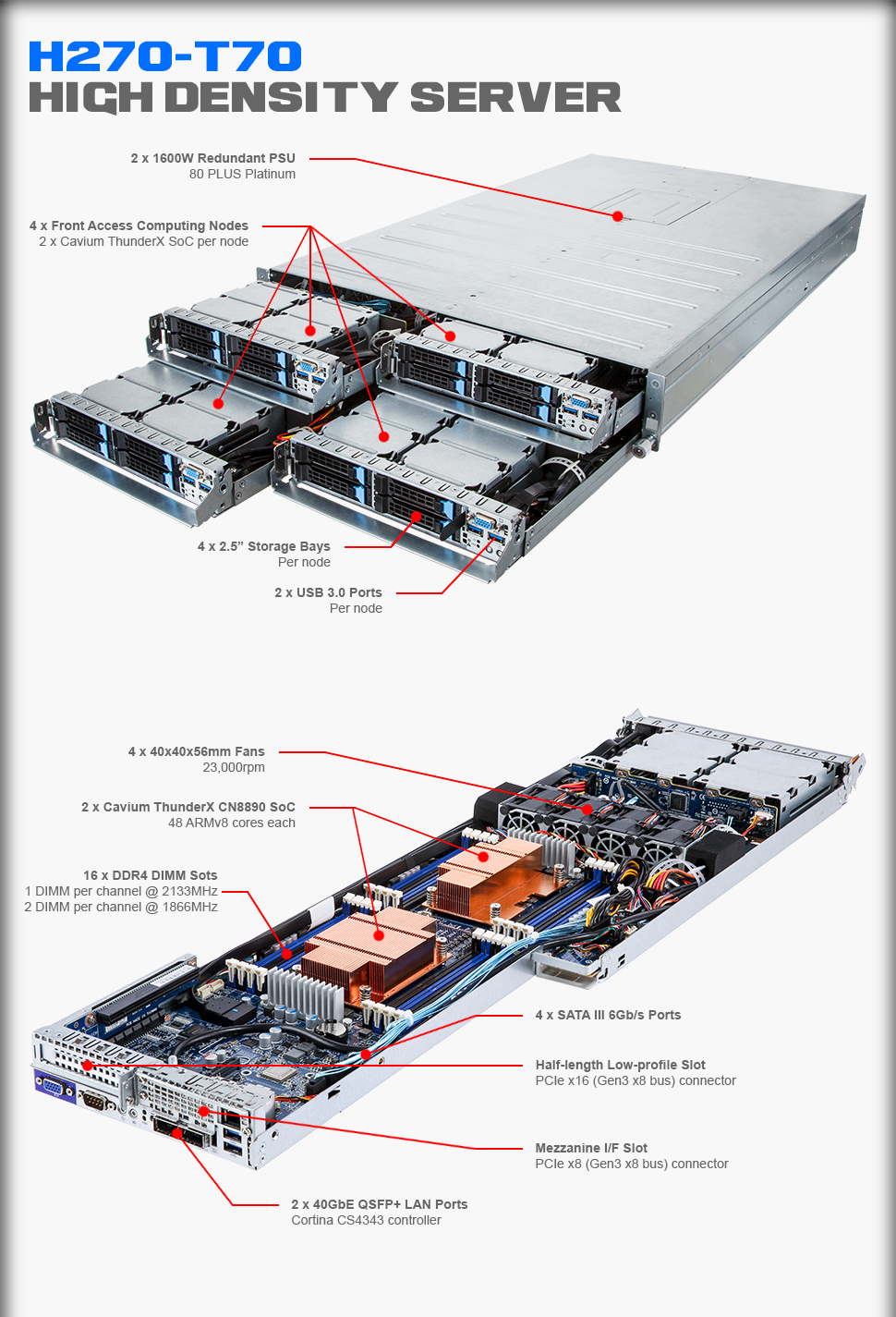

![](/admin/imgs/gigabyte/H270-T70.jpg?9.1438537098384")
