| Dimensions (WxHxD, mm) |
1U
438 x 43.5 x 860 |
| Motherboard |
ML00-AR0 |
| CPU |
Annapurna Labs® Alpine AL514 processor
ARMv7 architecture
Cortex-A15 quad-core, 1.7GHz |
| Memory |
1 x DIMM slot
RDIMM/ECC-UDIMM modules supported
1600 MHz DDR3/DDR3L memory supported
Support 1Rx8 / 1Rx16 memory modules (max. 4GB)
Support 2Rx8 / 2Rx16 memory modules (max. 8GB)4GB DDR3L memory pre-installed |
| LAN |
2 x 10GbE SFP+ LAN ports (integrated)
2 x GbE LAN ports (Atheros® AR8035)
1 x 10/100/1000 management LAN |
| Storage |
16 x 3.5” easy swappable HDD bays
Supports SATA III 6Gb/s |
| RAID |
RAID 0/1/5/6/10/50/60 |
| Front I/O |
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x LAN LED
16 x HDD location LEDs
1 x HDD access LED |
| Rear I/O |
2 x SFP+
3 x RJ45
1 x Micro USB
1 x Power button with LED
1 x System status LED |
| Power Supply |
1 x 400W PSU
80 PLUS Gold
100~240V AC |
| Storage Pool |
Dedicated hot spare disks
Multiple RAID groups
Auto volume rebuilding
Online pool expansion
Offline pool roaming
Instant ready (zero RAID init time)
Fast rebuild |
| Data Service |
SMB 3.0
NFS v3/v4
AFP 3.4
FTP/SFTP
WebDAV
iSCSI target |
| Directory Services |
Microsoft AD
Windows ACL
LDAP
UnifiedAUTH
Supports Chinese share naming |
| Storage Efficiency |
Thin provisioning
Compression |
| Networking |
IPv6
DHCP or static IP address assignment
NTP client
Jumbo frame
Trunking & LACP & teaming
VLAN tagging
WINS client
Loopback |
| Data Protection |
File-level snapshot
Block-level snapshot
Rsync
Remote replication
Local clone
Amazon S3 Cloud backup |
| Host OS Support |
Windows 7 / 8.1 / 10
Red Hat Enterprise Linux
Solaris 10 or later
Mac OS X |
| Weight |
Barebone: 11.4 kg (without drives)
Barebone with packaging: 19.4 kg (without drives) |
| System Fans |
5 x 40x40x28mm (18’000rpm) |
| Operating Properties |
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing) |
| Part Numbers |
Barebone with rail kit: 6ND120S3GMR-00
Rail kit: 25HB2-3A0201-C0R
Memory module: 25SD5-6004G2-I0R
Fan module: 25ST2-442826-D0R
Power supply: 25EP0-20400H-D0S |
| Packaging Dimensions |
1141 x 745 x 259 mm |
| Packaging Content |

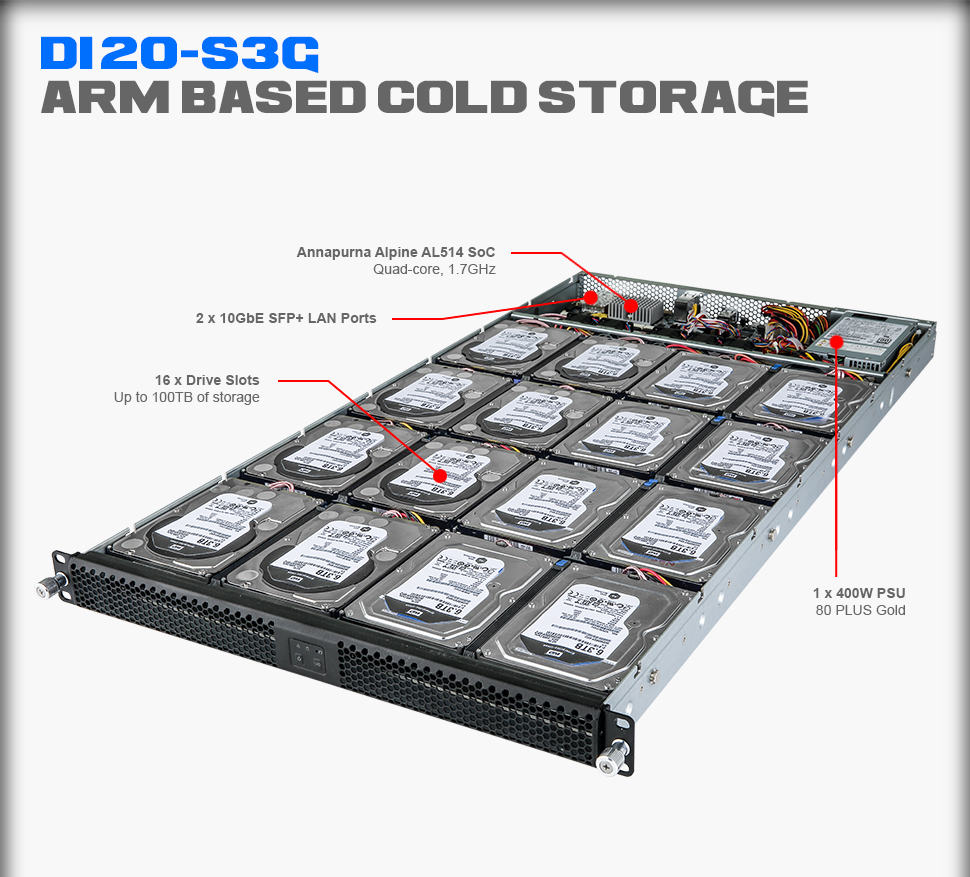

1 x D120-S3G
1 x Rail kit
1 x HDD remove tool |
