| Dimensions (WxHxD, mm) |
1U
430 x 43.5 x 710 |
| Motherboard |
MD50-LS0 |
| CPU |
Intel® Xeon® E5-2600 V3 processors
Intel® Xeon® E5-2600 V4 processorsNOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable. |
| Socket |
2 x LGA 2011-3
Mounting pitch: square ILM (80x80mm)Max. length of M4 screw threads: 3.7mmScrews longer than 3.7mm might damage the motherboard |
| Chipset |
Intel® C612 |
| Memory |
8 x DIMM slotsDDR4 memory supported only
Quad channel memory architecture
ECC RDIMM / LRDIMM modules supported
Single and dual rank RDIMM modules up to 32GB supported
Quad rank LRDIMM modules up to 64GB supported
1.2V modules: 1600/1866/2133 MHz |
| LAN |
4 x GbE LAN ports (Intel® I210)
1 x 10/100/1000 management LAN |
| Video |
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp |
| Audio |
- |
| Storage |
4 x 3.5" hot-swappable HDD/SSD bays
2.5" HDD supported |
| SATA |
9 x SATA III 6Gb/s ports
1 x SATA III 6Gb/s ports supporting SATA DOM |
| SAS |
8 x SAS 6Gb/s ports (disabled, can be enabled with the CRA220-8 add-on card) |
| RAID |
Intel® SATA RAID 0/1/10/5 |
| Peripheral Drives |
1 x Slim type ODD in option |
| Expansion Slots |
1 x Half-length full-height slot
1 x PCIe x16 (Gen3 x16 bus) connector |
| Internal I/O |
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
8 x SAS 6Gb/s ports
10 x SATA III 6Gb/s ports
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x Serial header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x JTAG PLD header
1 x BMC JTAG header
1 x Chassis intrusion header
2 x SAS SGPIO headers
2 x SATA SGPIO headers
1 x Software RAID jumper
1 x SATA DOM jumper
1 x BIOS password recovery jumper
1 x BIOS recovery jumper
1 x Clear CMOS jumper
1 x ME recovery jumper
1 x ME update jumper
1 x S3 mask jumper
1 x BMC FRB jumper
1 x PMBus connector
1 x IPMB connector |
| Front I/O |
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
4 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED |
| Rear I/O |
4 x USB 3.0
2 x USB 2.0
1 x PS/2
1 x VGA
1 x Serial
5 x RJ45
1 x ID button with LED |
| Backplane I/O |
4 x SAS/SATA 6Gb/s ports |
| TPM |
1 x TPM header |
| Power Supply |
1 x 600W PSU
80 PLUS Gold
AC input:
- 100-127V/ 9A, 50-60Hz
- 200-240V/ 5A, 50-60Hz
DC output:
- 600W |
| System Management |
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)
|
| OS Supported |
Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1 |
| Weight |
10 kg |
| System Fans |
4 x 40x40x56mm (23'000rpm)
2 x 40x40x28mm (18'000rpm) |
| Operating Properties |
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing) |
| Packaging Dimensions |
944 x 570 x 218 mm |
| Packaging Content |

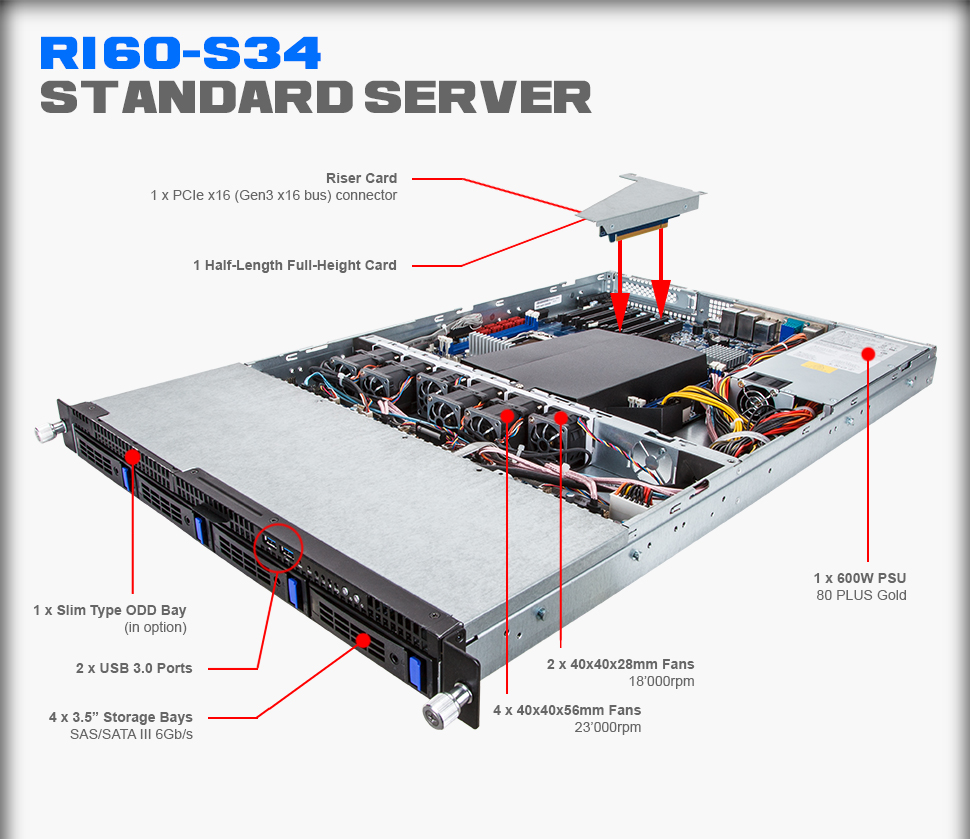

1 x R160-S34
1 x Driver CD
2 x CPU heatsinks
1 x Rail kit |
| Part Numbers |
Barebone package: 6NR160S34MR-00Spare parts:
- Rail kit: 25HB2-086300-I0R
- CPU heatsink: 25ST1-443202-T4R
- Back plane board: 9CBP1040NR-00
- Power supply: 25EP0-206001-D0S
- Screws for 1 x HDD: 25KSD-130041-S0R
- Riser card - CRS1011: 9CRS1011NR-00 |
