| Dimensions (WxHxD, mm) |
2U
430 x 87 x 712.4 |
| Motherboard |
MD90-FS0 |
| CPU |
Intel® Xeon® E5-2600 V3 processors
Intel® Xeon® E5-2600 V4 processors
NOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable. |
| Socket |
2 x LGA 2011-3
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard |
| Chipset |
Intel® C612 |
| Memory |
24 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
ECC RDIMM / LRDIMM modules supported
Single and dual rank RDIMM modules up to 32GB supported
Quad rank LRDIMM modules up to 64GB supported
1.2V modules: 1600/1866/2133 MHz |
| LAN |
2 x GbE LAN ports (Intel® I350-BT2)
1 x 10/100/1000 management LAN |
| Video |
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp |
| Audio |
- |
| Storage |
12 x 3.5" hot-swappable bays
2.5" drives supported, screws are optional parts
Default configuration:
- 4 x NVMe bays
- 8 x SATA bays
(SAS via third party HBA) |
| SATA |
Total 10 x SATA III 6Gb/s ports
2 x Mini-SAS (for 8 x SATA III 6Gb/s ports)
2 x SATA III 6Gb/s ports |
| SAS |
- |
| RAID |
Intel® SATA RAID 0/1/10/5 |
| Peripheral Drives |
- |
| Expansion Slots |
6 x Full-length full-height slots
2 x Half-length full-height slots
1 x PCIe mezzanine type T (Gen3 x8 bus) slot
3 x riser cards:
- 1 x CRS2120
- 1 x CRS2121
- 1 x CRS2140 |
| Internal I/O |
1 x 14-pin ATX main power connector
3 x 8-pin ATX 12V power connectors
3 x 4-pin ATX 12V power connectors
2 x Mini-SAS ports
2 x SATA III 6Gb/s ports
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x Front panel header
1 x HDD back plane board header
1 x Chassis intrusion header
1 x PLD header
1 x TPM header
1 x JTAG header
1 x ME update jumper
1 x ME recovery jumper
1 x Clear CMOS jumper
1 x S3 mask jumper
1 x BMC RFB jumper
1 x IPMB connector |
| Front I/O |
1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
1 x Reset button |
| Rear I/O |
2 x USB 3.0
2 x USB 2.0
3 x RJ45
1 x VGA
1 x Serial
1 x ID button with LED |
| Backplane I/O |
4 x NVMe ports
8 x SATA III 6Gb/s ports |
| TPM |
1 x TPM header |
| Power Supply |
2 x 800W redundant PSUs
80 PLUS Platinum
AC input:
- 100-127V/ 9.9A, 47-63Hz
- 200-240V/ 4.79A, 47-63Hz
DC output:
- 800W |
| System Management |
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
-Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration) |
| OS Supported |
Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1 |
| Weight |
17 kg |
| System Fans |
4 x 80x80x38mm (14'900rpm) |
| Operating Properties |
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing) |
| Packaging Dimensions |
982 x 588 x 268 mm |
| Packaging Content |

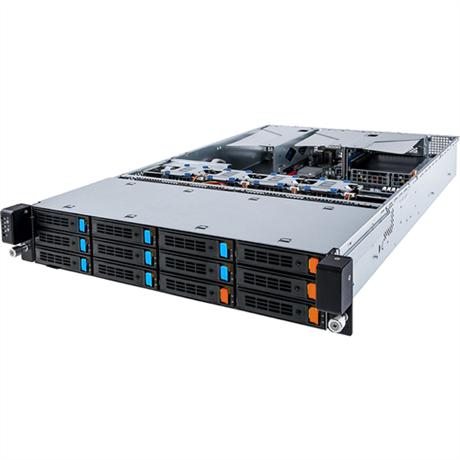

1 x R28N-F3C
2 x CPU heatsinks
1 x Rail kit |
| Part Numbers |
Barebone package: 6NR28NF3CMR-00
Spare parts:
- Rail kit: 25HB2-3A6803-I0R
- CPU heatsink: 25ST1-353200-T4R
- Back plane board: 9CBP20C1NR-00
- Power supply: 25EP0-208000-D0S
- NVMe card: 9CNV3114NR-00
- Screws for 1 x 2.5" HDD: 25KSD-130041-S0R
- Riser card - CRS2140: 9CRS2140NR-00
- Riser card - CRS2120: 9CRS2120NR-00
- Riser card - CRS2121: 9CRS2121NR-00 |
