| Dimensions (WxHxD, mm) |
1U
438 x 43.5 x 867 |
| Motherboard |
MB10-DS3 |
| CPU |
Intel® Xeon® D-1541 processor
2.1 - 2.7 GHz
8 cores, 16 threads
12MB cache
45W TDP |
| Socket |
1 x FCBGA 1667 |
| Chipset |
- |
| Memory |
4 x DIMM slots
Supports 1.2V DDR4 memory
Single & dual rank modules supported
ECC & non-ECC UDIMM modules supported
RDIMM supported up to 32GB per module
UDIMM supported up to 16GB per module
1600/1866/2133/2400 MHz |
| LAN |
2 x 10GbE SFP+ LAN ports (Cortina® CS4227)
2 x GbE LAN ports (Intel® I210)
1 x 10/100/1000 management LAN |
| Video |
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp |
| Audio |
- |
| Storage |
16 x 3.5” easy swappable HDD/SSD slots
Supports SATA III 6Gb/s
Drives excluded |
| SATA |
Supported, SATA 6Gb/sPlease purchase Enterprise SATA hard drives, refer to QVL document for more details |
| SAS |
- |
| RAID |
- |
| Peripheral Drives |
- |
| Expansion Slots |
1 x PCIe x16 (Gen3 x16 bus) connector
Half-length low-profile typeThe slot is occupied by CSA313-G |
| Internal I/O |
- |
| Front I/O |
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x LAN LED
16 x HDD location LEDs
1 x HDD access LED |
| Rear I/O |
2 x SFP+
3 x RJ45
1 x Micro USB
1 x Power button with LED
1 x System status LED |
| Backplane I/O |
- |
| TPM |
1 x TPM header |
| Power Supply |
1 x 400W PSU
80 PLUS Gold
100~240V AC |
| System Management |
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)
|
| OS Supported |
Windows Server 2008 R2
Windows Server 2012 R2
Red Hat Enterprise Linux 7.1 (x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 14.04.2 LTS
Fedora 22
CentOS 7.1 |
| Weight |
12kg (without drives) |
| System Fans |
5 x 40x40x28mm (18’000rpm) |
| Operating Properties |
Operating temperature: 10°C to 35°C
Properties Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing) |
| Packaging Dimensions |
1141 x 745 x 259 mm |
| Packaging Content |

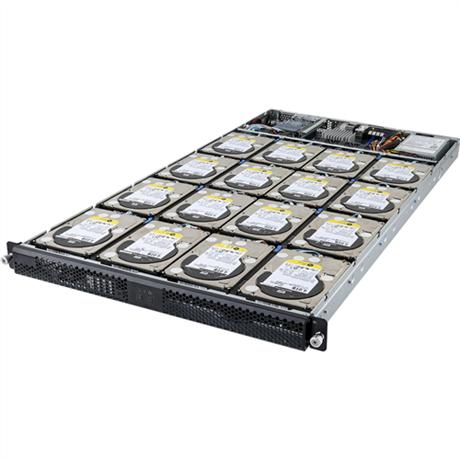

1 x D120-C20
1 x Quick Installation Guide
1 x Rail kit
1 x HDD remove tool |
| Part Numbers |
Barebone with rail kit package: 6ND120C20MR-00Spare parts:
- Notherboard: 9MB10DS3NR-SI
- Hard Driver HBA: 9CSA313GNR-00
- Power Supply: 25EP0-20400H-D0S |
