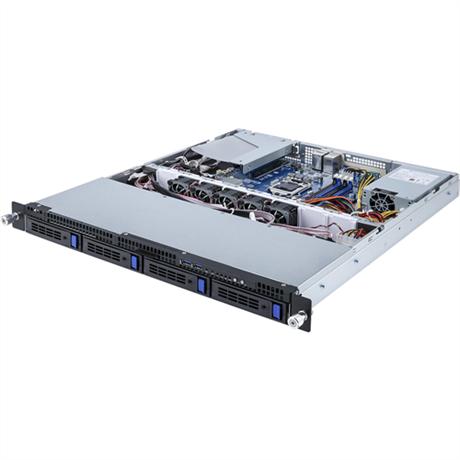

R121-X30 (rev. 100)

製品種別 サーバ
CPUソケット数
CPU 　
　
筐体サイズ
最大GPU数
電源仕様
用途/特長
製品説明

製品仕様

Dimensions (WxHxD, mm) 1U
430 x 43.5 x 533.4 mm
Motherboard MX31-BS0
CPU Supports Intel® Xeon® processor E3-1200 V6/V5 product family
Supports 7th/ 6th Gen Intel® Core™ i3 processors, Intel® Celeron® processors, Intel® Pentium® processors
Socket 1 x LGA 1151
Chipset Intel® C232
Memory 4 x DIMM slots
Dual channel memory architecture
Supports 1.2V DDR4 memory
ECC UDIMM modules supported
Up to 64GB
Supported speeds: 2400/2133 MHz
LAN 2 x GbE LAN ports (Intel® I210)
Video Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio -
Storage 4 x 3.5" hot-swappable HDD/SSD bays
SATA Onboard 6 x SATA III 6Gb/s ports
SAS Supported via add-on SAS Card
RAID Intel® SATA RAID 0/1/10/5
Peripheral Drives -
Expansion Slots 1 x Half-length full-height slot
1 x PCIe x16 (Gen3 x16 bus) connector
1 x M.2 (Gen3 x1 bus) slot:
- PCIe signal only
- M-key
- Max. width: 22mm
- Max. length: 80mm
Internal I/O 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA III 6Gb/s ports
1 x USB 2.0 vertical port
1 x CPU fan header
4 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x S/PDIF-Out header
1 x S/PDIF-In header
1 x Serial header
1 x TPM header
1 x SATA SGPIO header
2 x SATA DOM headers
1 x Front panel header
1 x JTAG PLD header
1 x JTAG BMC header
1 x Chassis intrusion header
1 x Vboot selection jumper
1 x BIOS recovery jumper
1 x ME recovery jumper
1 x ME update jumper
1 x Force EN jumper
1 x SMBus selection jumper
1 x Clear CMOS jumper
1 x BIOS password jumper
1 x M3 mask jumper
1 x IPMB connector
1 x PMBus connector
Front I/O 2 x USB 3.0
1 x Power button
1 x Reset button
1 x NMI button
1 x ID button with LED
1 x System status LED
1 x HDD LED
4 x LAN LEDs
Rear I/O 1 x Serial
1 x VGA
2 x RJ45
2 x USB 2.0
2 x USB 3.0
Backplane I/O 4 x SAS/SATA ports

SAS card is required for SAS devices support
TPM 1 x TPM header
Power Supply 1 x 250W PSU
80 PLUS Bronze

AC input:
- 100-127V/ 9A, 50-60Hz
- 200-240V/ 5A, 50-60Hz

DC output:
- 250W
System Management Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
  • Network settings
  • Network security settings
  • Users control
  • Services settings
  • IPMI settings
  • Sessions control
  • LDAP settings
  • Power control
  • Voltages, fans and temperatures monitoring
  • System event log
  • Events management (platform events, trap settings, email settings)
  • Serial Over LAN
  • vKVM & vMedia (launch, configuration)
OS Compatibility Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016
RHEL 7.2 (x64)
Ubuntu 12.04 LTS x64
Ubuntu 14.04 LTS x64
SUSE Linux Enterprise Server 11.4 x64
SUSE Linux Enterprise Server 12 x64
VMware 5.5 U3 (x64)
VMware 6.0 U1 (x64)
Weight 7.5kg
System Fans 5 x 40x40x28mm (18'000rpm)
Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions 815 x 588 x 250 mm
Packaging Content 1 x R121-X30
1 x Quick Start Guide
1 x CPU Heat Sink
1 x Rail kit
Part Numbers Barebone package: 6NR121X30MR-SI
Spare parts:
- Tool-less rail kit: 25HB2-3A6101-K0R
- CPU heatsink: 25ST1-253200-J1R
- Back plane board: 9CBP1040NR-00
- Power supply: 25EP0-202502-F3S
- Riser card - CRS1011: 9CRS1011NR-00
