製品情報

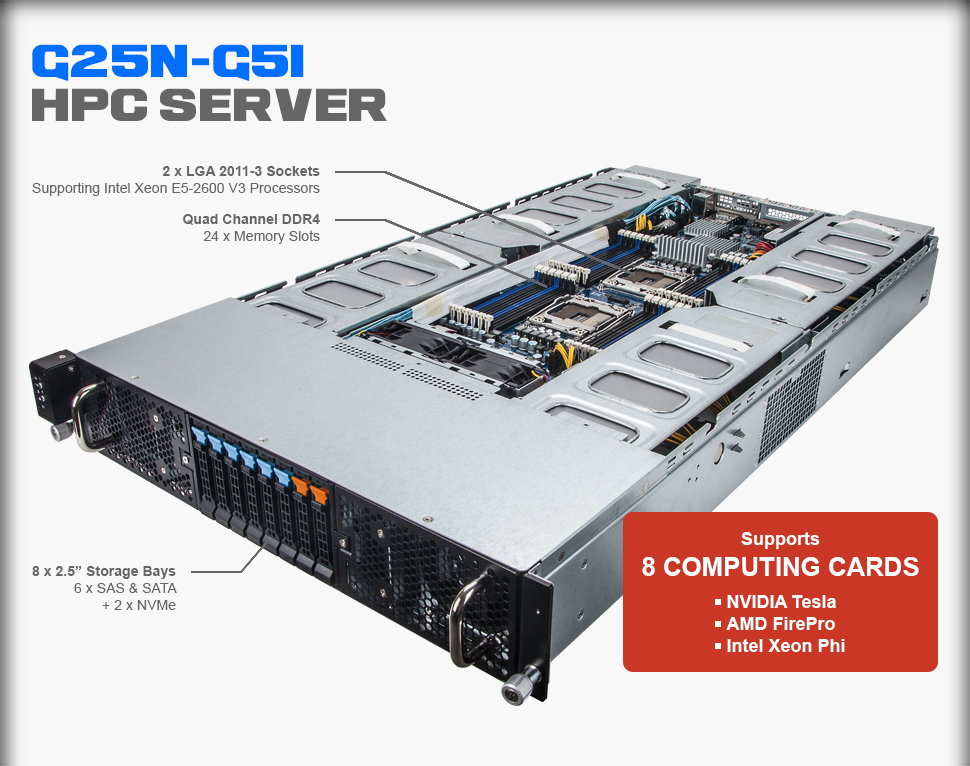

G25N-G51 (rev. 100)

製品種別 サーバ
CPU

筐体サイズ
電源仕様
用途/特長
製品説明

製品仕様

Dimensions (WxHxD, mm) 2U 448 x 87.5 x 800
Motherboard MG50-G20
CPU Intel® Xeon® E5-2600 V3 processors Intel® Xeon® E5-2600 V4 processorsNOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable.
Socket 2 x LGA 2011-3 Mounting pitch: narrow ILM (56x94mm)Max. length of M4 screw threads: 3.7mmScrews longer than 3.7mm might damage the motherboard
Chipset Intel® C612
Memory 24 x DIMM slotsDDR4 memory supported only Quad channel memory architecture ECC RDIMM / LRDIMM modules supported Single and dual rank RDIMM modules up to 32GB supported Quad rank LRDIMM modules up to 64GB supported 1.2V modules: 1600/1866/2133 MHz
LAN 2 x 10GbE SFP+ ports (Intel® 82599ES) 1 x 10/100/1000 management LAN 2 x QSFP+ ports (supporting 56Gb/s FDR InfiniBand or 40GbE) card (Mellanox® MT27508A1-FCCR-FV) in option (GC-MNXE2) 2 x 10Gb/s SFP+ LAN card (Mellanox® MT27518A1-FCCR-XE) in option (GC-MNXE20)
Video Integrated in Aspeed® AST2400 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp
Storage 2 x 2.5" hot-swappable NVMe bays 6 x 2.5" hot-swappable HDD/SSD bays
SAS GC-MSLZ1 expansion card in option: 2 x Mini-SAS (for 8 x SAS 6Gb/s ports) LSI® SAS2208 controller Hardware RAID 0/1/5/6/10/50/60 Hardware RAID 5/6 XOR Engine (single pass) Low profile PCIe 2.0 x8 mezzanine connector 76.8 x 98 mm
SATA 10 x SATA III 6Gb/s ports
RAID Intel® SATA RAID 0/1/5/10
Peripheral Drives -
Expansion Slots 8 x PCIe x16 (Gen3 x16 bus) connectors supporting: Intel® Xeon Phi cards NVIDIA® cards AMD® cards Please contact us for details about the supported card models 1 x Half-length low-profile slot 1 x PCIe x16 (Gen3 x8 bus) connector 1 x Proprietary PCIe x8 (Gen3 x8 bus) mezzanine connector
Front I/O 1 x Power button with LED 1 x ID button with LED 2 x LAN activity LEDs 1 x HDD activity LED 1 x System status LED 1 x Reset button
Rear I/O 2 x USB 3.0 1 x VGA 1 x Serial 2 x SFP+ 1 x RJ45 1 x Power button with LED 1 x ID button with LED 1 x Reset button 1 x NMI button 1 x System status LED
Internal I/O 1 x 18-pin power connector 1 x 14-pin power connector 2 x 8-pin power connectors 2 x 4-pin power connectors 10 x SATA III 6Gb/s ports 1 x USB 3.0 header 1 x USB 2.0 header 1 x TPM header 1 x HDD back plane board header 1 x 12-pin front panel header 1 x 23-pin front panel header 1 x JTAG header 2 x SATA SGPIO headers 1 x Front VGA header 1 x Serial header 1 x IPMB connector 1 x P12V standby connector 1 x PMBus selection jumper 1 x Clear CMOS jumper 1 x LT debug jumper
Backplane I/O 8 x SAS/SATA 6Gb/s ports
TPM 1 x TPM header
Power Supply 2 x 2000W redundant PSU 80 PLUS Platinum AC input: - 1000W: 100-120V/ 12.5-10.5A, 50-60Hz - 1800W: 200-220V/ 10-9.5A, 50-60Hz - 1980W: 220-230V/ 10-9.8A, 50-60Hz - 2000W: 230-240V/ 10-9.8A, 50-60Hz DC output: - 11000W@100-120V - 1800W@200-220V - 1980W@220-230V - 2000W@200-240V
System Management Aspeed® AST2400 management controller Avocent® MergePoint IPMI 2.0 web interface:Network settings Network security settings Users control Services settings IPMI settings Sessions control LDAP settings Power control Voltages, fans and temperatures monitoring System event log Events management (platform events, trap settings, email settings) Serial Over LAN vKVM & vMedia (launch, configuration)
OS Supported Windows Server 2008 R2 (x64) Windows Server 2012 (x64) Windows Server 2012 R2 (x64) Red Hat Enterprise Linux 6.7 (x86/x64) Red Hat Enterprise Linux 7.2 (x64) SUSE Linux Enterprise Server 11.4 (x86/x64) SUSE Linux Enterprise Server 12 (x64) Ubuntu 12.04 LTS (x86/x64) Ubuntu 14.04 LTS (x86/x64) VMware ESXi 5.1 U2 VMware ESXi 5.5 U2 VMware ESXi 6.0 U1
Weight 23.5 kg
System Fans 8 x 80x80x38mm (15000rpm)
Operating Properties Operating temperature: 10°C to 35°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing)
Part Numbers Barebone with rail kit: 6NG25NG51MR-00 Rail kit: 25HB2-A86100-K0R Power supply: 25EP0-220000-C2S NVMe card: 9CNV6012NR-00 NVIDIA M60/K80 power cable: 25CRI-300307-B0R (in option)
Packaging Content 1 x G25N-G51 2 x CPU heat sinks 1 x Rail Kit
