| Dimensions (WxHxD, mm) |
2U
447 x 87.2 x 780 |
| Motherboard |
MH70-HD1 |
| CPU |
Intel® Xeon® E5-2600 V3 processors
Intel® Xeon® E5-2600 V4 processorsNOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable. |
| Socket |
Per node:
2 x LGA 2011-3Total:
8 x LGA 2011-3
Mounting pitch: narrow ILM (56x94mm)Max. length of M4 screw threads: 3.7mmScrews longer than 3.7mm might damage the motherboard |
| Chipset |
Intel® C612 |
| Memory |
Per node:
16 x DIMM slotsTotal:
64 x DIMM slotsDDR4 memory supported only
Quad channel memory architecture
ECC RDIMM / LRDIMM modules supported
Single and dual rank RDIMM modules up to 32GB supported
Quad rank LRDIMM modules up to 64GB supported
1.2V modules: 1600/1866/2133 MHz |
| LAN |
Per node:
2 x GbE LAN ports (Intel® I350-AM2)
1 x 10/100/1000 management LANTotal:
8 x GbE LAN ports (Intel® I350-AM2)
4 x 10/100/1000 management LAN |
| Video |
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp |
| Audio |
- |
| Storage |
Per node:
2 x 2.5" hot-swappable NVMe bays
2 x 2.5" hot-swappable SATA baysTotal:
8 x 2.5" hot-swappable NVMe bays
8 x 2.5" hot-swappable SATA bays |
| SATA |
Per node:
6 x SATA III 6Gb/s portsTotal:
24 x SATA III 6Gb/s ports |
| SAS |
- |
| RAID |
Intel® SATA RAID 0/1/5/10 |
| Peripheral Drives |
- |
| Expansion Slots |
Per node:
1 x Half-length low-profile slot with PCIe x16 (Gen3 x16 bus) connector
1 x Mezzanine PCIe x8 (Gen3 x8 bus) connectorTotal:
4 x Half-length low-profile slots with PCIe x16 (Gen3 x16 bus) connectors
4 x Mezzanine PCIe x8 (Gen3 x8 bus) connectors |
| Internal I/O |
Per node:
2 x 18-pin power connectors
1 x Mini-SAS connector
6 x SATA III 6Gb/s ports
1 x USB 3.0 header
1 x Serial header
1 x VGA header
1 x TPM header
1 x Front panel header
1 x SATA power header
1 x SATA SGPIO header
1 x BMC SGPIO header
1 x JTAG BMC header
1 x PLD header
1 x PMBUS header
1 x PMBUS selection jumper
1 x BMC FRB jumper
1 x Software RAID jumper
1 x Clear CMOS jumper
1 x Power on selection jumper
1 x ACK selection jumper
1 x IPMB connector |
| Front I/O |
Per node:
2 x USB 3.0
1 x VGA
1 x Power button with LED
1 x ID button with LEDTotal:
8 x USB 3.0
4 x VGA
4 x Power buttons with LED
4 x ID buttons with LED |
| Rear I/O |
Per node:
2 x USB 3.0
1 x VGA
1 x Serial
3 x RJ45
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED
2 x LAN activity LEDsTotal:
8 x USB 3.0
4 x VGA
4 x Serial
12 x RJ45
4 x Power buttons with LED
4 x ID buttons with LED
4 x NMI buttons
4 x Reset buttons
4 x System status LEDs
8 x LAN activity LEDs |
| Backplane I/O |
Per node:
2 x SAS/SATA 6Gb/s ports
2 x NVMe ports |
| TPM |
1 x TPM header |
| Power Supply |
2 x 1600W redundant PSU
80 PLUS Platinum
AC input:
- 100-127V/ 12A, 47-63Hz
- 200-240V/ 9.48A, 47-63Hz
DC output:
- 1000W@100-127V
- 1600W@200-240V |
| System Management |
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration) |
| OS Supported |
Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Red Hat Enterprise Linux 6.5 (x64)
Red Hat Enterprise Linux 6.6 (x64)
Red Hat Enterprise Linux 7.0 (x64)
SUSE Linux Enterprise Server 11 SP3 (x64)
SUSE Linux Enterprise Server 12 (x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 |
| Weight |
38kg |
| System Fans |
16 x 40x40x56mm (23’000rpm) |
| Operating Properties |
Operating temperature: 5°C to 35°C
Non-operating temperature: 0°C to 40°C
10-80% operating humidity at 30°C |
| Packaging Dimensions |
1133 x 724 x 261 mm |
| Packaging Content |

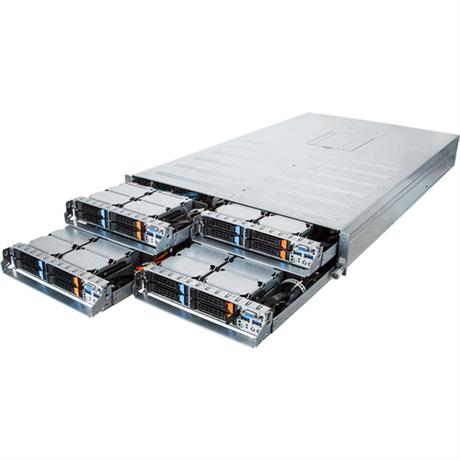

1 x H27N-H70
8 x CPU heatsinks
1 x Quick Installation Guide
1 x Rail kit |
| Part Numbers |
Barebone: 6NH27NH70MR-00
Spart parts:
- Rail kit: 25HB2-A86100-K0R
- CPU heatsink 1: 25ST1-443205-T4R
- CPU heatsink 2: 25ST1-443206-C1R
- Power supply: 25EP0-216003-D0S
- NVMe card: 9CNV6112NR-00 |
