Dimensions (WxHxD, mm) |
1U
430 x 43.5 x 710 |
Motherboard |
MD90-FS0 |
CPU |
Intel® Xeon® E5-2600 V3 processorsNOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable. |
Socket |
2 x LGA 2011-3
Mounting pitch: square ILM (80x80mm)Max. length of M4 screw threads: 3.7mmScrews longer than 3.7mm might damage the motherboard |
Chipset |
Intel® C612 |
Memory |
24 x DIMM slotsDDR4 memory supported only
Quad channel memory architecture
ECC RDIMM / LRDIMM modules supported
Single and dual rank RDIMM modules up to 32GB supported
Quad rank LRDIMM modules up to 64GB supported
1.2V modules: 1600/1866/2133 MHz |
LAN |
2 x GbE LAN ports (Intel® I350-BT2)
1 x 10/100/1000 management LAN |
Video |
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp |
Audio |
- |
Storage |
10 x 2.5" hot-swappable SAS/SATA bays |
SATA |
Total 10 x SATA III 6Gb/s ports
2 x Mini-SAS (for 8 x SATA III 6Gb/s ports)
2 x SATA III 6Gb/s ports |
SAS |
- |
RAID |
Intel® SATA RAID 0/1/5/10 |
Peripheral Drives |
- |
Expansion Slots |
2 x Half-length full-height slots
1 x Half-length low-profile slot or 1 x mezzanine card slot (PCIe mezzanine type T (Gen3 x8 bus) connector)
2 x riser cards:
- 1 x CRS1010
- 1 x CRS1020 |
Internal I/O |
1 x 14-pin ATX main power connector
3 x 8-pin ATX 12V power connectors
3 x 4-pin ATX 12V power connectors
2 x Mini-SAS ports
2 x SATA III 6Gb/s ports
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x Front panel header
1 x HDD back plane board header
1 x Chassis intrusion header
1 x PLD header
1 x TPM header
1 x JTAG header
1 x ME update jumper
1 x ME recovery jumper
1 x Clear CMOS jumper
1 x S3 mask jumper
1 x BMC RFB jumper
1 x IPMB connector |
Front I/O |
1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED |
Rear I/O |
2 x USB 3.0
2 x USB 2.0
3 x RJ45
1 x VGA
1 x Serial (RJ45)
1 x ID button with LED |
Backplane I/O |
10 x SAS/SATA 6Gb/s ports |
TPM |
1 x TPM header |
Power Supply |
2 x 800W redundant PSUs
80 PLUS Platinum
AC input:
- 100-127V/ 9.9A, 47-63Hz
- 200-240V/ 4.79A, 47-63Hz
DC output:
- 800W |
System Management |
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
-Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration) |
OS Supported |
Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Red Hat Enterprise Linux 6.5 (x64)
Red Hat Enterprise Linux 6.6 (x64)
Red Hat Enterprise Linux 7.0 (x64)
SUSE Linux Enterprise Server 11 SP3 (x64)
SUSE Linux Enterprise Server 12 (x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 |
Weight |
10 kg |
System Fans |
4 x 40x40x56mm (23'000rpm)
4 x 40x40x28mm (18'000rpm) |
Operating Properties |
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing) |
Packaging Dimensions |
959 x 588 x 248 mm |
Packaging Content |

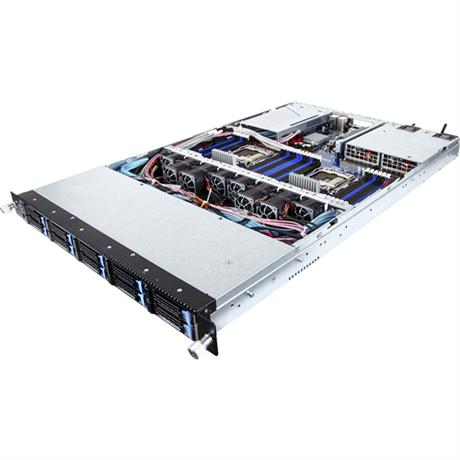

1 x R18N-F2A
1 x Quick start guide
2 x CPU heatsinks
1 x Rail kit |
Part Numbers |
Barebone package: 6NR180F2AMR-00
Spare parts:
- Rail kit: 25HB2-086300-I0R
- CPU heatsink: 25ST1-443202-T4R
- Back plane board: 9CBP10A0NR-00
- Power supply: 25EP0-208000-D0S
- Riser card - CRS1010: 9CRS1010NR-00
- Riser card - CRS1020: 9CRS1020NR-00 |
