| Dimensions (WxHxD, mm) |
2U
430 x 87 x 710 |
| Motherboard |
MD50-LS0 |
| CPU |
Supports:
Intel® Xeon® E5-2600 V3 processors
Intel® Xeon® E5-1600 V3 processors (single CPU configuration only)
|
| Socket |
2 x LGA 2011-3
Mounting pitch: square ILM (80x80mm)Max. length of M4 screw threads: 3.7mmScrews longer than 3.7mm might damage the motherboard |
| Chipset |
Intel® C612 |
| Memory |
8 x DIMM slotsDDR4 memory supported only
Quad channel memory architecture
ECC RDIMM / LRDIMM modules supported
Single and dual rank RDIMM modules up to 32GB supported
Quad rank LRDIMM modules up to 64GB supported
1.2V modules: 1600/1866/2133 MHz |
| LAN |
4 x GbE LAN ports (Intel® I210)
1 x 10/100/1000 management LAN |
| Video |
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp |
| Audio |
- |
| Storage |
12 x 3.5" hot-swappable HDD/SSD bays |
| SATA |
9 x SATA III 6Gb/s ports
1 x SATA III 6Gb/s ports supporting SATA DOM |
| SAS |
8 x SAS 6Gb/s ports(disabled, can be enabled with the CRA220-8 add-on card) |
| RAID |
Intel® SATA RAID 0/1/10/5 |
| Peripheral Drives |
- |
| Expansion Slots |
6 x Half-length low-profile slots
1 x PCIe x16 (Gen3 x16 bus) connector
3 x PCIe x16 (Gen3 x8 bus) connectors
2 x PCIe x16 (Gen3 x4 bus) connectors
1 x PCIe mezzanine type T (Gen3 x8 bus) connector |
| Internal I/O |
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
8 x SAS 6Gb/s ports
10 x SATA III 6Gb/s ports
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x Serial header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x JTAG PLD header
1 x BMC JTAG header
1 x Chassis intrusion header
2 x SAS SGPIO headers
2 x SATA SGPIO headers
1 x Software RAID jumper
1 x SATA DOM jumper
1 x BIOS password recovery jumper
1 x BIOS recovery jumper
1 x Clear CMOS jumper
1 x ME recovery jumper
1 x ME update jumper
1 x S3 mask jumper
1 x BMC FRB jumper
1 x PMBus connector
1 x IPMB connector |
| Front I/O |
1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
1 x Reset button |
| Rear I/O |
4 x USB 3.0
2 x USB 2.0
1 x PS/2
1 x VGA
1 x Serial
5 x RJ45
1 x ID button with LED |
| Backplane I/O |
12 x SAS/SATA ports
Default configuration supports:
4 x SATA III 6Gb/s drivesAdapter card required to enable the 8 remaining drive baysRecommended: CRA220-8 SAS card |
| TPM |
1 x TPM header |
| Power Supply |
2 x 750W redundant PSUs
80 PLUS Gold
AC input:
- 100-240V, 50-60Hz, 9.50/5.00A
DC output:
- 750W |
| System Management |
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)
|
| OS Supported |
Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Red Hat Enterprise Linux 6.5 (x86/x64)
Red Hat Enterprise Linux 7.0 (x86/x64)
SUSE Linux Enterprise Server 11 SP3 (x86/x64)
SUSE Linux Enterprise Server 12 (x86/x64)
Ubuntu 12.04.05 LTS
Ubuntu 14.04.01 LTS
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 |
| Weight |
17 kg |
| System Fans |
4 x 80x80x38mm (14'900rpm) |
| Operating Properties |
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing) |
| Packaging Dimensions |
1000 x 588 x 221 mm |
| Packaging Content |

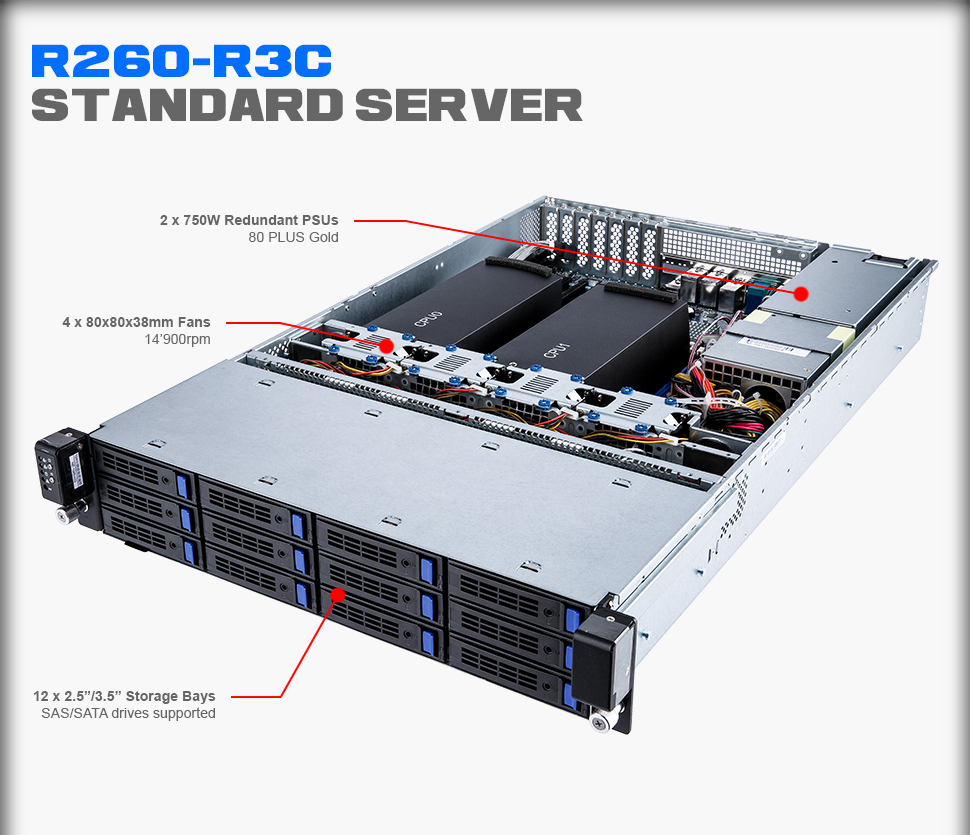

1 x R260-R3C
1 x Driver CD
2 x CPU heatsinks
1 x Rail kit |
| Part Numbers |
Barebone package: 6NR260R3CMR-00Spare parts:
- Rail kit: 25HB2-086300-I0R
- CPU heatsink: 25ST1-353200-T4R
- Back plane board: 9CBP20C0NR-00
- Power supply: 25EP0-207506-L0S
- Power supply PDB: 25EP0-207508-L0S
- Screws for 1 x HDD: 25KSD-130041-S0R |
