| Dimensions (WxHxD, mm) |
2U
430 x 87 x 712.4 |
| Motherboard |
MD70-HB2 |
| CPU |
Intel® Xeon® E5-2600 V3 processorsNOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable. |
| Socket |
2 x LGA 2011-3
Mounting pitch: square ILM (80x80mm)Max. length of M4 screw threads: 3.7mmScrews longer than 3.7mm might damage the motherboard |
| Chipset |
Intel® C612 |
| Memory |
16 x DIMM slotsDDR4 memory supported only
Quad channel memory architecture
ECC RDIMM / LRDIMM modules supported
Single and dual rank RDIMM modules up to 32GB supported
Quad rank LRDIMM modules up to 64GB supported
1.2V modules: 1600/1866/2133 MHz |
| LAN |
2 x GbE LAN ports (Intel® I350-AM2)
1 x 10/100/1000 management LAN |
| Video |
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp |
| Audio |
- |
| Storage |
12 x 3.5" hot-swappable HDD/SSD bays
2.5" HDD/SSD supported |
| SATA |
8 x SATA III 6Gb/s ports
2 x SATA III 6Gb/s ports supporting SATA DOM |
| SAS |
- |
| RAID |
Intel® SATA RAID 0/1/10/5 |
| Peripheral Drives |
- |
| Expansion Slots |
Total 6 x Full-length low-profile slots
3 x PCIe x16 (Gen3 x16 bus) connectors
1 x PCIe x8 (Gen2 x4 bus) connector
or (via PCIe switch):
1 x PCIe x16 (Gen3 x16 bus) slot
2 x PCIe x16 (Gen3 x8 bus) slots
3 x PCIe x8 (Gen3 x8 bus) slots |
| Internal I/O |
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x CPU fan headers
5 x System fan headers
10 x SATA III 6Gb/s ports
1 x USB 3.0 vertical type A
1 x USB 3.0 header
1 x USB 2.0 header
1 x Serial header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
2 x SATA SGPIO headers
1 x Chassis intrusion header
1 x LSI UART header
2 x JTAG headers
1 x PMBus connector
1 x IPMB connector
2 x SATA DOM jumpers
1 x BIOS recovery jumper
1 x BIOS password recovery jumper
1 x ME recovery jumper
1 x ME update jumper
1 x BMC FRB jumper
1 x Clear CMOS jumper
1 x S3 mask jumper |
| Front I/O |
1 x Power button with LED
1 x ID button with LED
2 x LAN LEDs
1 x HDD activity LED
1 x System status LED
1 x Reset button |
| Rear I/O |
2 x USB 3.0
1 x Serial
1 x VGA
3 x RJ45
1 x ID button with LED |
| Backplane I/O |
12 x SAS/SATA ports
Default configuration supports:
4 x SATA III 6Gb/s drives
Adapter card required to enable the 8 remaining drive bays
Recommended: RA200-8, RA201-A or CRA3338 SAS cards |
| TPM |
1 x TPM header |
| Power Supply |
2 x 750W redundant PSUs
80 PLUS GOLD
AC input:
- 100-240V, 50-60Hz, 9.50/5.00A
DC output:
- 750W |
| System Management |
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)
|
| OS Supported |
Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Red Hat Enterprise Linux 6.5 (x86/x64)
Red Hat Enterprise Linux 7.0 (x86/x64)
SUSE Linux Enterprise Server 11 SP3 (x86/x64)
SUSE Linux Enterprise Server 12 (x86/x64)
Ubuntu 12.04.05 LTS
Ubuntu 14.04.01 LTS
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 |
| Weight |
18 kg |
| System Fans |
4 x 80x80x38mm (14'900rpm) |
| Operating Properties |
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing) |
| Packaging Dimensions |
1000 x 588 x 221 mm |
| Packaging Content |

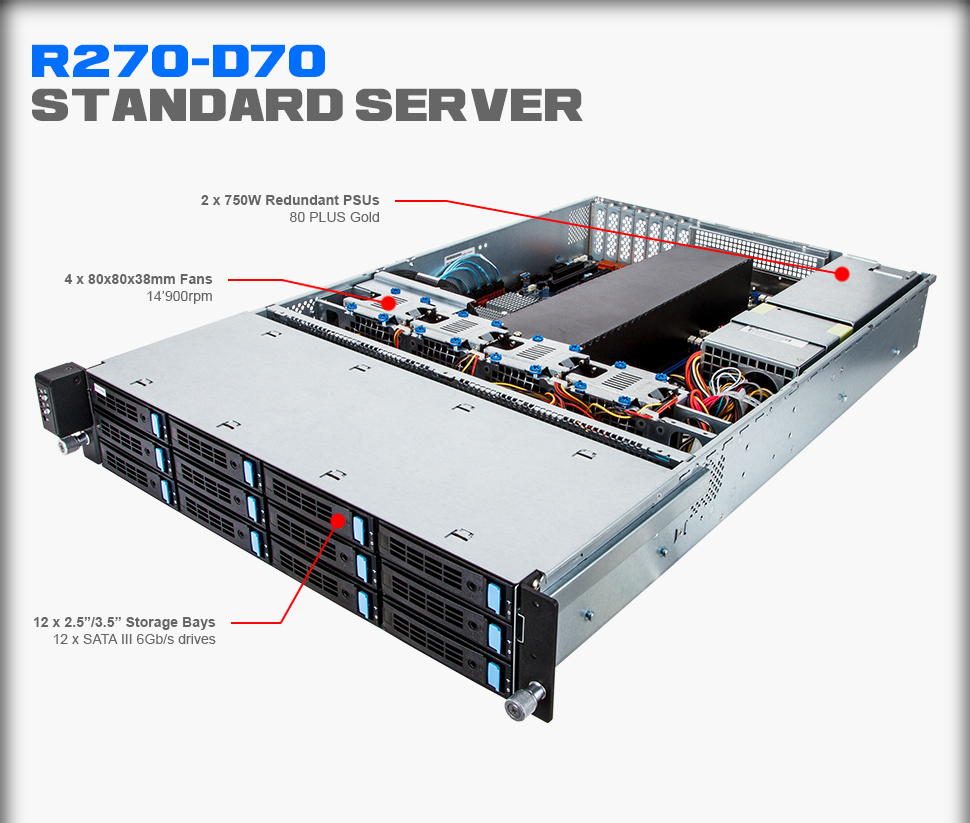

1 x R270-D70
1 x Driver CD
2 x CPU heatsinks
1 x Rail kit |
| Part Numbers |
Barebone package: 6NR270D70MR-00Spare parts:
- Rail kit: 25HB2-3A6803-I0R
- CPU heatsink: 25ST1-24320B-A8R/25ST1-24320C-A8R
- Back plane board: 9CBP20C0NR-00
- Power supply: 25EP0-207506-L0S
- Power supply PDB: 25EP0-207508-L0S
- Screws for 1 x HDD: 25KSD-130041-S0R |
