Dimensions (WxHxD, mm) |
1U
440 x 43.5 x 900 mm |
Motherboard |
MG30-G10 |
CPU |
Intel® Xeon® E5-2600 V3 processorsNOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable. |
Socket |
2 x LGA 2011-3
Mounting pitch: narrow ILM (56x94mm)Max. length of M4 screw threads: 3.7mmScrews longer than 3.7mm might damage the motherboard |
Chipset |
Intel® C612 |
Memory |
16 x DIMM slotsDDR4 memory supported only
Quad channel memory architecture
ECC RDIMM / LRDIMM modules supported
Single and dual rank RDIMM modules up to 32GB supported
Quad rank LRDIMM modules up to 64GB supported
1.2V modules: 1600/1866/2133 MHz |
LAN |
2 x GbE LAN ports (Intel® I350-AM2)
1 x 10/100/1000 management LAN |
Video |
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp |
Audio |
- |
Storage |
2 x 2.5" hot-swappable HDD/SSD bays
2 x 1.8" fixed HDD/SSD bays |
SATA |
4 x SATA III 6Gb/s ports |
SAS |
- |
RAID |
Intel® SATA RAID 0/1/5/10 |
Peripheral Drives |
- |
Expansion Slots |
2 x Full-length low-profile slots
4 x Full-length full-height slots, supporting:
- Support Intel® Xeon Phi cards
- Support NVIDIA® cards
- Support AMD® cards
- Please contact us for details about the supported card models
4 x Riser cards:
- 1 x CRSG221
- 1 x CRSG220
- 1 x CRSG211
- 1 x CRSG210 |
Internal I/O |
2 x 50-pin PSU connectors
4 x 8-pin ATX 12V power connectors
1 x 6-pin HDD back plane power connector
2 x 4-pin HDD power connectors
1 x Front panel header
1 x USB 3.0 header
4 x SATA III 6Gb/s ports
1 x HDD back plane board header
1 x SATA SGPIO header
1 x TPM header
1 x IPMB connector
2 x RJ45 LAN port connectors
1 x Serial header
1 x Front LAN port LED (link / active) header
1 x Front VGA header
1 x Intel RAID key header
18 x GPU fan headers
4 x System fan headers
1 x BIOS recovery jumper
1 x Clear CMOS jumper
1 x ME update jumper
1 x S3 power on select jumper
1 x Force to stop FRB timer jumper
1 x BIOS write protect jumper
1 x Clear password jumper |
Front I/O |
2 x USB 3.0
3 x RJ45
1 x VGA
1 x Serial
1 x ID button with LED
1 x Power button with LED
1 x Reset button
1 x NMI button |
Rear I/O |
- |
Backplane I/O |
2 x SAS / SATA III 6Gb/s ports |
TPM |
1 x TPM header |
Power Supply |
2 x 2000W redundant PSU
80 PLUS Platinum
AC input:
- 1000W: 100-120V/ 12.5-10.5A, 50-60Hz
- 1800W: 200-220V/ 10-9.5A, 50-60Hz
- 1980W: 220-230V/ 10-9.8A, 50-60Hz
- 2000W: 230-240V/ 10-9.8A, 50-60Hz
DC output:
- 1000W@100-120V
- 1800W@200-220V
- 1980W@220-230V
- 2000W@200-240V |
System Management |
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)
|
OS Supported |
Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Red Hat Enterprise Linux 6.5 (x64)
Red Hat Enterprise Linux 6.6 (x64)
Red Hat Enterprise Linux 7.0 (x64)
SUSE Linux Enterprise Server 11 SP3 (x64)
SUSE Linux Enterprise Server 12 (x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 |
Weight |
25.6 kg (full packaging) |
System Fans |
11 x 40x56mm (23'000rpm) |
Operating Properties |
Operating temperature: 5°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing) |
Packaging Dimensions |
1156 x 259 x 738 mm |
Packaging Content |

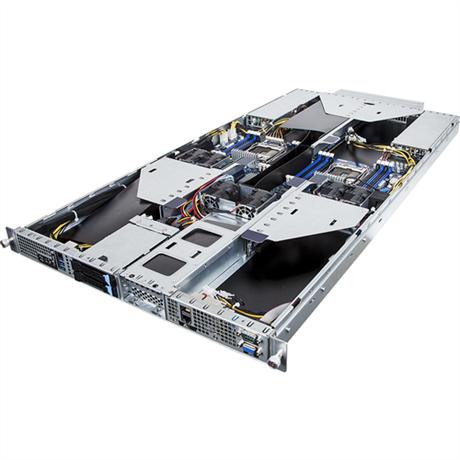

1 x G190-H44
1 x Driver CD
2 x CPU heatsinks
1 x Rail kit |
Part Numbers |
Barebone package: 6NG190H44MR-00Spare parts:
- Rail kit: 25HB2-3A0200-C0R
- Back plane board: 9CBPG020NR-00
- Power supply: 25EP0-220002-C2S
- Front panel board 1: 9CFPG000NR-00
- Front panel board 2: 9CFPG010NR-00
- Riser card 1 : 9CRSG220NR-00
- Riser card 2 : 9CRSG210NR-00
- Riser card 3 : 9CRSG211NR-00
- Riser card 4 : 9CRSG221NR-00 |
