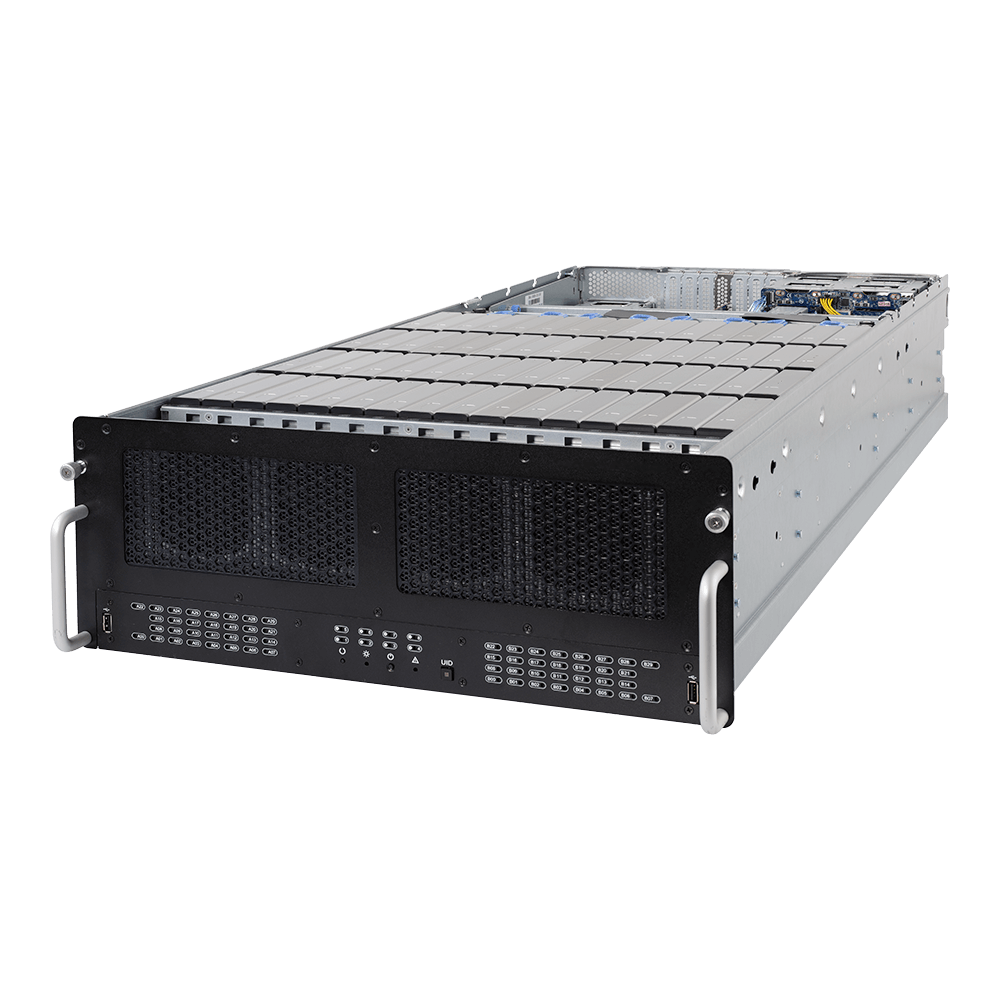

S461-3T0 (rev. 100)
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 4U |
| 最大GPU数 | |
| 電源仕様 | リダンダント電源 |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Dimensions (WxHxD, mm) | 4U 438 x 176 x 1002 |
|---|---|
| Motherboard | MD61-SC2 |
| CPU | 2nd Generation Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable |
| Socket | 2 x LGA 3647 Socket P CPU TDP up to 165W |
| Chipset | Intel® C621 Express Chipset |
| Memory | 16 x DIMM slots DDR4 memory supported only 6-channel memory architecture RDIMM modules up to 64GB supported LRDIMM modules up to 128GB supported Supports Intel® Optane™ DC Persistent Memory (DCPMM) 1.2V modules: 2933( 1DPC)/2666/2400/2133 MHz Maximum verified DCPMM configuration: * Ambient temperature 30°C * 2nd Generation Intel® Xeon® Scalable processor 165W (Max.) * DCPMM 512GB x3 pcs DCPMM installation locations: DIMM_G0 DIMM_G1 DIMM_G2 NOTE: 1. 2933MHz for 2nd Generation Intel® Xeon® Scalable Processors only 2. Intel® Optane™ DC Persistent Memory for 2nd Generation Intel® Xeon® Scalable Processors only 3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 30°C 4. To enquire about installing a greater number of DCPMM, please consult with your GIGABYTE technical or sales representative |
| LAN | 2 x 10Gb/s SFP+ LAN ports (QLogic® QL41102) 2 x 1Gb/s LAN ports 1 x 10/100/1000 management LAN |
| Video | Integrated in Aspeed® AST2500 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp, DDR4 SDRAM |
| Audio | - |
| Storage | Front side: 60 x 3.5" SATA/SAS hot-swappable HDD bays Rear side: 8 x 2.5" hot-swappable SSD bays* NOTE: * 6 x hybrid ports and 2 x SATA/SAS ports only * For rear side 2.5" bays support Solid State Drives only due to thermal consideration * Please select Enterprise SATA hard drives Broadcom SAS3x36R expanders Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port Default configuration supports: 0 x SAS/SATA drives SAS card is required to enable the drive bays Suggested 12Gb/s SAS cards: CRA4648 CSA4648 |
| SATA | 2 x 7-pin SATA III 6Gb/s with SATA DOM supported |
| SAS | Depends on SAS add-on Card |
| RAID | Depends on SAS add-on Card |
| Peripheral Drives | - |
| Expansion Slots | Slot_7 (PCIe_4): 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_1 Slot_6 (PCIe_3): 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_1 Slot_5 (PCIe_2): 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_1 Slot_4 (PCIe_1): 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_0, occupied by NVMe 4 x U.2 ports 1 x Mezzanine card slot:( Reserved) - PCIe Gen3 x8 - From CPU_0 - Optional for OCP mezzanine card with low profile type - CPU TDP is limited to 105W if using OCP slot |
| Internal I/O | 2 x SATA 7-pin connectors 1 x TPM header 1 x VROC connector |
| Front I/O | 2 x USB 2.0 1 x Power button 1 x ID button with LED 1 x Reset button 1 x System status LED 1 x Power LED |
| Rear I/O | 2 x USB 3.0 1 x VGA 2 x SFP+ 2 x RJ45 1 x MLAN 1 x ID button with LED 2 x LAN activity LEDs |
| Backplane I/O | Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port |
| TPM | 1 x TPM header with SPI interface Optional TPM2.0 kit: CTM010 |
| Power Supply | 2 x 2000W redundant PSUs 80 PLUS Platinum |
| System Management | Aspeed® AST2500 management controller Avocent® MergePoint IPMI 2.0 web interface:
|
| OS Compatibility | For Skylake processors: Windows Server 2012 R2 with Update Windows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 6.9 (x64) or later Red Hat Enterprise Linux 7.3 (x64) or later Red Hat Enterprise Linux 8.0 (x64) or later SUSE Linux Enterprise Server 11.4 (x64) or later SUSE Linux Enterprise Server 12.2 (x64) or later SUSE Linux Enterprise Server 15 (x64) or later Ubuntu 16.04.1 LTS (x64) or later Ubuntu 18.04 LTS (x64) or later VMware ESXi 6.0 Update3 or later VMware ESXi 6.5 or later VMware ESXi 6.7 or later Citrix Xenserver 7.1.0 CU2 or later Citrix Xenserver 7.4.0 or later Citrix Hypervisor 8.0.0 BigTera VitualStor Scaler For Cascade Lake processors: Windows Server 2012 R2 with Update Windows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 7.6 (x64) or later Red Hat Enterprise Linux 8.0 (x64) or later SUSE Linux Enterprise Server 12.3 (x64) or later SUSE Linux Enterprise Server 15 (x64) or later Ubuntu 18.04 LTS (x64) or later VMware ESXi 6.0 Update3 or later VMware ESXi 6.5 Update2 or later VMware ESXi 6.7 Update1 or later Citrix Xenserver 7.1.0 CU2 or later Citrix Xenserver 7.5.0 or later Citrix Hypervisor 8.0.0 BigTera VitualStor Scaler |
| Weight | 63 kg |
| System Fans | 8 x 80x80x38mm (11,000rpm) 2 x 60x60x38mm (21,700rpm) 1 x 40x40x28mm (26,000rpm) |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Packaging Dimensions | TBD |
| Packaging Content | 1 x S461-3T0 2 x CPU heatsinks 1 x Rail kit 2 x Non-Fabric CPU carrier |
| Part Numbers | Barebone package: 6NS4613T0MR-00
Part Numbers:
- Motherboard: 9MD61SC2NR-00 - 1600W power supply: 25EP0-216007-L0S |
