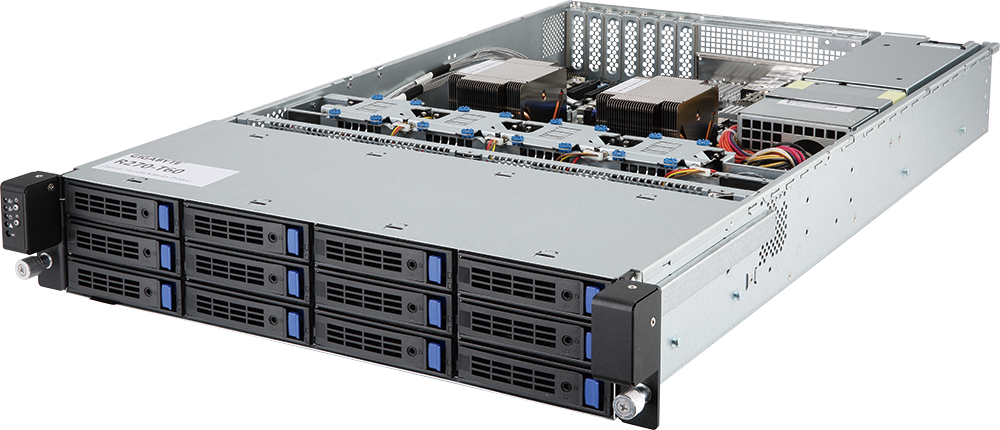

R270-T68 (rev. 100)

製品種別 サーバ
CPUソケット数
CPU
筐体サイズ 2U
最大GPU数
電源仕様 リダンダント電源
用途/特長
製品説明

製品仕様

Dimensions (WxHxD, mm) 2U
430 x 87 x 710 mm
Motherboard MT60-SC5
CPU Marvell® ThunderX® family
2 x ThunderX_ST™ processors
64bit ARMv8 architecture
48 cores per processor, 2.0GHz
BGA 2601, 28nm technology
Chipset -
Memory 16 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
Up to total 512GB memory capacity
1866 MHz with 2DPC for Single Rank or Dual Rank RDIMMs / ECC UDIMMs
2133 MHz with 1DPC for Single Rank or Dual Rank RDIMMs / ECC UDIMMs
NOTE: Due to processor specification, at least 4 x DIMM modules must be installed for this model
LAN 3 x 40GbE QSFP+ LAN ports
4 x 10Gb/s SFP+ LAN ports
1 x 10/100/1000 management LAN port
Video Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio -
Storage 12 x 3.5" or 2.5" hot-swappable HDD bays

- NOTE: GIGABYTE recommends that you follow the QVL when selecting hard drives, to avoid any system compatibility issues
SAS -
RAID Depends on OS RAID
Peripheral Drives -
Expansion Slots 1 x PCIe x8 slot (Gen3 x8 bus) from CPU1
1 x PCIe x16 slot (Gen3 x4 bus) from CPU0
All PCIe slots support low profile HBAs
Internal I/O 1 x 24-pin main power connector
2 x 8-pin power connectors
2 x CPU fan header
5 x System fan headers
1 x USB 3.0 header
1 x COM2 header
1 x SATA SGPIO header
1 x Front panel headers
1 x back plane board header
1 x PMBUS header
1 x BMC JTAG header
1 x JTAG PLD header
1 x BMC reset header
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x IPMB connector
Front I/O 1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs(Dedicated for 10Gb/s SFP+ LAN ports)
Rear I/O 1 x ID button with LED
2 x USB 3.0
1 x VGA
1 x COM1
3 x QSFP+
4 x SFP+
1 x RJ45
Backplane I/O Speed and bandwidth:
SATA 6Gb/s
TPM -
Power Supply 2 x 750W redundant PSUs
80 PLUS GOLD

AC input:
- 100-240V, 50-60Hz, 9.50/5.00A

DC output:
- 750W
System Management Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
  • Network settings
  • Network security settings
  • Users control
  • Services settings
  • IPMI settings
  • Sessions control
  • LDAP settings
  • Power control
  • Voltages, fans and temperatures monitoring
  • System event log
  • Events management (platform events, trap settings, email settings)
  • Serial Over LAN
  • vKVM & vMedia (launch, configuration)
OS Compatibility Certified OS
Ubuntu 16.04.1 64bit
SLES12 SP2

Compatible OS
openSUSE Tumbleweed
openSUSE Leap 42.1+
RHEL 7.3 64bit
CentOS 7.3 64bit
Weight 21 kg (barebone)
System Fans 4 x 80x80x38mm (14900rpm)
Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions 982 x 588 x 268 (mm)
Packaging Content 1 x R270-T68 system
1 x Quick Installation Guide
1 x Rail kit
Part Numbers Rackmount: 6NR270T68MR-00
Motherboard: 9MT60SC5NR-00
Power supply: 25EP0-207506-L0S
Power Supply PDB: 25EP0-207508-L0S
Rail Kit: 25HB2-3A6803-I0R
