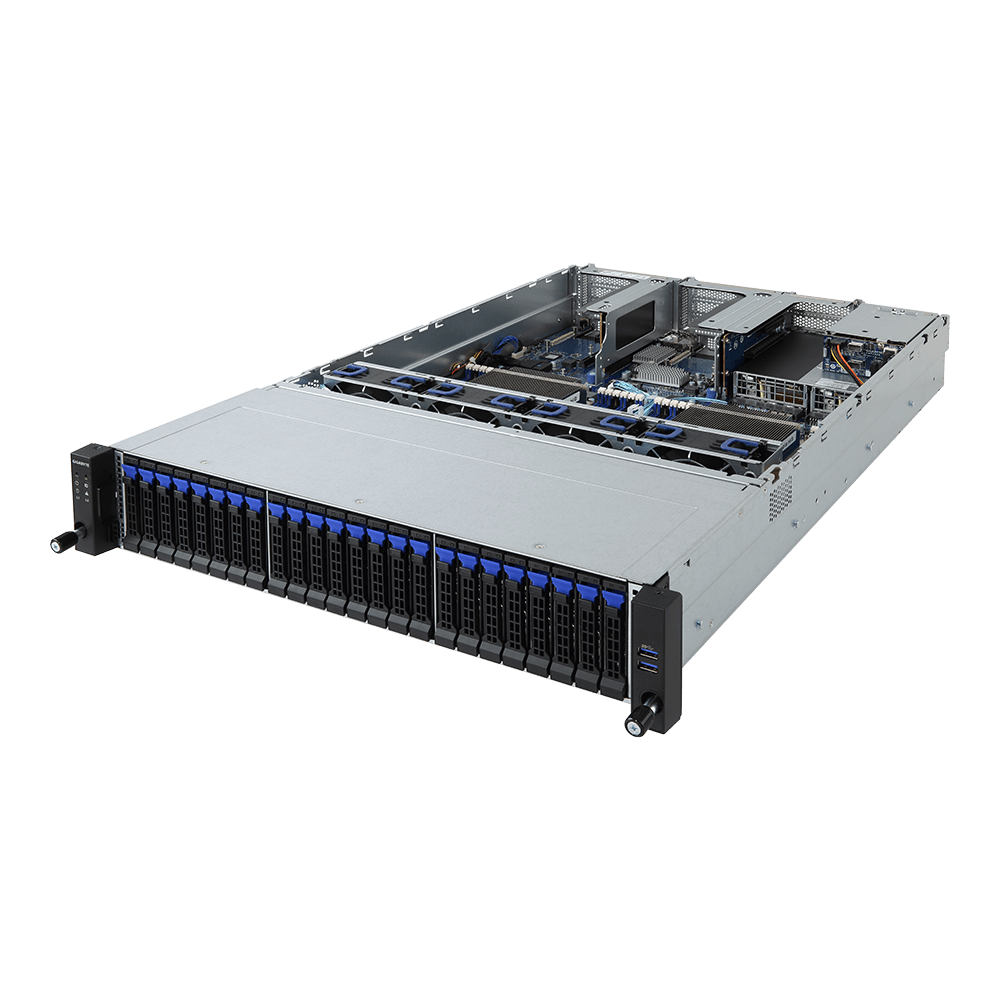

R281-T91 (rev. 100)
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 2U |
| 最大GPU数 | |
| 電源仕様 | リダンダント電源 |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Dimensions (WxHxD, mm) | 2U 438 x 87.5 x 730 |
|---|---|
| Motherboard | MT91-FS1 |
| CPU | 2 x Marvell® ThunderX2® CN9975 ARM processors 64bit ARMv8 architecture 28 cores per processor, 2.0GHz, TDP 150W 16nm technology |
| Chipset | - |
| Memory | 24 x DIMM slots DDR4 memory supported only 8-channel memory architecture per processor RDIMM modules up to 64GB supported 1.2V modules: 2666/2400/2133 MHz - NOTE: GIGABYTE recommends that you follow the QVL when selecting memory modules to avoid any system compatibility issues - NOTE: DDR4 2666 Mhz with 1DPC, DDR4 2400 with 2DPC |
| LAN | 2 x 10Gb/s SFP+ LAN ports (QLogic® QL41102) 1 x 10/100/1000 management LAN port |
| Video | Integrated in Aspeed® AST2500 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp, DDR4 SDRAM |
| Audio | - |
| Storage | Front side: 24 x 2.5" SATA/SAS hot-swappable HDD/SSD bays Rear side: 2 x 2.5" SATA only hot-swappable HDD/SSD bays Onboard Broadcom® SAS3008 controller Onboard Broadcom® SAS35x36R expander Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port - NOTE: GIGABYTE recommends that you follow the QVL when selecting hard drives, to avoid any system compatibility issues |
| SAS | Supported |
| RAID | RAID 0/1/1E/10 |
| Peripheral Drives | - |
| Expansion Slots | Riser Card CRS2131: - 1 x PCIe x16 slot (Gen3 x16 or x8), Full height half-length - 1 x PCIe x8 slots (Gen3 x0 or x8), Full height half-length - 1 x PCIe x8 slots (Gen3 x8), Full height half-length Riser Card CRS2132: - 1 x PCIe x16 slot (Gen3 x16 or x8), Full height half-length - 1 x PCIe x8 slots (Gen3 x0 or x8), Full height half-length - 1 x PCIe x8 slots (Gen3 x8), Full height half-length Riser Card CRS2124: - 1 x PCIe x8 slots (Gen3 x0 or x8), Low profile half-length - 1 x PCIe x16 slot (Gen3 x16 or x8), Low profile half-length 2 x OCP mezzanine slots - PCIe Gen3 x16 - Type1, P1, P2, P3, P4 |
| Internal I/O | 2 x Power supply connectors 2 x SlimSAS connectors 2 x SATA 7-pin connectors 1 x USB 3.0 header 1 x Front panel header 1 x HDD back plane board header 1 x PMBus connector 1 x IPMB connector 1 x Clear CMOS switch 1 x BIOS recovery switch |
| Front I/O | 2 x USB 3.0 1 x Power button with LED 1 x ID button with LED 1 x Reset button 1 x System status LED 1 x HDD activity LED 2 x LAN activity LEDs |
| Rear I/O | 2 x USB 3.0 1 x VGA 1 x COM (RJ45 type) 2 x SFP+ 1 x MLAN 1 x ID button with LED |
| Backplane I/O | Front side_CBP20O2: 24 x SATA/SAS ports Rear side_CBP2020: 2 x SATA/SAS ports Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port |
| TPM | - |
| Power Supply | 2 x 1200W redundant PSUs 80 PLUS Platinum AC Input: - 100-240V~/ 12-7A, 50-60Hz DC Input: - 240Vdc/ 6A DC Output: - Max 1000W/ 100-240V~ +12V/ 80.5A +12Vsb/ 3A - Max 1200W/ 200-240V~ or 240Vdc input +12V/ 97A +12Vsb/ 3A |
| System Management | Aspeed® AST2500 management controller Avocent® MergePoint IPMI 2.0 web interface:
|
| OS Compatibility | Compatible OS RHEL 7.5 64bit (ARM64)** Ubuntu 18.04 (ARM64) SUSE SLES 15 (ARM64) CentOS 7.6 64bit (ARM64) Oracle Linux 7.4 (ARM64) ** GIGABYTE recommends to contact with us or our partners for further details |
| Weight | Net Weight: 19.5 kg Gross Weight: 28.92 kg |
| System Fans | 4 x 80x80x38mm (16'300rpm) |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Packaging Dimensions | 982 x 588 x 268 (mm) |
| Packaging Content | 1 x R281-T91 system 1 x Rail kit |
| Part Numbers | Barebone package: 6NR281T91MR-00
Part Numbers:
- Motherboard: 9MT91FS1NR-00 - Rail kit: 25HB2-3A0202-K0R - CPU heatsink: 25ST1-353207-J1R - Back plane board_24-port: 9CBP20O2NR-00 - Back plane board_2-port: 9CBP2020NR-00 - Expander board: 9CEP26O0NR-00 - Front panel board: 9CFP2001NR-00 - Power supply: 25EP0-212002-F3S - RJ45 type COM cable: 25CR0-200400-Y4R (as an option) - Riser card - CRS2131: 9CRS2131NR-00 - Riser card - CRS2132: 9CRS2132NR-00 - Riser card - CRS2124: 9CRS2124NR-00 |
