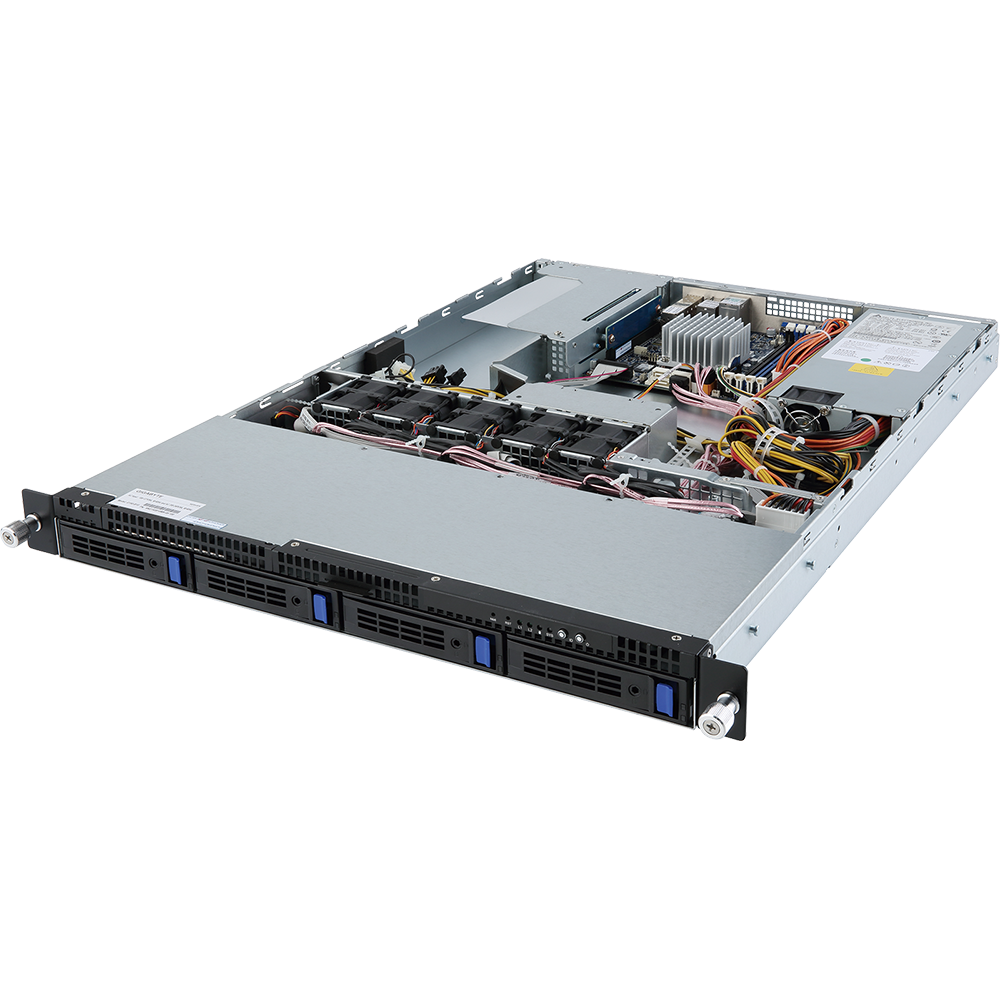

G150-B10 (rev. 111)
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 1U |
| 最大GPU数 | |
| 電源仕様 | シングル電源 |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Dimensions (WxHxD, mm) | 1U 430 x 43.5 x 625 (mm) |
|---|---|
| Motherboard | MB10-DS3 |
| CPU | Intel® Xeon® D-1541 processor 2.1GHz
Up to 2.7GHz with Intel® Turbo Boost Technology 8 cores, 16 threads 12MB cache 45W TDP |
| Socket | BGA 1667 |
| Chipset | - |
| Memory | 4 x DIMM slots Supports 1.2V DDR4 memory Single & dual rank modules supported ECC & non-ECC modules supported RDIMM supported up to 32GB per module UDIMM supported up to 16GB per module 2400/2133MHz |
| LAN | 2 x 10GbE SFP+ LAN ports (Intel® X552) 2 x GbE LAN ports (Intel® I210) 1 x 10/100/1000 management LAN |
| Video | Integrated in Aspeed® AST2400 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp |
| Audio | - |
| Storage | 4 x 3.5" hot-swappable HDD/SSD bays Supports SATA III 6Gb/s 2.5" HDD supported |
| SATA | Supported, SATA 6Gb/s 1 x onboard SATA III 6Gb/s port supporting SATA DOM Please purchase Enterprise SATA hard drives, refer to QVL document for more details |
| SAS | - |
| RAID | - |
| Peripheral Drives | - |
| Expansion Slots | 1 x PCIe x16 (Gen3 x16 or x8 bus) connector 1 x PCIe x8 (Gen3 x0 or x8 bus) connector - Maximum limitation of add-on card: 34.8mm x 296mm x 111.15mm |
| Internal I/O | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA III 6Gb/s ports 1 x CPU fan header 1 x System fan headers 1 x TPM header 1 x Front panel header 1 x HDD back plane board header 1 x JTAG BMC header 1 x Clear CMOS jumper 1 x IPMB connector 1 x PMBus connector 1 x COM (RS-232) |
| Front I/O | 1 x Power button with LED 1 x ID switch with LED 1 x System status LED 1 x HDD activity LED 2 x LAN activity LEDs 1 x Reset button 1 x NMI button |
| Rear I/O | 1 x Power button with LED 1 x ID switch with LED 1 x System status LED 1 x VGA 2 x USB 3.0 2 x SFP+ 2x RJ45 1x MLAN RJ45 |
| Backplane I/O | 4 x SAS/SATA 6Gb/s ports |
| TPM | 1 x TPM header |
| Power Supply | 1 x 600W 80+ Gold w/ PMBus Input: - 100-240V, 50-60Hz, 9/5A Output: - 600W |
| System Management | Aspeed® AST2400 management controller Avocent® MergePoint IPMI 2.0 web interface: - Network settings - Network security settings - Users control - Services settings - IPMI settings - Sessions control - LDAP settings - Power control -Voltages, fans and temperatures monitoring - System event log - Events management (platform events, trap settings, email settings) - Serial Over LAN - vKVM & vMedia (launch, configuration) |
| OS Compatibility | Windows Server 2008 R2 64bit Windows Server 2012 R2 64bit Windows Server 2016 Red Hat Enterprise Linux 7.1 (x64) SUSE Linux Enterprise Server 12 (x64) Ubuntu 14.04.2 LTS Fedora 22 CentOS 7.1 |
| Weight | 7.5kg |
| System Fans | 5 x 40x40x56mm (23000rpm) |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Packaging Dimensions | Inner Box size: 944*576*232 (mm) Outer Box size: 959*588*248 (mm) |
| Packaging Content | 1 x G150-B10 1 x Tool-less Rail kit (25HB2-3A6101-K0R) 1 x Quick Start Guide (25ME0-G15000-CLS) |
| Part Numbers | Barebone with rail kit: 6NG150B10MR-00 Backplane Board: 9CBP1040NR-00 Rail kit: 25HB2-3A6101-K0R Fan module: 25ST2-445626-D0R Power supply: 25EP0-206002-D0S |
