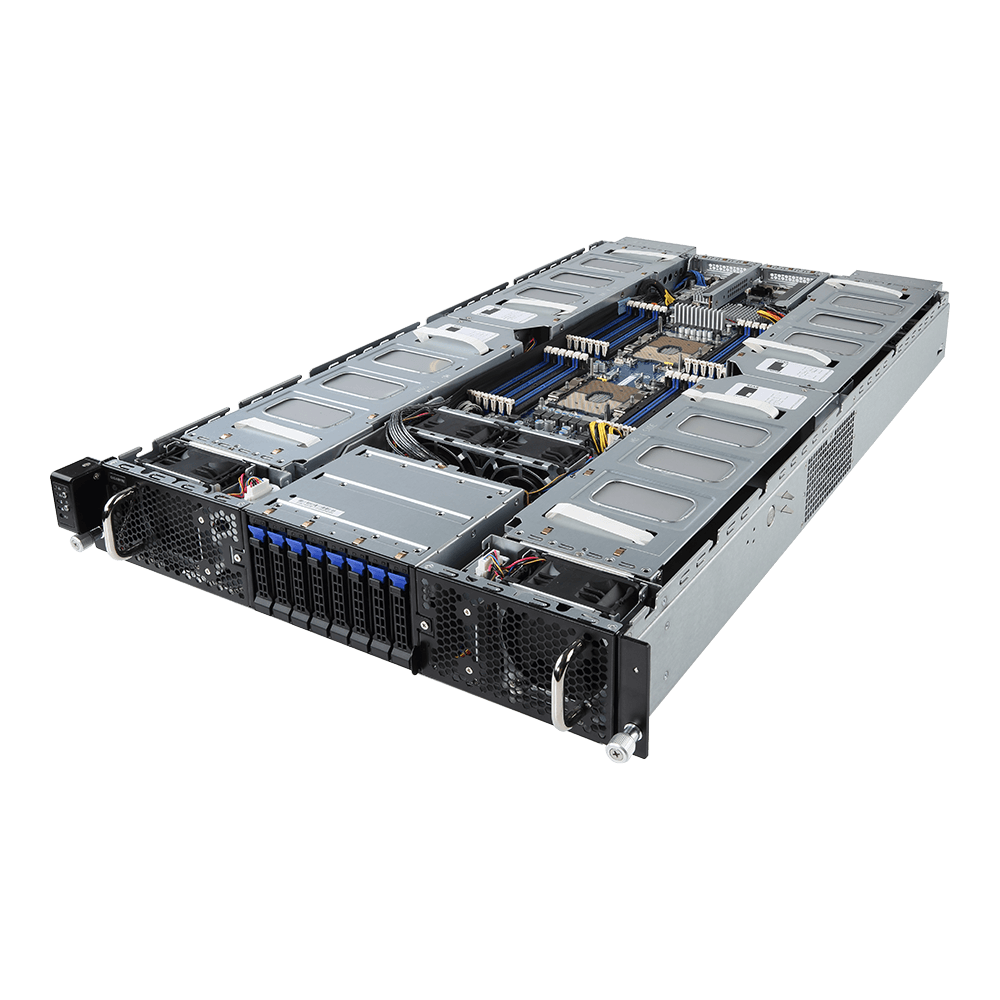

G291-281 (rev. 100)
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 2U |
| 最大GPU数 | |
| 電源仕様 | リダンダント電源 |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Dimensions (WxHxD, mm) | 2U 448 x 87.5 x 800 |
|---|---|
| Motherboard | MG51-G21 |
| CPU | 2nd Generation Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable |
| Socket | 2 x LGA 3647 Socket P TDP up to 205W |
| Chipset | Intel® C621 Express Chipset |
| Memory | 24 x DIMM slots DDR4 memory supported only 6-channel memory architecture RDIMM modules up to 64GB supported LRDIMM modules up to 128GB supported Supports Intel® Optane™ DC Persistent Memory (DCPMM) 1.2V modules: 2933( 1DPC)/2666/2400/2133 MHz Maximum verified DCPMM configuration: * Ambient temperature 35°C * 2nd Generation Intel® Xeon® Scalable processor 205W (Max.) * DCPMM 128GB x6 pcs DCPMM installation locations: DIMM_P1_( G1, H1, I1) DIMM_P1_( J1, K1, L1) NOTE: 1. 2933MHz for 2nd Generation Intel® Xeon® Scalable Processors only 2. Intel® Optane™ DC Persistent Memory for 2nd Generation Intel® Xeon® Scalable Processors only 3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 35°C 4. To enquire about installing a greater number of DCPMM, please consult with your GIGABYTE technical or sales representative |
| LAN | 2 x 10Gb/s BASE-T LAN ports (Intel® X550-AT2) 1 x 10/100/1000 management LAN |
| Video | Integrated in Aspeed® AST2500 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp, DDR4 SDRAM |
| Storage | 8 x 2.5" hot-swappable HDD/SSD bays SAS card is required for SAS devices support |
| SATA | 1 x 7-pin SATA III 6Gb/s with SATA DOM supported By using pin_8 or external cable for power function |
| SAS | Supported via add-on SAS Card |
| RAID | Intel® SATA RAID 0/1/10/5 |
| Peripheral Drives | - |
| Expansion Slots | 8 x PCIe x16 slots (Gen3 x16 bus) for GPUs 2 x PCIe x16 (Gen3 x16 bus) Half-length low-profile slots OCP type add-on card as an option - Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H) - System is validated for population with a uniform GPU model - Support is not provided for mixed GPU populations |
| Internal I/O | 1 x 18-pin power connector 1 x 14-pin power connector 2 x 8-pin power connectors 2 x 4-pin power connectors 1 x USB 3.0 header 1 x TPM header 1 x VROC connector 1 x HDD back plane board header 1 x 12-pin front panel header 1 x 23-pin front panel header 1 x JTAG header 2 x SATA SGPIO headers 1 x Front VGA header 1 x Serial header 1 x IPMB connector 1 x P12V standby connector 1 x PMBus selection jumper 1 x Clear CMOS jumper 1 x LT debug jumper |
| Front I/O | 1 x Power button with LED 1 x ID button with LED 2 x LAN activity LEDs 1 x HDD activity LED 1 x System status LED 1 x Reset button |
| Rear I/O | 2 x USB 3.0 1 x VGA 2 x RJ45 1 x MLAN 1 x Power button with LED 1 x ID button with LED 1 x Reset button 1 x NMI button 1 x System status LED |
| Backplane I/O | 8 x SAS/SATA ports Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port SAS card is required for SAS devices support |
| TPM | 1 x TPM header with SPI interface Optional TPM2.0 kit: CTM010 |
| Power Supply | 2 x 2000W redundant PSU 80 PLUS Titanium AC input: - 1000W: 100-127V/ 12-9.5A, 50-60Hz - 1800W: 200-220V/ 10-9.5A, 50-60Hz - 1980W: 220-230V/ 10-9.8A, 50-60Hz - 2000W: 230-240V/ 10-9.8A, 50-60Hz DC output: Max 1000W@100-127V: +12V/ 83.3A +12Vsb/ 2.1A 1800W@200-220V +12V/ 150.0A +12Vsb/ 2.1A 1980W@220-230V +12V/ 165.0A +12Vsb/ 2.1A 2000W@200-240V +12V/ 166.7A +12Vsb/ 2.1A |
| System Management | Aspeed® AST2500 management controller Avocent® MergePoint IPMI 2.0 web interface:
|
| OS Compatibility | For Skylake processors: Windows Server 2012 R2 with Update Windows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 6.9 (x64) or later Red Hat Enterprise Linux 7.3 (x64) or later Red Hat Enterprise Linux 8.0 (x64) or later SUSE Linux Enterprise Server 11.4 (x64) or later SUSE Linux Enterprise Server 12.2 (x64) or later SUSE Linux Enterprise Server 15 (x64) or later Ubuntu 16.04.1 LTS (x64) or later Ubuntu 18.04 LTS (x64) or later VMware ESXi 6.0 Update3 or later VMware ESXi 6.5 or later VMware ESXi 6.7 or later Citrix Xenserver 7.1.0 CU2 or later Citrix Xenserver 7.4.0 or later Citrix Hypervisor 8.0.0 For Cascade Lake processors: Windows Server 2012 R2 with Update Windows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 7.6 (x64) or later Red Hat Enterprise Linux 8.0 (x64) or later SUSE Linux Enterprise Server 12.3 (x64) or later SUSE Linux Enterprise Server 15 (x64) or later Ubuntu 18.04 LTS (x64) or later VMware ESXi 6.0 Update3 or later VMware ESXi 6.5 Update2 or later VMware ESXi 6.7 Update1 or later Citrix Xenserver 7.1.0 CU2 or later Citrix Xenserver 7.5.0 or later Citrix Hypervisor 8.0.0 |
| Weight | Net Weight: 30 kg Gross Weight: 36 kg |
| System Fans | 8 x 80x80x38mm (16300rpm) |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Packaging Content | 1 x G291-281 2 x CPU heatsinks 1 x Rail kit 2 x Non-Fabric CPU carrier |
| Part Numbers | - Barebone with rail kit: 6NG291281MR-00 - Motherboard: 9MG51G21NR-00 - Tool-less rail kit: 25HB2-A86102-K0R - Power supply: 25EP0-220003-C2S - 2 x NVMe cable kits: 6N0ASP035PR-W6 (optional) |
