![](/admin/imgs/gigabyte/G291-Z20-rev-100.png?8.9868279367602")

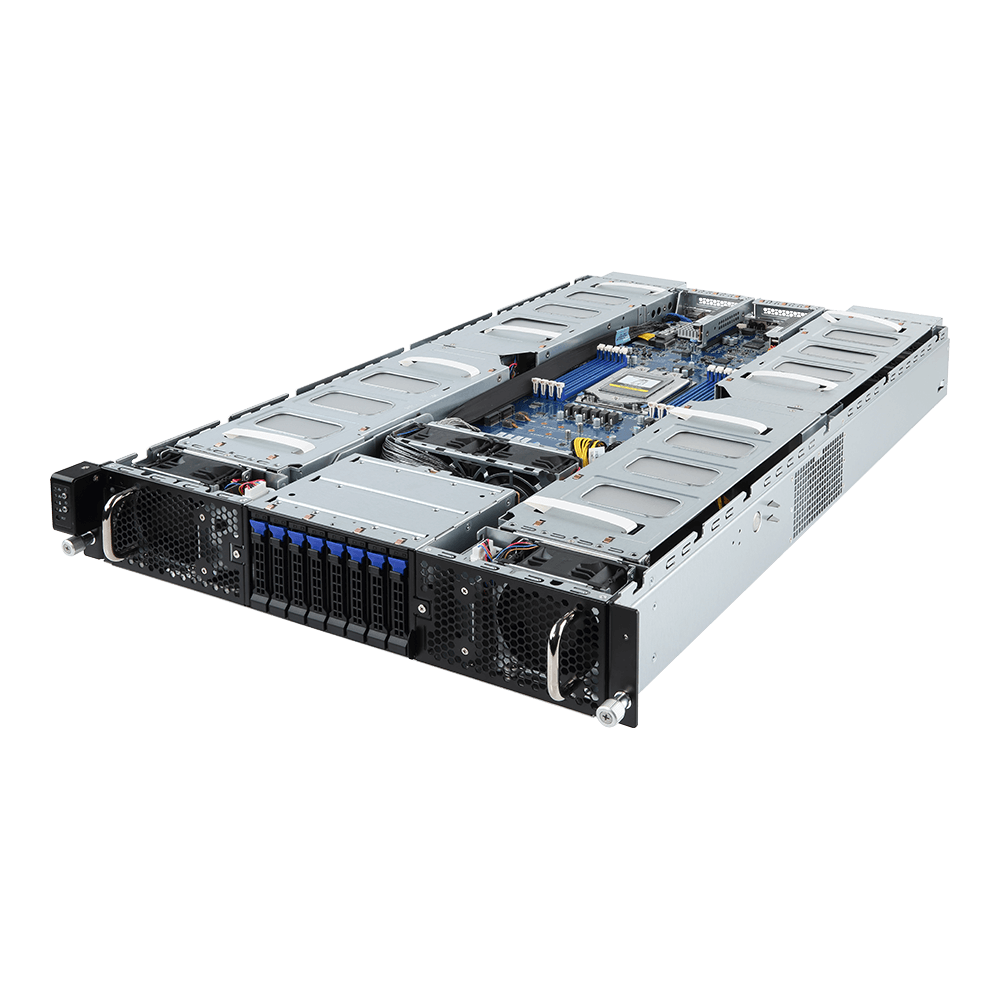

G291-Z20 (rev. 100)
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 2U |
| 最大GPU数 | |
| 電源仕様 | リダンダント電源 |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Dimensions (WxHxD, mm) | 2U 448 x 87.5 x 800 |
|---|---|
| Motherboard | MZ21-G20 |
| CPU | AMD EPYC™ 7001 series processor family Single processor, 14nm, Socket SP3 Up to 32-core, 64 threads TDP up to 200W |
| Socket | Socket SP3 |
| Chipset | System on Chip |
| Memory | 8 x DIMM slots DDR4 memory supported only 8-Channel memory architecture RDIMM modules up to 64GB supported LRDIMM modules up to 128GB supported Memory speed: 2666/2400/2133 MHz |
| LAN | 2 x SFP+ 10Gb/s LAN ports (Mellanox® ConnectX-4 Lx) 1 x 10/100/1000 management LAN |
| Video | Integrated in Aspeed® AST2500 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp, DDR4 SDRAM |
| Storage | 8 x 2.5" hot-swappable HDD/SSD bays SAS card is required for SAS devices support Suggested 12Gb/s SAS cards: CRA4448 CRA4548 |
| SATA | Supported |
| SAS | Supported via add-on SAS Card |
| RAID | - |
| Peripheral Drives | - |
| Expansion Slots | 8 x PCIe x16 slots (Gen3 x16 bus) for GPUs 2 x PCIe x16 (Gen3 x16 bus) Half-length low-profile slots 1 x M.2 slot: - M-key - PCIe Gen3 x4 - Supports NGFF-2242/2260/2280/22110 cards 1 x M.2 slot: - M-key - PCIe Gen3 x2 - Supports NGFF-2242/2260/2280/22110 cards - Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H) - System is validated for population with a uniform GPU model - Support is not provided for mixed GPU populations - For the latest GPU cards QVL, please contact your GIGABYTE representative |
| Internal I/O | 1 x TPM header 1 x Sli-SAS connectors 2 x M.2 slots 1 x Serial header 1 x Buzzer |
| Front I/O | 1 x Power button with LED 1 x ID button with LED 2 x LAN activity LEDs 1 x HDD activity LED 1 x System status LED 1 x Reset button |
| Rear I/O | 2 x USB 3.0 1 x VGA 2 x SFP+ 1 x MLAN 1 x Power button with LED 1 x ID button with LED 1 x Reset button 1 x NMI button 1 x System status LED |
| Backplane I/O | 8 x SAS/SATA ports Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port SAS card is required for SAS devices support |
| TPM | 1 x TPM header with LPC interface Optional TPM2.0 kit: CTM000 |
| Power Supply | 2 x 2200W redundant PSUs
80 PLUS Platinum
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V +12.12V/ 178.1A +12Vsb/ 3.5A NOTE: The system power supply requires C19 type power cord |
| System Management | Aspeed® AST2500 management controller Avocent® MergePoint IPMI 2.0 web interface:
|
| OS Compatibility | Windows Server 2012 R2 with Update Windows Server 2016 Red Hat Enterprise Linux 7.4 (x64) or later Red Hat Enterprise Linux 8.0 (x64) or later SUSE Linux Enterprise Server 11.4 (x64) or later SUSE Linux Enterprise Server 12.3 (x64) or later SUSE Linux Enterprise Server 15 (x64) or later Ubuntu 16.04 LTS (x64) or later Ubuntu 18.04 LTS (x64) or later VMware ESXi 6.5 Update1 or later VMware ESXi 6.7 or later Citrix Xenserver 7.1.0 CU2 or later Citrix Xenserver 7.4.0 or later Citrix Hypervisor 8.0.0 |
| Weight | Net Weight: 29.5 kg Gross Weight: 34.7 kg |
| System Fans | 8 x 80x80x38mm (15000rpm) |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Packaging Content | 1 x G291-Z20 1 x CPU heatsinks 1 x Rail kit |
| Part Numbers | - Barebone with rail kit: 6NG291Z20MR-00-1* - Motherboard: 9MZ21G20NR-00-1* - Tool-less rail kit: 25HB2-A86102-K0R - CPU heatsink: 25ST1-153104-A8R - Power supply: 25EP0-222001-D0S * C19 type power cord 125V/15A (US): 25CP1-018000-Q0R (as an option) * C19 type power cord 250V/16A (EU): 25CP3-01830H-Q0R (as an option) * C19 type power cord 250V/15A (US): 25CP1-018300-Q0R (as an option) - 2 x Internal SSD kit: 6NG291281SR-00 (as an option) |
