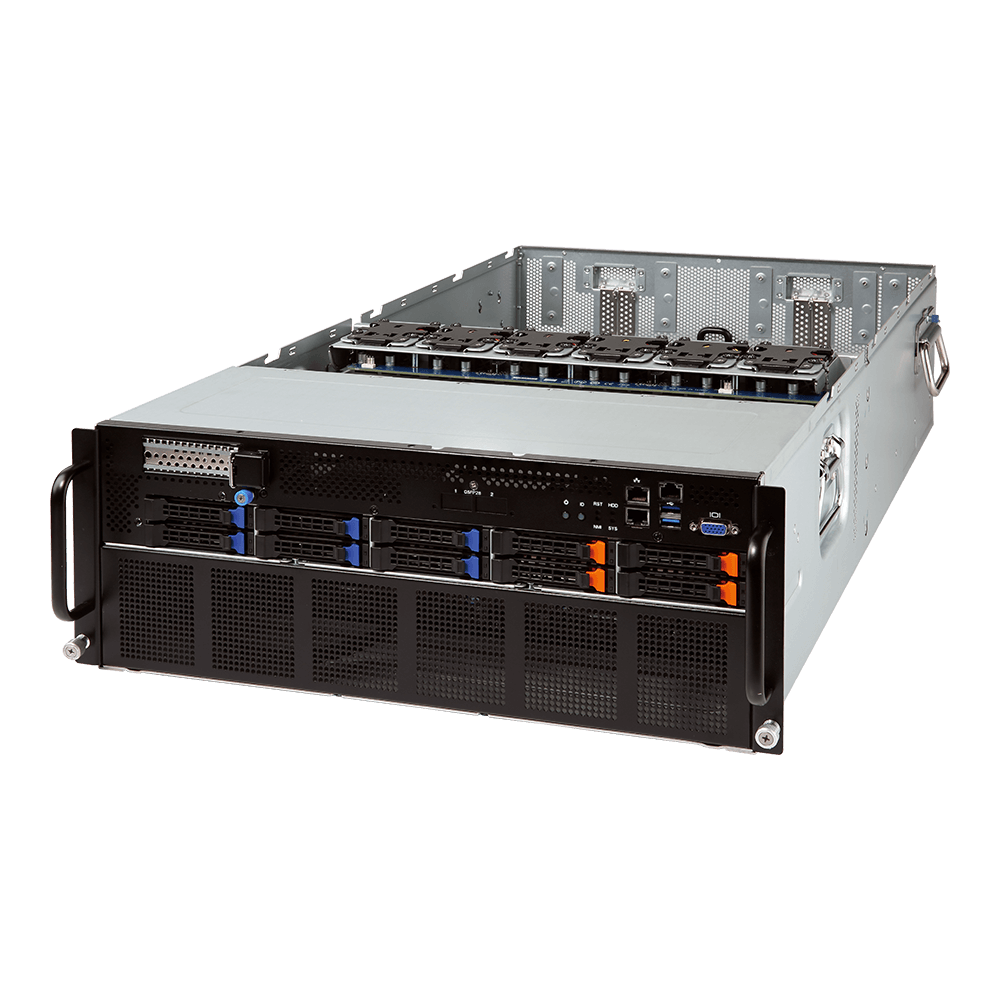

G481-S80 (rev. 100/200)
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 4U |
| 最大GPU数 | |
| 電源仕様 | リダンダント電源 |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Dimensions (WxHxD, mm) | 4U 448 x 176 x 880 |
|---|---|
| Motherboard | MG61-G40 |
| CPU | 2nd Generation Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors Intel® Xeon® Platinum Processor, Intel® Xeon®Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor NOTE: If only 1 CPU is installed, some PCIe and memory functions might be unavailable |
| Socket | 2 x LGA 3647 Socket P TDP up to 205W |
| Chipset | Intel® C621 Express Chipset |
| Memory | 24 x DIMM slots DDR4 memory supported only 6-channel memory architecture RDIMM modules up to 64GB supported LRDIMM modules up to 128GB supported Supports Intel® Optane™ DC Persistent Memory (DCPMM) 1.2V modules: 2933( 1DPC)/2666/2400/2133 MHz Maximum verified DCPMM configuration: * Ambient temperature 35°C * 2nd Generation Intel® Xeon® Scalable processor 205W (Max.) * DCPMM 256GB x12 pcs DCPMM installation locations: DIMM_P0_( A1, B1, C1) DIMM_P0_( D1, E1, F1) DIMM_P1_( G1, H1, I1) DIMM_P1_( J1, K1, L1) NOTE: 1. 2933MHz for 2nd Generation Intel® Xeon® Scalable Processors only 2. Intel® Optane™ DC Persistent Memory for 2nd Generation Intel® Xeon® Scalable Processors only 3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 35°C 4. To enquire about installing a greater number of DCPMM, please consult with your GIGABYTE technical or sales representative |
| LAN | Rear Side: 1 x 10/100/1000 management LAN (in option) Front Side: 2 x 1Gb/s BASE-T LAN ports (Intel® I350-AM2) 1 x 10/100/1000 management LAN * 4 x QSFP28 LAN ports with Intel® Omni-Path Host Fabric Interface (as an option) - Provides 25Gb/s bandwidth per port, total 100Gb/s bandwidth with 4 QSFP28 LAN ports * NOTE: Please select Intel® Xeon processors with Omni-Path Architecture to enable Intel® Omni-Path Host Fabric Interface |
| Video | Integrated in Aspeed® AST2500 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp, DDR4 SDRAM |
| Storage | 10 x 2.5" hot-swappable HDD/SSD bays - 2 x amber HDD trays compatible with NVMe devices only - 2 x amber HDD trays compatible with NVMe, SATA/SAS devices - 6 x blue HDD trays compatible with SATA/SAS devices only SAS card is required to enable SAS devices support |
| SATA | Supported |
| SAS | - |
| RAID | For SATA/SAS drives: Intel® SATA RAID 0/1/10/5 For NVMe drives: Intel® Virtual RAID On CPU (VROC) RAID 0, 1, 10, 5 Note: VROC module is compatible for Intel®SSD only |
| Peripheral Drives | - |
| Expansion Slots | 8 x SXM2 sockets (Gen3 x16 bus) for NVIDIA Tesla® V100 SXM2 modules Rear Side: 4 x PCIe x16 (Gen3 x16 bus) Half-length low-profile slots 1 x OCP mezzanine slot - PCIe Gen3 x8 - Type1, P1, P2, P3, P4, K2, K3 - Dedicated for GIGABYTE LAN Cards only Front Side: 1 x PCIe x16 (Gen3 x8 bus) Half-length low-profile slot |
| Internal I/O | 1 x TPM header 1 x VROC connector 1 x Front VGA header 1 x Serial header |
| Front I/O | 2 x USB 3.0 1 x VGA (Primary port) 3 x RJ45 4 x Omni-Path QSFP28 LAN ports (Reserved) 1 x Power button with LED 1 x ID button with LED 1 x Reset button 1 x NMI button 1 x System status LED 1 x HDD access LED 1 x Omni-Path activity LED |
| Rear I/O | 1 x MLAN (Reserved, enabled by cable switch) |
| Backplane I/O | 2 x ports compatible with NVMe only 2 x hybrid ports compatible with NVMe, SATA/SAS 6 x ports compatible with SATA/SAS only |
| TPM | 1 x TPM header with SPI interface Optional TPM2.0 kit: CTM010 |
| Power Supply | 4 x 2200W redundant PSUs
80 PLUS Platinum
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V +12.12V/ 178.1A +12Vsb/ 3.5A NOTE: The system power supply requires C19 type power cord |
| System Management | Aspeed® AST2500 management controller Avocent® MergePoint IPMI 2.0 web interface:
|
| OS Compatibility | For Skylake processors: Windows Server 2012 R2 with Update Windows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 6.9 (x64) or later Red Hat Enterprise Linux 7.3 (x64) or later Red Hat Enterprise Linux 8.0 (x64) or later SUSE Linux Enterprise Server 11.4 (x64) or later SUSE Linux Enterprise Server 12.2 (x64) or later SUSE Linux Enterprise Server 15 (x64) or later Ubuntu 16.04.1 LTS (x64) or later Ubuntu 18.04 LTS (x64) or later VMware ESXi 6.0 Update3 or later VMware ESXi 6.5 or later VMware ESXi 6.7 or later Citrix Xenserver 7.1.0 CU2 or later Citrix Xenserver 7.4.0 or later Citrix Hypervisor 8.0.0 For Cascade Lake processors: Windows Server 2012 R2 with Update Windows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 7.6 (x64) or later Red Hat Enterprise Linux 8.0 (x64) or later SUSE Linux Enterprise Server 12.3 (x64) or later SUSE Linux Enterprise Server 15 (x64) or later Ubuntu 18.04 LTS (x64) or later VMware ESXi 6.0 Update3 or later VMware ESXi 6.5 Update2 or later VMware ESXi 6.7 Update1 or later Citrix Xenserver 7.1.0 CU2 or later Citrix Xenserver 7.5.0 or later Citrix Hypervisor 8.0.0 |
| Weight | Net Weight: 39 kg Gross Weight: 58.1 kg |
| System Fans | 6 x 60x60x76mm (21,700rpm) |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Packaging Content | 1 x G481-S80 8 x SXM2 heatsinks 2 x CPU heatsinks 1 x Rail kit 2 x Non-Fabric CPU carrier |
| Part Numbers | Barebone with rail kit: 6NG481S80MR-00 - Motherboard: 9MG61G40NR-00 - VROC module: 25FD0-R181N0-10R - Rail kit: 25HB2-420100-CGR - SXM2 heatsink: 25ST1-353208-F2R (Front Side) / 25ST1-353209-F2R (Rear Side) - CPU heatsink: 25ST1-323206-A0R - Power supply: 25EP0-222001-D0S - C19 type power cord 125V/15A (US): 25CP1-018000-Q0R (in option) - C19 type power cord 250V/16A (EU): 25CP3-01830H-Q0R (in option) - C19 type power cord 250V/15A (US): 25CP1-018300-Q0R (in option) |
