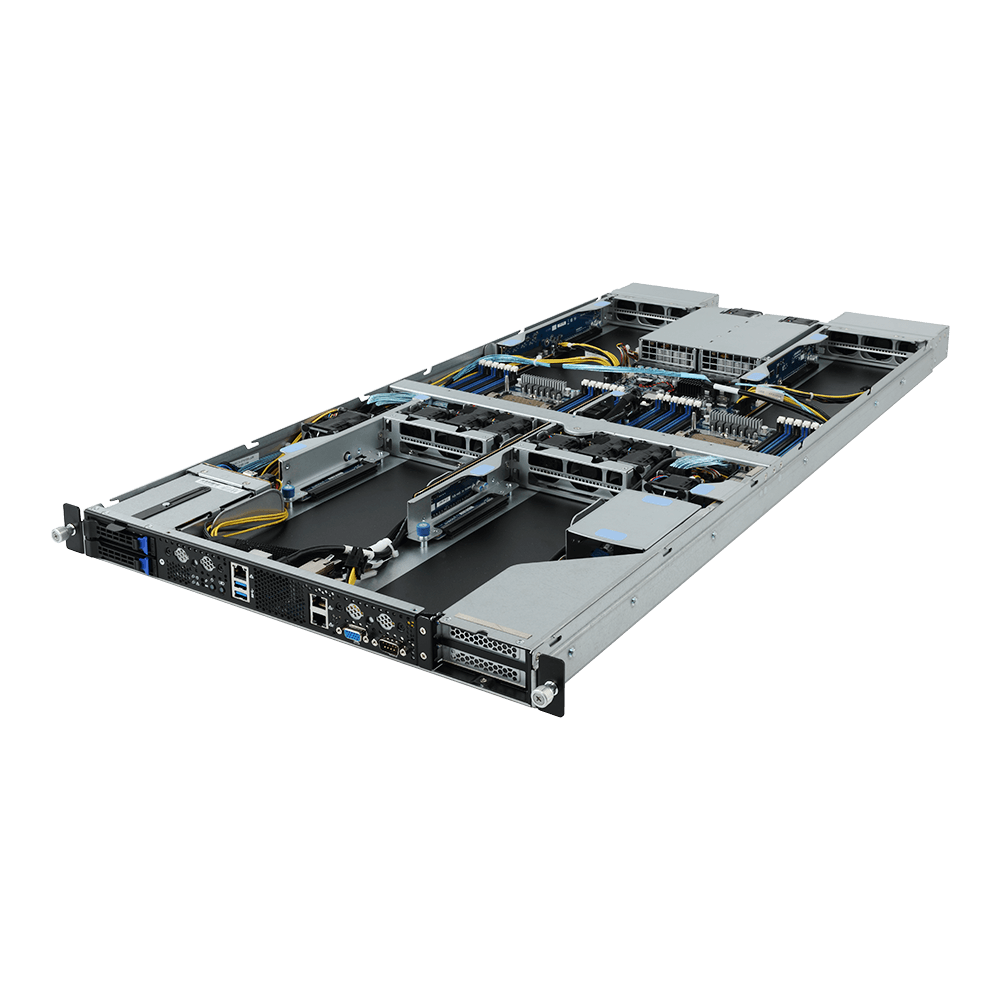

G191-H44 (rev. 100/200)
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 1U |
| 最大GPU数 | |
| 電源仕様 | リダンダント電源 |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Dimensions (WxHxD, mm) | 1U 430 x 43.5 x 900 mm |
|---|---|
| Motherboard | MG31-G10 |
| CPU | 2nd Generation Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor CPU TDP up to 205W NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable |
| Socket | 2 x LGA 3647 Socket P |
| Chipset | Intel® C621 Express Chipset |
| Memory | 24 x DIMM slots DDR4 memory supported only 6-channel memory architecture RDIMM modules up to 64GB supported LRDIMM modules up to 128GB supported Supports Intel® Optane™ DC Persistent Memory (DCPMM) 1.2V modules: 2933( 1DPC)/2666/2400/2133 MHz Maximum verified DCPMM configuration: * Ambient temperature 35°C * 2nd Generation Intel® Xeon® Scalable processor 165W (Max.) * DCPMM 256GB x12 pcs DCPMM installation locations: DIMM_P0_( A1, B1, C1) DIMM_P0_( D1, E1, F1) DIMM_P1_( G1, H1, I1) DIMM_P1_( J1, K1, L1) NOTE: 1. 2933MHz for 2nd Generation Intel® Xeon® Scalable Processors only 2. Intel® Optane™ DC Persistent Memory for 2nd Generation Intel® Xeon® Scalable Processors only 3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 35°C 4. To enquire about installing a greater number of DCPMM, please consult with your GIGABYTE technical or sales representative |
| LAN | 2 x GbE LAN ports (Intel® I350-AM2) 1 x 10/100/1000 management LAN |
| Video | Integrated in Aspeed® AST2500 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp, DDR4 SDRAM |
| Audio | - |
| Storage | 2 x 2.5" hot-swappable HDD/SSD bays 2 x 2.5" internal fixed HDD/SSD bays SAS card is required for SAS devices support |
| SATA | 4 x SATA III 6Gb/s ports |
| SAS | Depends on SAS add-on Card |
| RAID | Intel® SATA RAID 0/1/5/10 |
| Peripheral Drives | - |
| Expansion Slots | 4 x Full-length full-height x16 slots (Gen3 x16 bus) for GPU cards 2 x half-length low-profile slots - 2 x PCI-e x16 slot (Gen3 x16 bus)* * PCIe Gen3 x8 shared with 2 x U.2 ports (optional) - System must be operated under 30°C when 4 x Tesla PCIe GPUs are installed with a 173W or higher CPU - System is validated for population with a uniform GPU model - Support is not provided for mixed GPU populations |
| Internal I/O | 2 x CRPS power connectors 2 x RJ45 LAN connectors 1 x TPM header 1 x Front VGA header 1 x Clear CMOS jumper 1 x ME update jumper |
| Front I/O | 2 x USB 3.0 2 x RJ45 1 x MLAN 1 x VGA 1 x Serial 1 x Power button with LED 1 x ID button with LED 1 x Reset button 1 x NMI button 1 x System status LED 1 x HDD activity LED |
| Rear I/O | - |
| Backplane I/O | 2 x SATA/SAS ports Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s or PCIe Gen3 x4 per port |
| TPM | 1 x TPM header with SPI interface Optional TPM2.0 kit: CTM010 |
| Power Supply | 2 x 2000W redundant PSU 80 PLUS Platinum AC Input: - 100-120V~/ 12A, 50-60Hz - 180-240V~/ 10A, 50-60Hz DC Input: - 240Vdc/ 10A DC output: - 1000W@100-120V, +12.2V/ 81.5A, +12Vsb/ 2.5A - 1600W@180-199V, +12.2V/ 131A, +12Vsb/ 2.5A - 1800W@200-220V, +12.2V/ 147.5A, +12Vsb/ 2.5A - 2000W@221-240V, +12V/ 163.5A, +12Vsb/ 2.5A |
| System Management | Aspeed® AST2500 management controller Avocent® MergePoint IPMI 2.0 web interface:
|
| OS Compatibility | For Skylake processors: Windows Server 2012 R2 with Update Windows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 6.9 (x64) or later Red Hat Enterprise Linux 7.3 (x64) or later Red Hat Enterprise Linux 8.0 (x64) or later SUSE Linux Enterprise Server 11.4 (x64) or later SUSE Linux Enterprise Server 12.2 (x64) or later SUSE Linux Enterprise Server 15 (x64) or later Ubuntu 16.04.1 LTS (x64) or later Ubuntu 18.04 LTS (x64) or later VMware ESXi 6.0 Update3 or later VMware ESXi 6.5 or later VMware ESXi 6.7 or later Citrix Xenserver 7.1.0 CU2 or later Citrix Xenserver 7.4.0 or later Citrix Hypervisor 8.0.0 For Cascade Lake processors: Windows Server 2012 R2 with Update Windows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 7.6 (x64) or later Red Hat Enterprise Linux 8.0 (x64) or later SUSE Linux Enterprise Server 12.3 (x64) or later SUSE Linux Enterprise Server 15 (x64) or later Ubuntu 18.04 LTS (x64) or later VMware ESXi 6.0 Update3 or later VMware ESXi 6.5 Update2 or later VMware ESXi 6.7 Update1 or later Citrix Xenserver 7.1.0 CU2 or later Citrix Xenserver 7.5.0 or later Citrix Hypervisor 8.0.0 |
| Weight | Net Weight: 15.7 kg Gross Weight: 26.84 kg |
| System Fans | 10 x 40x40x56mm (25,000rpm) 3 x 40x40x28mm (25,000rpm) |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Packaging Dimensions | 1145 x 195 x 748 mm |
| Packaging Content | 1 x G191-H44 2 x CPU heatsinks 1 x Rail kit |
| Part Numbers | Barebone package: 6NG191H44MR-00-200 Spare parts list: - Rail kit: 25HB2-NJ2101-N1R - Back plane board: 9CBPG021NR-00 - Front IO board: 9CFPG013NR-00 - Fan module (40x28): 25ST2-442827-D0R - Fan module (40x56): 25ST2-405620-D0R - Power supply: 25EP0-220009-L0S - NVMe cable for U.2 support: 25CFM-300801-A4R (as an option) |
