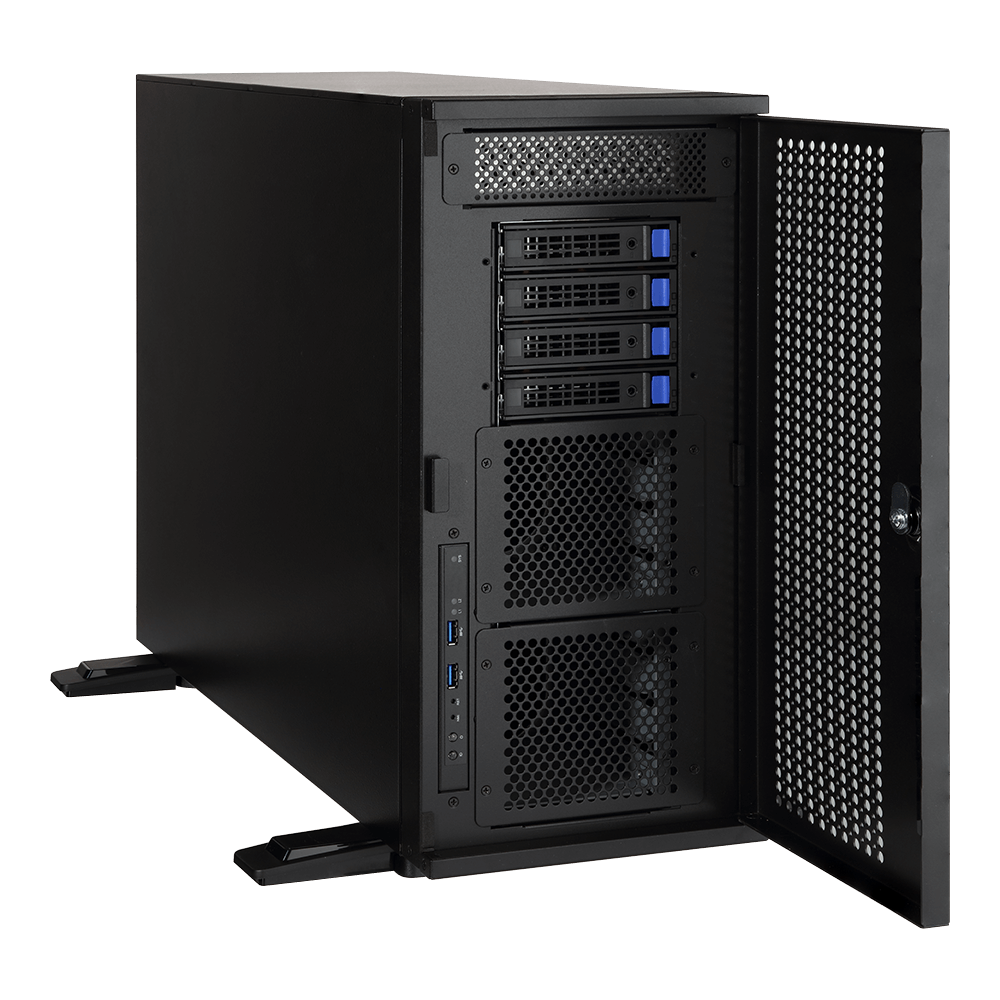

W291-Z00 (rev. 100)
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | タワー |
| 最大GPU数 | |
| 電源仕様 | リダンダント電源 |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Dimensions (WxHxD, mm) | Pedestal 200 x 450.2 x 642.2 mm |
|---|---|
| Motherboard | MZ01-CE1 |
| CPU | AMD EPYC™ 7001 series processor family Single processor, 14nm Up to 32-core, 64 threads TDP up to 200W |
| Socket | Socket SP3 |
| Chipset | System on Chip |
| Memory | 8 x DIMM slots DDR4 memory supported only 8-Channel memory architecture RDIMM modules up to 64GB supported LRDIMM modules up to 128GB supported Memory speed: 2666/2400/2133 MHz |
| LAN | 2 x 1Gb/s LAN ports (Intel® I210-AT) 1 x 10/100/1000 management LAN |
| Video | Integrated in Aspeed® AST2500 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp |
| Audio | - |
| Storage | 4 x 3.5" / 2.5" SATAIII hot-swappable HDD/SSD bays SAS card is required for SAS devices support |
| RAID | Depends on SAS Add-on card |
| Peripheral Drives | 1 x 5.25" space reserved for ODD device |
| Expansion Slots | Slot_7 (PCIe_7): 1 x PCIe x16 (Gen3 x16 bus) Slot_5 (PCIe_5): 1 x PCIe x16 (Gen3 x16 bus) Slot_4 (PCIe_4): 1 x PCIe x8 (Gen3 x8 bus) Slot_3 (PCIe_3): 1 x PCIe x16 (Gen3 x16 bus) Slot_1 (PCIe_1): 1 x PCIe x16 (Gen3 x16 bus) 1 x M.2 slot: - M-key - PCIe Gen3 x4 - Supports NGFF-2242/2260/2280/22110 cards |
| Internal I/O | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 4 x SlimSAS connectors 1 x M.2 slot 1 x CPU fan headers 6 x System fan headers 1 x USB 3.0 header 2 x COM headers 1 x TPM header 1 x Front panel header 1 x HDD back plane board header 1 x PMBus connector 1 x IPMB connector 1 x Clear CMOS jumper 1 x BIOS recovery jumper |
| Front I/O | 2 x USB 3.0 1 x Power button with LED 1 x ID button with LED 1 x Reset button 1 x NMI button 1 x System status LED 2 x LAN activity LEDs Hard drive cage: 1 x HDD power on LED 1 x HDD activity LED 1 x HDD key lock |
| Rear I/O | 2 x USB 3.0 1 x VGA 2 x RJ45 1 x MLAN 1 x ID switch with LED 1 x Power switch with LED |
| TPM | 1 x TPM header with LPC interface Optional TPM2.0 kit: CTM000 |
| Power Supply | 2 x 1600W redundant PSUs 80 PLUS Platinum AC Input: - 100-127V~/ 12A, 47-63Hz - 200-240V~/ 9.48A, 47-63Hz DC Output: - Max 1000W/ 100-127V +12V/ 82A +12Vsb/ 2.1A - Max 1600W/ 200-240V +12V/ 132A +12Vsb/ 2.1A |
| System Management | Aspeed® AST2500 management controller GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
|
| OS Compatibility | Windows Server 2012 R2 with Update Windows Server 2016 Red Hat Enterprise Linux 7.4 (x64) or later Red Hat Enterprise Linux 8.0 (x64) or later SUSE Linux Enterprise Server 11.4 (x64) or later SUSE Linux Enterprise Server 12.3 (x64) or later SUSE Linux Enterprise Server 15 (x64) or later Ubuntu 16.04 LTS (x64) or later Ubuntu 18.04 LTS (x64) or later VMware ESXi 6.5 Update1 or later VMware ESXi 6.7 or later Citrix Xenserver 7.1.0 CU2 or later Citrix Xenserver 7.4.0 or later Citrix Hypervisor 8.0.0 |
| Weight | Net Weight: 19.5 kg Gross Weight: 23 kg |
| System Fans | 3 x 120x120x38mm (8,500 rpm) 1 x 92x92x25mm ( Attached in HDD cage) |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Packaging Dimensions | 348 x 691 x 791 mm |
| Packaging Content | 1 x W291-Z00 1 x Heatsink 1 x Quick Installation guide |
| Part Numbers | Barebone package: 6NW291Z00MR-00-1*
Part Numbers:
- Motherboard: 9MZ01CE1NR-00-1* - I/O shield: 12AIO-MZ01C1-00R - Power supply: 25EP0-216007-L0S - Fan-sink: 12SF2-01A067-00R - Mylar for AMD VEGA64 passive HS version: 25HA1-W29101-S5R (as an option) |
