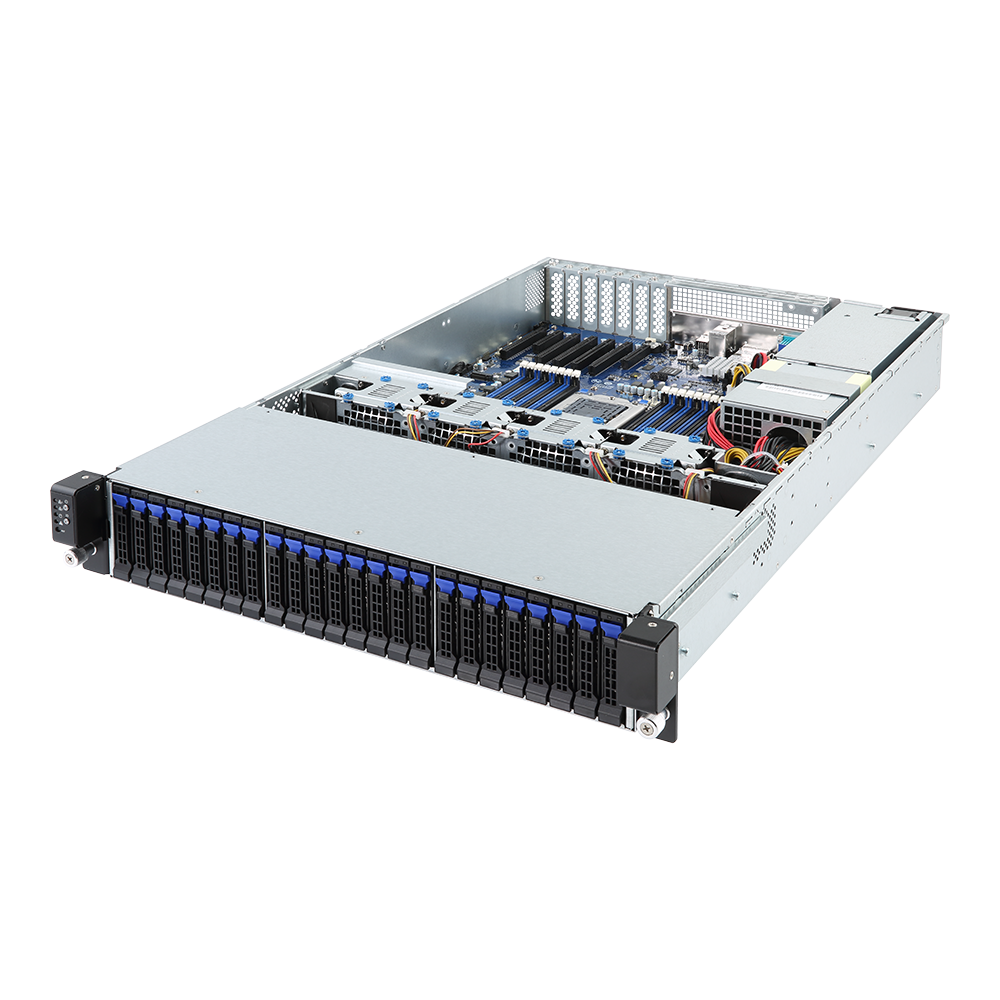

R271-Z31 (rev. 100)
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 2U |
| 最大GPU数 | |
| 電源仕様 | リダンダント電源 |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Dimensions (WxHxD, mm) | 2U 430 x 87 x 710 mm |
|---|---|
| Motherboard | MZ31-AR0 |
| CPU | AMD EPYC™ 7001 series processor family Single processor, 14nm, Socket SP3 Up to 32-core, 64 threads TDP up to 200W |
| Chipset | System on Chip |
| Memory | 16 x DIMM slots DDR4 memory supported only 8-Channel memory architecture RDIMM modules up to 64GB supported LRDIMM modules up to 128GB supported Memory speed: 2666(1DPC)/2400/2133* MHz - Note: Memory speed run at 2133MHz when 1R/2R memory modules are fully populated |
| LAN | 2 x SFP+ 10Gb/s LAN ports (Broadcom® BCM 57810S) 1 x 10/100/1000 management LAN |
| Video | Integrated in Aspeed® AST2500 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp |
| Audio | - |
| Storage | 24 x 2.5" SATA/SAS hot-swappable HDD/SSD bays 16 x 2.5" SATA/SAS drives available by default setting Default hard drives location: From left to right, HDD_0 to HDD_7 and HDD_12 to HDD_19 SAS card is required for SAS devices support |
| RAID | - |
| Peripheral Drives | - |
| Expansion Slots | Slot_7: 1 x PCIe x8 (Gen3 x8 bus) slot Slot_6: 1 x PCIe x16 (Gen3 x16 bus) slot Slot_5: 1 x PCIe x16 (Gen3 x8 bus) slot Slot_4: 1 x PCIe x16 (Gen3 x16 bus) slot Slot_3: 1 x PCIe x16 (Gen3 x16 bus) slot Slot_2: 1 x PCIe x8 (Gen3 x8 bus) slot Slot_1: 1 x PCIe x16 (Gen3 x16 bus) slot All PCIe slots support low profile HBAs 1 x M.2 slot: - M-key - PCIe Gen3 x4 - Supports NGFF-2280/2260/2242 cards |
| Internal I/O | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 4 x SlimSAS connectors 1 x M.2 slot 2 x CPU fan headers 5 x System fan headers 1 x USB 3.0 header 1 x USB 2.0 header 1 x COM_2 header 1 x TPM header 1 x Front panel header 2 x LAN activity LED 1 x HDD back plane board header 1 x PMBus connector 1 x IPMB connector 1 x Clear CMOS jumper 1 x BIOS recovery jumper 1 x Buzzer |
| Front I/O | 1 x Power button with LED 1 x ID button with LED 1 x Reset button 1 x System status LED 1 x HDD activity LED 2 x LAN activity LEDs |
| Rear I/O | 2 x USB 3.0 2 x USB 2.0 1 x VGA 1 x COM_1 2 x SFP+ 1 x MLAN 1 x ID button with LED |
| Backplane I/O | Backplane P/N: 9CBP20O1NR-00 Speed and bandwidth: SAS 12Gb/s, SATA 6Gb/s |
| TPM | 1 x TPM header with LPC interface Optional TPM2.0 kit: CTM000 |
| Power Supply | 2 x 800W redundant PSUs 80 PLUS Platinum AC input: - 100-240V, 50-60Hz, 10-4A DC input: - 240Vdc, 4.5A DC output: - 800W |
| System Management | Aspeed® AST2500 management controller Avocent® MergePoint IPMI 2.0 web interface:
|
| OS Compatibility | Windows Server 2012 R2 with Update Windows Server 2016 Red Hat Enterprise Linux 7.4 (x64) or later Red Hat Enterprise Linux 8.0 (x64) or later SUSE Linux Enterprise Server 11.4 (x64) or later SUSE Linux Enterprise Server 12.3 (x64) or later SUSE Linux Enterprise Server 15 (x64) or later Ubuntu 16.04 LTS (x64) or later Ubuntu 18.04 LTS (x64) or later VMware ESXi 6.5 Update1 or later VMware ESXi 6.7 or later Citrix Xenserver 7.1.0 CU2 or later Citrix Xenserver 7.4.0 or later Citrix Hypervisor 8.0.0 |
| Weight | 21 kg (barebone) |
| System Fans | 4 x 80x80x38mm (14900rpm) |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Packaging Dimensions | 982 x 588 x 268 (mm) |
| Packaging Content | 1 x R271-Z31 system 1 x CPU heatsink 1 x Quick Installation Guide 1 x Rail kit |
| Part Numbers | Rackmount: 6NR271Z31MR-00-1* Motherboard: 9MZ31AR0NR-00-1* CPU heatsink: 25ST1-15320E-J1R Back plane board: 9CBP20O1NR-00 Fan module: 25ST2-883825-S0S Power supply: 25EP0-208001-L0S Power Supply PDB: 25EP0-207508-L0S Rail Kit: 25HB2-3A6101-K0R |
