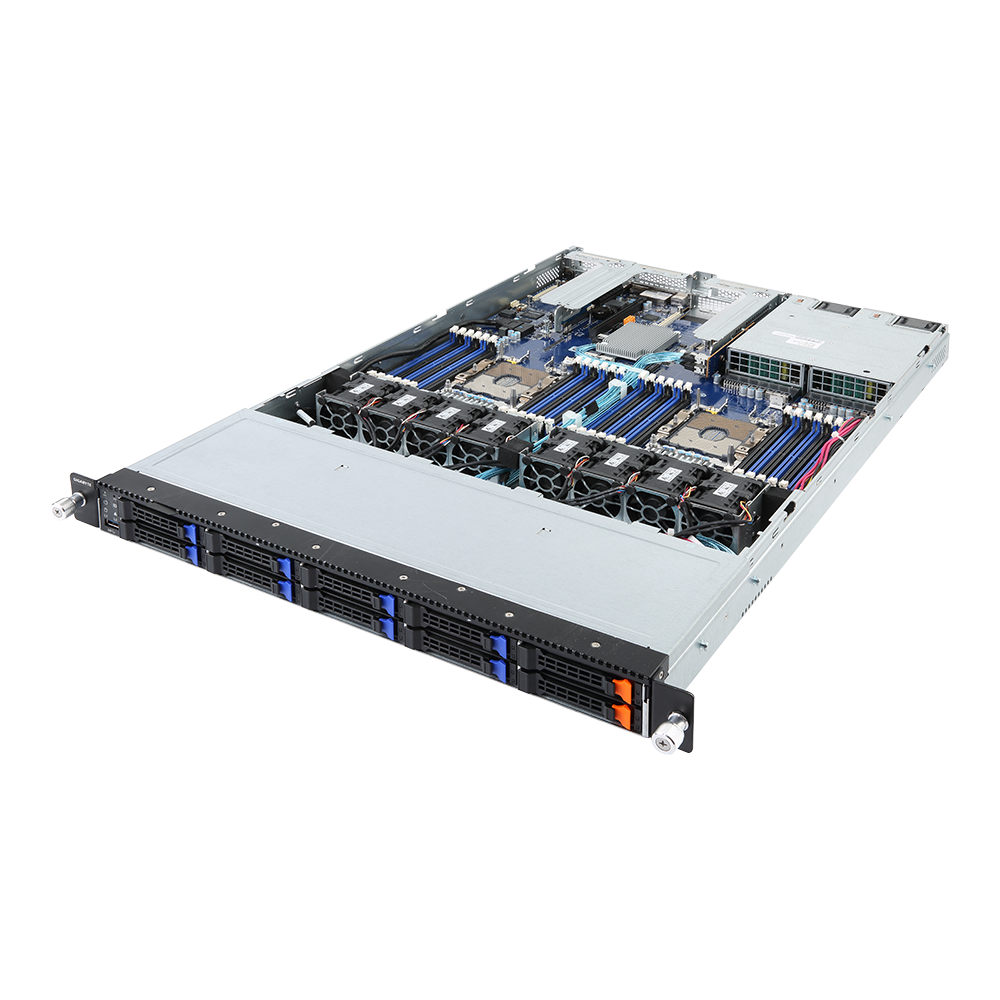

R181-N20 (rev. 100)
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 1U |
| 最大GPU数 | |
| 電源仕様 | リダンダント電源 |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Dimensions (WxHxD, mm) | 1U 438 x 43.5 x 730 |
|---|---|
| Motherboard | MR91-FS0 |
| CPU | 2nd Generation Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor CPU TDP up to 205W NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable |
| Socket | 2 x LGA 3647 Socket P |
| Chipset | Intel® C621 Express Chipset |
| Memory | 24 x DIMM slots DDR4 memory supported only 6-channel memory architecture RDIMM modules up to 64GB supported LRDIMM modules up to 128GB supported Supports Intel® Optane™ DC Persistent Memory (DCPMM) 1.2V modules: 2933( 1DPC)/2666/2400/2133 MHz Maximum verified DCPMM configuration: * Ambient temperature 35°C * 2nd Generation Intel® Xeon® Scalable processor 205W (Max.) * DCPMM 256GB x12 pcs DCPMM installation locations: DIMM_P0_( A1, B1, C1) DIMM_P0_( D1, E1, F1) DIMM_P1_( G1, H1, I1) DIMM_P1_( J1, K1, L1) NOTE: 1. 2933MHz for 2nd Generation Intel® Xeon® Scalable Processors only 2. Intel® Optane™ DC Persistent Memory for 2nd Generation Intel® Xeon® Scalable Processors only 3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 35°C 4. To enquire about installing a greater number of DCPMM, please consult with your GIGABYTE technical or sales representative |
| LAN | 2 x 1Gb/s LAN ports (Intel® I350-AM2) 1 x 10/100/1000 management LAN |
| Video | Integrated in Aspeed® AST2500 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp, DDR4 SDRAM |
| Audio | - |
| Storage | 2 x 2.5" U.2 or SATA/SAS hybrid ports, 8 x 2.5" SATA/SAS hot-swappable HDD/SSD bays SAS card is required for SAS devices support |
| SATA | 2 x 7-pin SATA III 6Gb/s with SATA DOM supported By using pin_8 or external cable for power function |
| SAS | Supported via add-on SAS Card |
| RAID | Intel® SATA RAID 0/1/10/5 Intel® Virtual RAID On CPU (VROC) RAID 0, 1 Note: VROC module is compatible for Intel®SSD only |
| Peripheral Drives | - |
| Expansion Slots | Riser Card CRS1021: - 2 x PCIe x8 slots (Gen3 x8), Low profile half-length Riser Card CRS1015: - 1 x PCIe x16 slot (Gen3 x16), Low profile half-length 2 x OCP mezzanine slots - PCIe Gen3 x16 - Type1, P1, P2, P3, P4, K2, K3 |
| Internal I/O | 2 x Power supply connectors 4 x SlimSAS connectors 2 x SATA 7-pin connectors 2 x CPU fan headers 1 x USB 3.0 header 1 x TPM header 1 x VROC connector 1 x Front panel header 1 x HDD back plane board header 1 x IPMB connector 1 x Clear CMOS jumper 1 x BIOS recovery jumper |
| Front I/O | 1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button 2 x LAN activity LEDs 1 x HDD activity LED 1 x System status LED |
| Rear I/O | 2 x USB 3.0 1 x VGA 1 x COM (RJ45 type) 2 x RJ45 1 x MLAN 1 x ID button with LED |
| Backplane I/O | 2 x U.2 ports Bandwidth: PCIe Gen3 x4 per port 8 or 10 x SATA/SAS ports Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port |
| TPM | 1 x TPM header with LPC interface Optional TPM2.0 kit: CTM000 |
| Power Supply | 2 x 1200W redundant PSUs 80 PLUS Platinum AC Input: - 100-240V~/ 12-7A, 50-60Hz DC Input: - 240Vdc/ 6A DC Output: - Max 1000W/ 100-240V~ +12V/ 80.5A +12Vsb/ 3A - Max 1200W/ 200-240V~ or 240Vdc input +12V/ 97A +12Vsb/ 3A |
| System Management | Aspeed® AST2500 management controller Avocent® MergePoint IPMI 2.0 web interface:
|
| OS Compatibility | For Skylake processors: Windows Server 2012 R2 with Update Windows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 6.9 (x64) or later Red Hat Enterprise Linux 7.3 (x64) or later Red Hat Enterprise Linux 8.0 (x64) or later SUSE Linux Enterprise Server 11.4 (x64) or later SUSE Linux Enterprise Server 12.2 (x64) or later SUSE Linux Enterprise Server 15 (x64) or later Ubuntu 16.04.1 LTS (x64) or later Ubuntu 18.04 LTS (x64) or later VMware ESXi 6.0 Update3 or later VMware ESXi 6.5 or later VMware ESXi 6.7 or later Citrix Xenserver 7.1.0 CU2 or later Citrix Xenserver 7.4.0 or later Citrix Hypervisor 8.0.0 For Cascade Lake processors: Windows Server 2012 R2 with Update Windows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 7.6 (x64) or later Red Hat Enterprise Linux 8.0 (x64) or later SUSE Linux Enterprise Server 12.3 (x64) or later SUSE Linux Enterprise Server 15 (x64) or later Ubuntu 18.04 LTS (x64) or later VMware ESXi 6.0 Update 3 or later VMware ESXi 6.5 Update 2 or later VMware ESXi 6.7 Update 1 or later Citrix Xenserver 7.1.0 CU2 or later Citrix Xenserver 7.5.0 or later Citrix Hypervisor 8.0.0 |
| Weight | 13 kg |
| System Fans | 8 x 40x40x56mm (23'000rpm) |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Packaging Dimensions | 959 x 588 x 248 mm |
| Packaging Content | 1 x R181-N20 2 x CPU heatsinks 1 x Rail kit 1 x VROC module 2 x Non-Fabric CPU carrier |
| Part Numbers | Barebone package: 6NR181N20MR-00
