| Dimension |
107.6(W) x 56.1(H) x 114.4 (D) mm |
| Motherboard |
MZBAYVA |
| CPU |
Intel Atom processor E3815
Single core, 22nm
1.46GHz
512Kb cache
5W TDP |
| Socket |
1 x BGA 1170 |
| Flash Memory |
4GB of eMMC memory |
| Memory |
1 x SO-DIMM slot
DDR3L memory
Up to 8GB
1067Mhz
2GB DDR3L memory pre-installed |
| LAN |
1 x GbE LAN port (Realtek RTL8111G) |
| Video |
Intel HD Graphics |
| Audio |
- |
| Storage |
1 x 2.5" HDD/SSD internal bay |
| SATA |
1 x SATA II 3Gb/s port |
| Expansion Slots |
1 x Full-size Mini-PCIe slot
Occupied by WiFi + Bluetooth card (Azurewave® AW-NB159H) |
| Front I/O |
1 x USB 3.0
1 x USB 2.0
1 x MicroSD card slot |
| Rear I/O |
1 x Serial DB-9
1 x RJ45
1 x HDMI 1.4a
1 x DC-In
1 x Kensington lock slot |
| Internal I/O |
1 x RTC header
1 x System fan header
1 x LPC (80h) header
1 x LVDS connector
1 x USB 2.0 header
1 x SATA power connector
1 x System power connector |
| TPM |
- |
| Power Supply |
External power adapter:
12V
2.5A
30W
100~240VA
|
| OS Supported |
Windows 7 32bit / 64bit
Windows 8.1 32bit / 64bit
Android 4.4
Fedora 20 |
| Weight |
400g |
| System Fans |
Fanless |
| Operating Properties |
Operating temperature: 0°C to 35°C
Operating humidity: 0%-85% (non-condensing)
Non-operating temperature: -20°C to 60°C
Non-operating humidity: 0%-85% (non-condensing) |
| Ordering Information |

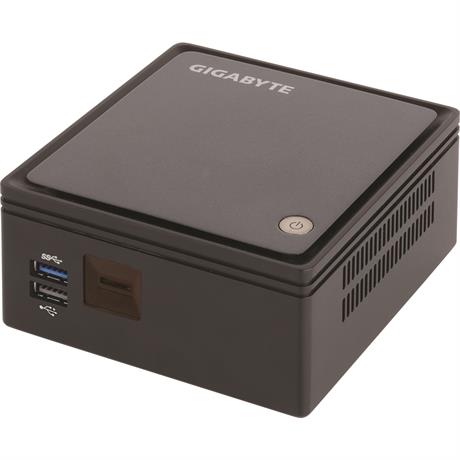

L10 System: 9BTCV1AMR-SI
Power adapter: 25EP2-500303-A3S |
