製品情報

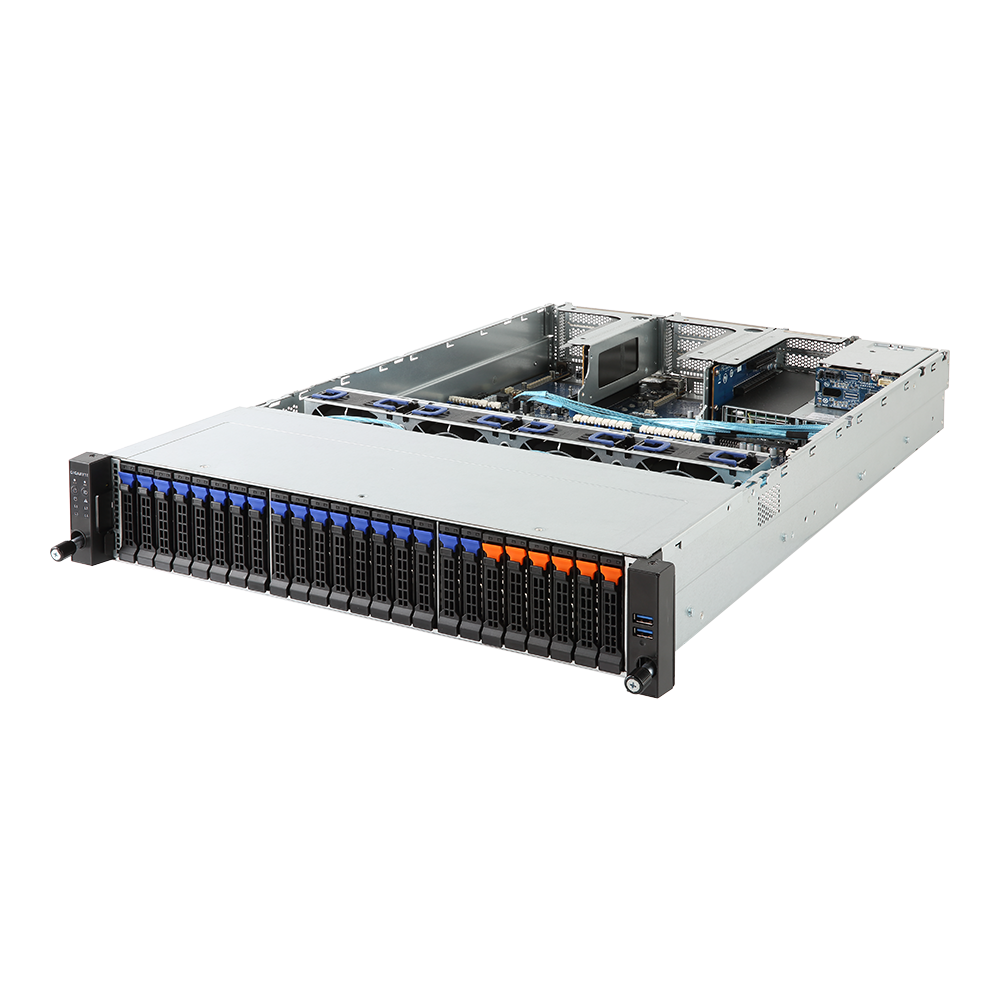

R281-Z91 (rev. 200)

製品種別 サーバ
CPUソケット数
CPU
筐体サイズ 2U
最大GPU数
電源仕様 リダンダント電源
用途/特長
製品説明

製品仕様

Dimensions (WxHxD, mm) 2U
438 x 87 x 710
Motherboard MZ91-FS0
CPU AMD EPYC™ 7001 series processor family
Dual processors, 14nm, Socket SP3
Up to 32-core, 64 threads per processor
TDP up to 200W

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Chipset System on Chip
Memory 32 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Memory speed: 2666(1DPC)/2400/2133* MHz

- Note:
Memory speed run at 2133MHz when 1R/2R memory modules are fully populated
LAN 2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 management LAN
Video Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio -
Storage Front side: 6 x 2.5" U.2, 18 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
Rear side: 2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
LSI SAS35x36 expander
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port
Default configuration supports:
6 x U.2, 0 x SAS/SATA drives
SAS card is required to enable the drive bays
RAID For SAS/SATA supported only
Depends on RAID card
Peripheral Drives -
Expansion Slots Riser Card CRS2133:
- 1 x PCIe x16 slot (Gen3 x16 or x8), Full height half-length
- 1 x PCIe x8 slots (Gen3 x0 or x8), Full height half-length
- 1 x PCIe x8 slots (Gen3 x8), Full height half-length

Riser Card CRS2134:
- 1 x PCIe x16 slot (Gen3 x16 or x8), Full height half-length
- 1 x PCIe x8 slots (Gen3 x0 or x8), Full height half-length
- 1 x PCIe x8 slots (Gen3 x8), Full height half-length, Occupied by CNV3122, 2 x U.2 ports

Riser Card CRS2124:
- 1 x PCIe x8 slots (Gen3 x0 or x8), Low profile half-length
- 1 x PCIe x16 slot (Gen3 x16 or x8), Low profile half-length

2 x OCP mezzanine slots
- PCIe Gen3 x16
- Type1, P1, P2, P3, P4, K2, K3

1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280 cards
Internal I/O 6 x SlimSAS connectors
1 x M.2 slot
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
7 x PCIe expansion slots
2 x OCP mezzanine slots
2 x Power supply connectors
1 x Front panel header
1 x Back plane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Front I/O 2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
Rear I/O 2 x USB 3.0
1 x VGA
1 x COM (RJ45 type)
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane I/O Front side_CBP20O5: 18 x SATA/SAS and 6 x NVMe ports
Rear side_CBP2020: 2 x SATA/SAS ports (connected to SAS expander)
Front side_CEP26O0: 18 x SATA/SAS expander
TPM 1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000
Power Supply 2 x 1200W redundant PSUs
80 PLUS Platinum

AC Input:
- 100-240V~/ 12-7A, 50-60Hz
DC Input:
- 240Vdc/ 6A

DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1200W/ 200-240V~ or 240Vdc input
+12V/ 97A
+12Vsb/ 3A
System Management Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface:

  • Network settings
  • Network security settings
  • Hardware information
  • Users control
  • Services settings
  • IPMI settings
  • Sessions control
  • LDAP settings
  • Power control
  • Fan profiles
  • Voltages, fans and temperatures monitoring
  • System event log
  • Events management (platform events, trap settings, email settings)
  • Serial Over LAN
  • vKVM & vMedia (HTML5)
OS Compatibility Windows Server 2012 R2 with Update
Windows Server 2016

Red Hat Enterprise Linux 7.4 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later

SUSE Linux Enterprise Server 11.4 (x64) or later
SUSE Linux Enterprise Server 12.3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later

Ubuntu 16.04 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later

VMware ESXi 6.5 Update1 or later
VMware ESXi 6.7 or later

Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0
Weight 22 kg
System Fans 4 x 80x80x38mm (16'300rpm)
Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions 982 x 588 x 268 mm
Packaging Content 1 x R281-Z91
2 x CPU heatsinks
1 x Rail kit
Part Numbers Barebone package: 6NR281Z91MR-00-2*
Part Numbers:
- Motherboard: 9MZ91FS0NR-00-1*
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Back plane board_24-port: 9CBP20O5NR-00
- Back plane board_2-port: 9CBP2020NR-00
- Back plane board_U.2 type: 9CEP26O0NR-00
- Front panel board: 9CFP2001NR-00
- Power supply: 25EP0-212007-F3S
- RJ45 type COM cable: 25CR0-200400-Y4R (in option)
- Riser card - CRS2133: 9CRS2133NR-00
- Riser card - CRS2134: 9CRS2134NR-00
- Riser card - CRS2124: 9CRS2124NR-00
