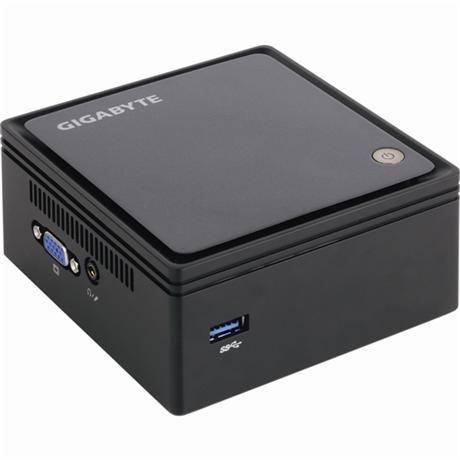

GB-BXBT-3825 (rev. 1.0)
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | その他 |
| 最大GPU数 | |
| 電源仕様 | |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Operating Properties | Operating temperature: 0°C to 35°C Operating humidity: 0%-90% (non-condensing) Non-operating temperature: -20°C to 60°C Non-operating humidity: 0%-95% (non-condensing) |
|---|---|
| CPU | Intel Atom processor E3825 Dual core, 22nm 1.33GHz 1MB cache 6W TDP |
| Socket | 1 x BGA 1170 |
| Memory | 1 x SO-DIMM slot 1.35V DDR3L memory Up to 8GB 1067Mhz 2GB DDR3L 1600Mhz memory module in option Please contact region sales for detailed configuration |
| LAN | 1 x GbE LAN port (Realtek RTL8111G) |
| Video | Intel HD graphics Max. resolution via HDMI: 1920 x 1080 @ 60Hz Max. resolution via VGA: 2560 x 1600 @ 60Hz |
| Audio | Realtek ALC283 |
| SATA | 1 x SATA II 3Gb/s port |
| Expansion Slots | 1 x Half-size mini PCIe slot Pre-installed: - 1 x WiFi + Bluetooth card - Azurewave AW-NB159H |
| Internal I/O | 1 x SATA III 3Gb/s port 1 x Storage connector (20-pin) 1 x GPIO header |
| Rear I/O | 2 x USB 2.0 1 x HDMI-Out 1 x RJ45 1 x DC-in |
| OS Compatibility | Windows 7 (32bit / 64bit) Windows 8.1 (32bit / 64bit) Wind River Linux 7 |
| Power Supply | AC 100~240V 12V DC-In 30W/2.5A |
| Packaging Content | 9BKMA2WMR-00: 1 x 2.5" hard drive 1 x Memory module 1 x Wifi & BT module 1 x Quick starting guide 1 x VESA mount bracket 1 x Power plug adapter 1 x 30W power adapter 6BKMA2WMR-00: 1 x Wifi & BT module 1 x VESA mount bracket 1 x Power plug adapter 1 x 30W power adapter |
| Ordering Information | 10 pieces per carton Packaging dimensions: 411 x 383 x 200mm |
| Storage | 1 x 2.5" HDD/SSD internal bay Supports 7.0 & 9.5 mm HDD/SSD 2.5" Hard drive in option Please contact region sales for detailed configuration |
| Front I/O | 1 x USB 3.0 |
| System Fans | Fanless |
| Dimension | 107.6(W) x 56.1(H) x 114.4(D) mm |
| Motherboard | MZBAYAD 100 x 105 mm |
| Weight | 420g |
| Side I/O | 1 x VGA 1 x Headphone / MIC jack |
