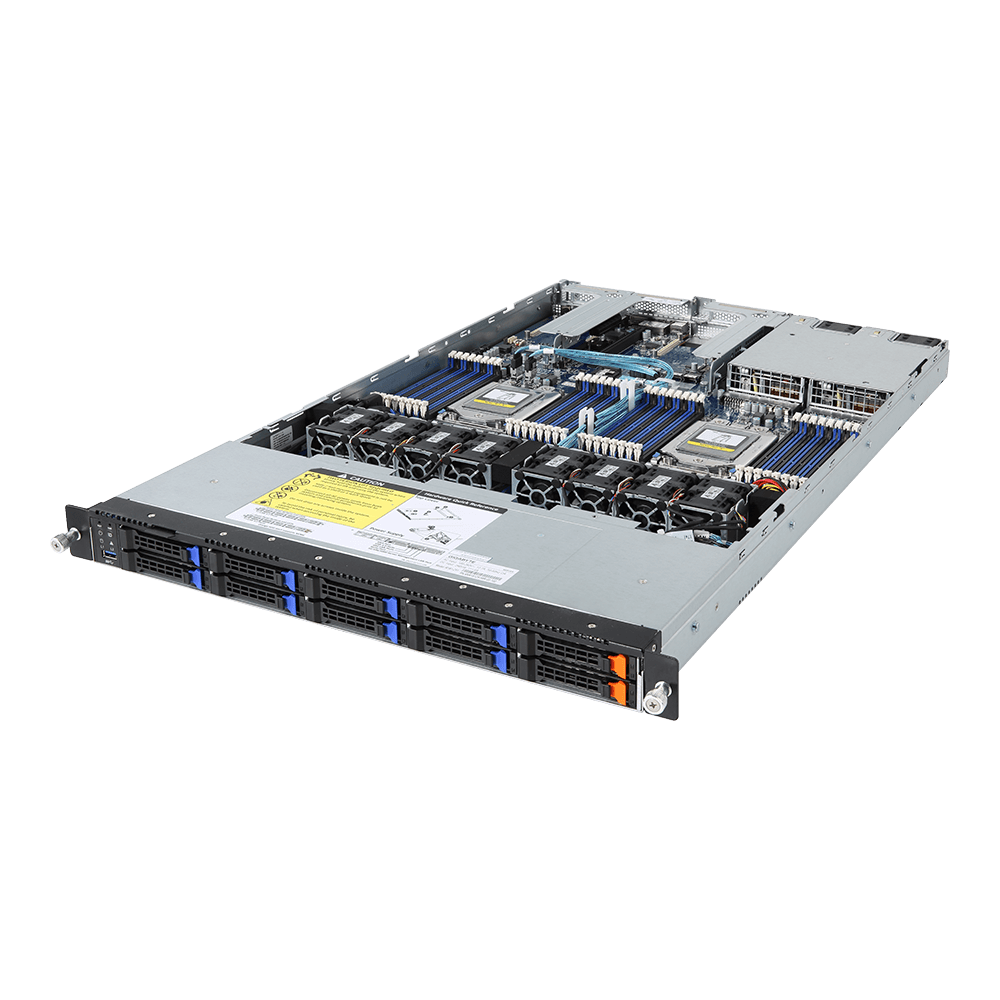

R181-Z91 (rev. 100)
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 1U |
| 最大GPU数 | |
| 電源仕様 | リダンダント電源 |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Dimensions (WxHxD, mm) | 1U 438 x 43.5 x 710 |
|---|---|
| Motherboard | MZ91-FS0 |
| CPU | AMD EPYC™ 7001 series processor family Dual processors, 14nm, Socket SP3 Up to 32-core, 64 threads per processor TDP up to 200W NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable |
| Chipset | System on Chip |
| Memory | 32 x DIMM slots DDR4 memory supported only 8-Channel memory architecture RDIMM modules up to 64GB supported LRDIMM modules up to 128GB supported Memory speed: 2666(1DPC)/2400/2133* MHz - Note: Memory speed run at 2133MHz when 1R/2R memory modules are fully populated |
| LAN | 2 x 1GbE LAN ports (1 x Intel® I350-AM2) 1 x 10/100/1000 management LAN |
| Video | Integrated in Aspeed® AST2500 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp |
| Audio | - |
| Storage | 2 x 2.5" U.2, 8 x 2.5" SATA/SAS hot-swappable HDD/SSD bays SAS card is required for SAS devices support |
| SAS | - |
| RAID | - |
| Peripheral Drives | - |
| Expansion Slots | Riser Card CRS1021: - 2 x PCIe x8 slots (Gen3 x8), Low profile half-length Riser Card CRS1015: - 1 x PCIe x16 slot (Gen3 x16), Low profile half-length 2 x OCP mezzanine slots with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4) 1 x M.2 slot: - M-key - PCIe Gen3 x4 - Supports NGFF-2242/2260/2280 cards |
| Internal I/O | 6 x SlimSAS connectors 1 x M.2 slot 2 x CPU fan headers 1 x USB 3.0 header 1 x TPM header 5 x PCIe expansion slots 2 x OCP mezzanine slots 2 x Power supply connectors 1 x Front panel header 1 x Back plane board header 1 x IPMB connector 1 x Clear CMOS jumper 1 x BIOS recovery jumper |
| Front I/O | 1 x USB 3.0 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 2 x LAN activity LEDs 1 x HDD activity LED 1 x System status LED |
| Rear I/O | 2 x USB 3.0 1 x VGA 1 x COM (RJ45 type) 2 x RJ45 1 x MLAN 1 x ID button with LED |
| Backplane I/O | Backplane P/N: 9CBP10A4NR-00 Speed and bandwidth: 2 x ports for PCIe x4, 8 x ports for SAS 12Gb/s, SATA 6Gb/s |
| TPM | 1 x TPM header with LPC interface Optional TPM2.0 kit: CTM000 |
| Power Supply | 2 x 1200W redundant PSUs 80 PLUS Platinum AC input: - 100-240V/ 12-7A, 50-60Hz - 200-240V/ 7A, 50-60Hz DC output: - 1200W - 12V, 80.5A (100-240V) - 12V, 97A (200-240V) - 12Vsb, 3A |
| System Management | Aspeed® AST2500 management controller Avocent® MergePoint IPMI 2.0 web interface:
|
| OS Compatibility | Windows Server 2012 R2 with Update Windows Server 2016 Red Hat Enterprise Linux 7.4 (x64) or later Red Hat Enterprise Linux 8.0 (x64) or later SUSE Linux Enterprise Server 11.4 (x64) or later SUSE Linux Enterprise Server 12.3 (x64) or later SUSE Linux Enterprise Server 15 (x64) or later Ubuntu 16.04 LTS (x64) or later Ubuntu 18.04 LTS (x64) or later VMware ESXi 6.5 Update1 or later VMware ESXi 6.7 or later Citrix Xenserver 7.1.0 CU2 or later Citrix Xenserver 7.4.0 or later Citrix Hypervisor 8.0.0 |
| Weight | Net Weight: 13 kg Gross Weight: 21 kg |
| System Fans | 8 x 40x40x56mm (23'000rpm) |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Packaging Dimensions | 959 x 588 x 248 mm |
| Packaging Content | 1 x R181-Z91 2 x CPU heatsinks 1 x Rail kit |
| Part Numbers | Barebone package: 6NR181Z91MR-00 Spare parts: - Motherboard: 9MZ91FS0NR-00 - Rail kit: 25HB2-3A0202-K0R - CPU heatsink: 25ST1-15320D-J1R - Back plane board: 9CBP10A4NR-00 - Power supply: 25EP0-212002-F3S - RJ45 type COM cable: 25CR0-200400-Y4R (as an option) - Riser card - CRS1021: 9CRS1021NR-00 - Riser card - CRS1015: 9CRS1015NR-00 |
