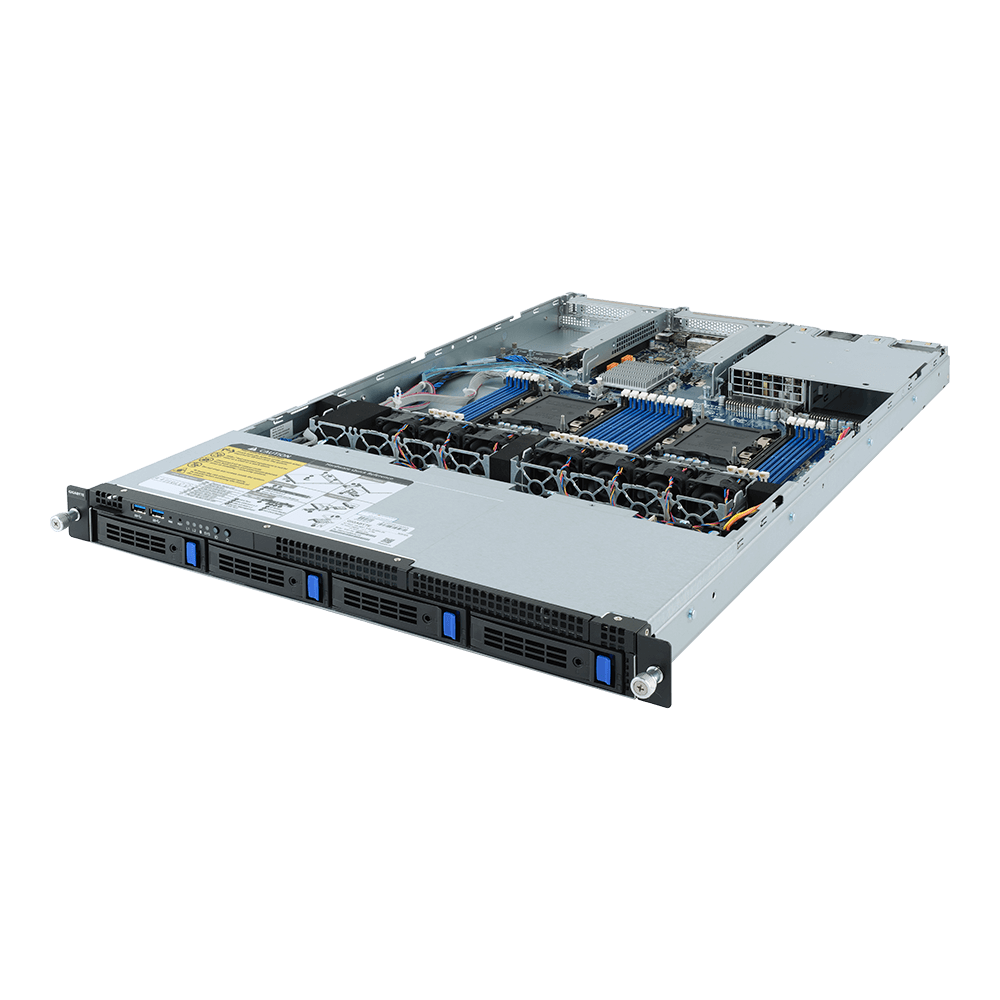

R161-340 (rev. 100/200)
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 1U |
| 最大GPU数 | |
| 電源仕様 | シングル電源 |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Dimensions (WxHxD, mm) | 1U 438 x 43.5 x 730 |
|---|---|
| Motherboard | MR51-CE0 |
| CPU | 2nd Generation Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor CPU TDP up to 125W NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable |
| Socket | 2 x LGA 3647 Socket P |
| Chipset | Intel® C621 Express Chipset |
| Memory | 16 x DIMM slots DDR4 memory supported only 6-channel memory architecture RDIMM modules up to 64GB supported LRDIMM modules up to 128GB supported 1.2V modules: 2933( 1DPC)/2666/2400/2133 MHz NOTE: 2933MHz for 2nd Generation Intel® Xeon® Scalable Processors only |
| LAN | 2 x 1Gb/s LAN ports (Intel® I210-AT) 1 x 10/100/1000 management LAN * 2 x 10Gb/s LAN ports (Intel® X557) as an option * 2 x 25Gb/s SFP28 ports (Mellanox® ConnectX-4 Lx) as an option |
| Video | Integrated in Aspeed® AST2500 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp, DDR4 SDRAM |
| Audio | - |
| Storage | 4 x 3.5" SATA/SAS hot-swappable HDD/SSD bays 2.5" HDD/SSD supported SAS card is required for SAS devices support 1 x 2.5" internal fixed SATA HDD/SSD bay 2 x 2.5" internal fixed SATA HDD/SSD bays as an option |
| SATA | 2 x 7-pin SATA III 6Gb/s with SATA DOM supported By using pin_8 or external cable for power function |
| SAS | Supported via add-on SAS Card |
| RAID | Intel® SATA RAID 0/1/10/5 |
| Peripheral Drives | 1 x Slim type ODD as an option NOTE: For 12.5" ODD modules only |
| Expansion Slots | Riser Card CRS1014: - 1 x PCIe x16 slots (Gen3 x16), Full height half-length Riser Card CRS1015: - 1 x PCIe x16 slot (Gen3 x16), Full height half-length 2 x M.2 slots: - M-key - PCIe Gen3 x4 - Supports NGFF-2260/2280 cards |
| Internal I/O | 2 x Power supply connectors 5 x SlimSAS connectors 2 x SATA 7-pin connectors 2 x CPU fan headers 1 x USB 3.0 header 1 x TPM header 1 x VROC connector 1 x Front panel header 1 x HDD back plane board header 1 x IPMB connector 1 x Clear CMOS jumper 1 x BIOS recovery jumper |
| Front I/O | 2 x USB 3.0 1 x Power button with LED 1 x ID button with LED 1 x Reset button 1 x NMI button 1 x System status LED 1 x HDD activity LED 2 x LAN activity LEDs |
| Rear I/O | 2 x USB 3.0 1 x VGA 1 x COM (as an option) 2 x RJ45 1 x MLAN 1 x ID button with LED |
| Backplane I/O | 4 x SATA/SAS ports Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port |
| TPM | 1 x TPM header with SPI interface Optional TPM2.0 kit: CTM010 |
| Power Supply | 1 x 550W single PSUs 80 PLUS Platinum AC Input: - 100-240V~/ 8-4A, 50-60Hz DC Input: - 240Vdc/ 2.75A DC Output: - 550W +12V/ 44A +12Vsb/ 2.1A * Enable to upgrade to 2 x 550W redundant PSU (see below part numbers column) |
| System Management | Aspeed® AST2500 management controller Avocent® MergePoint IPMI 2.0 web interface:
|
| OS Compatibility | For Skylake processors: Windows Server 2012 R2 with Update Windows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 6.9 (x64) or later Red Hat Enterprise Linux 7.3 (x64) or later Red Hat Enterprise Linux 8.0 (x64) or later SUSE Linux Enterprise Server 11.4 (x64) or later SUSE Linux Enterprise Server 12.2 (x64) or later SUSE Linux Enterprise Server 15 (x64) or later Ubuntu 16.04.1 LTS (x64) or later Ubuntu 18.04 LTS (x64) or later VMware ESXi 6.0 Update3 or later VMware ESXi 6.5 or later VMware ESXi 6.7 or later Citrix Xenserver 7.1.0 CU2 or later Citrix Xenserver 7.4.0 or later Citrix Hypervisor 8.0.0 For Cascade Lake processors: Windows Server 2012 R2 with Update Windows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 7.6 (x64) or later Red Hat Enterprise Linux 8.0 (x64) or later SUSE Linux Enterprise Server 12.3 (x64) or later SUSE Linux Enterprise Server 15 (x64) or later Ubuntu 18.04 LTS (x64) or later VMware ESXi 6.0 Update3 or later VMware ESXi 6.5 Update2 or later VMware ESXi 6.7 Update1 or later Citrix Xenserver 7.1.0 CU2 or later Citrix Xenserver 7.5.0 or later Citrix Hypervisor 8.0.0 |
| Weight | Net Weight: 11.4 kg Gross Weight: 15 kg |
| System Fans | 7 x 40x40x28mm (18'000rpm) |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Packaging Dimensions | 970 x 570 x 220 mm |
| Packaging Content | 1 x R161-340 2 x CPU heatsinks 1 x Rail kit 2 x Non-Fabric CPU carrier |
| Part Numbers | Barebone package: 6NR161340MR-00-100 (Single PSU configuration) 6NR161340MR-00-200 (Dual PSUs configuration) Part Numbers: - Motherboard: 9MR51CE0NR-00 - Rail kit: 25HB2-3A0202-K0R - CPU heatsink: 25ST1-12310Y-T1R - Back plane board: 9CBP1042NR-00 - Front panel board: 9CFP1010NR-00 - Power supply: 25EP0-205501-F3S - ODD kit: 6NR161340SR-00-100 (as an option) - SSD*2 kit: 6NR161341SR-00-100 (as an option) - Riser card - CRS1014: 9CRS1014NR-00 - Riser card - CRS1015: 9CRS1015NR-00 |
