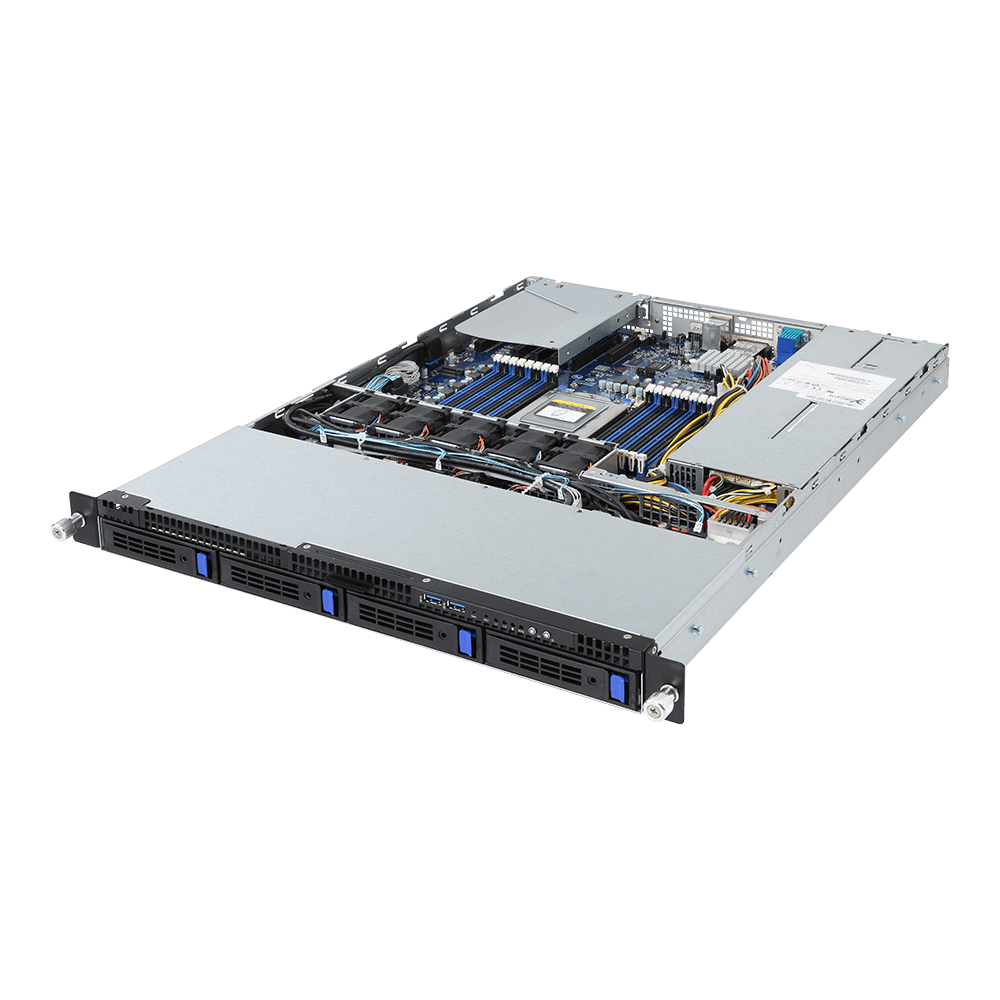

R151-Z30 (rev. A00)

製品種別 サーバ
CPUソケット数
CPU
筐体サイズ 1U
最大GPU数
電源仕様 リダンダント電源
用途/特長
製品説明

製品仕様

Dimensions (WxHxD, mm) 1U
430 x 43.5 x 625 mm
Motherboard MZ31-AR0
CPU AMD EPYC™ 7002 series processor family
Single processor, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
TDP up to 200W

Compatible with AMD EPYC™ 7001 series processor family
Chipset System on Chip
Memory 16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/ 2933 MHz

- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
LAN 2 x SFP+ 10Gb/s LAN ports (Broadcom® BCM 57810S)
1 x 10/100/1000 management LAN
Video Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio -
Storage 4 x 3.5" SATA/SAS hot-swappable HDD/SSD bays
2.5" HDD/SSD supported
SAS card is required for SAS devices support
RAID -
Peripheral Drives 1 x Slim type ODD in option
Expansion Slots 1 x Riser card:
- 1 x CRS1013
  * 1 x Full-height half-length slot with PCIe x16 (Gen3 x16 bus) slot

1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2280/2260/2242 cards
Internal I/O 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
4 x SlimSAS connectors
1 x M.2 slot
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
2 x LAN activity LED
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer
Front I/O 2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
Rear I/O 2 x USB 3.0
2 x USB 2.0
1 x VGA
1 x COM_1
2 x SFP+
1 x MLAN
1 x ID button with LED
Backplane I/O 4 x SATA/SAS ports
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port
SAS card is required for SAS devices support
TPM 1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000
Power Supply 2 x 650W redundant power supply
80 PLUS Platinum

AC input:
- 100-240Vac, 50-60Hz, 10-5A

DC input:
- 190-310Vdc, 5-3A

DC output:
- 650W
System Management Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • JAVA Based Serial Over LAN
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility For AMD EPYC™ 7002 series processor family

Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019

Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later

SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later

Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later

VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later

For AMD EPYC™ 7001 series processor family

Windows Server 2012 R2 with Update
Windows Server 2016

Red Hat Enterprise Linux 7.4 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later

SUSE Linux Enterprise Server 11.4 (x64) or later
SUSE Linux Enterprise Server 12.3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later

Ubuntu 16.04 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later

VMware ESXi 6.5 Update1 or later
VMware ESXi 6.7 or later

Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0
Weight 13 kg (barebone)
System Fans 5 x 40x40x56mm (23000rpm)
Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions 959 x 588 x 248 (mm)
Packaging Content 1 x R151-Z30 system
1 x CPU heatsink
1 x Quick Installation Guide
1 x Rail kit
Part Numbers Server unit: 6NR151Z30MR-00-A*
Motherboard: 9MZ31AR0NR-00-2*
Rail Kit: 25HB2-3A6101-K0R
CPU heatsink: 25ST1-44320G-A0R
Power supply: 25EP0-206504-F3S
Power Supply PDB: 25EP1-206500-F3S
