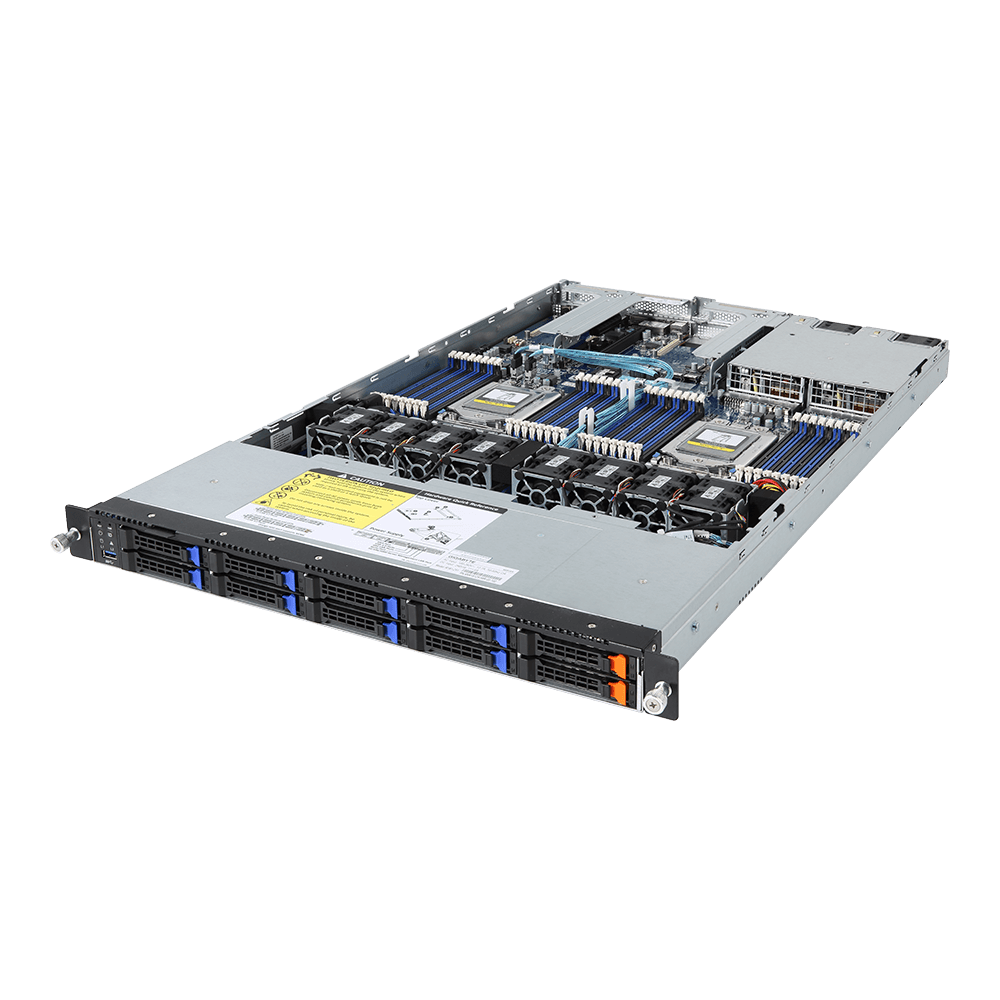

R181-Z91 (rev. A00)

製品種別 サーバ
CPUソケット数
CPU
筐体サイズ 1U
最大GPU数
電源仕様 リダンダント電源
用途/特長
製品説明

製品仕様

Dimensions (WxHxD, mm) 1U
438 x 43.5 x 710
Motherboard MZ91-FS0
CPU AMD EPYC™ 7002 series processor family
Dual processors, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
TDP up to 200W

Compatible with AMD EPYC™ 7001 series processor family

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Chipset System on Chip
Memory 32 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/ 2933 MHz

- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
LAN 2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 management LAN
Video Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio -
Storage 2 x 2.5" U.2, 8 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
SAS card is required for SAS devices support
SAS -
RAID -
Peripheral Drives -
Expansion Slots Riser Card CRS1021:
- 2 x PCIe x8 slots (Gen3 x8), Low profile half-length

Riser Card CRS1015:
- 1 x PCIe x16 slot (Gen3 x16), Low profile half-length

2 x OCP mezzanine slots with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4)

1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280 cards
Internal I/O 6 x SlimSAS connectors
1 x M.2 slot
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
5 x PCIe expansion slots
2 x OCP mezzanine slots
2 x Power supply connectors
1 x Front panel header
1 x Back plane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Front I/O 1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
Rear I/O 2 x USB 3.0
1 x VGA
1 x COM (RJ45 type)
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane I/O Backplane P/N: 9CBP10A4NR-00
Speed and bandwidth:
2 x ports for PCIe x4, 8 x ports for SAS 12Gb/s, SATA 6Gb/s
TPM 1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000
Power Supply 2 x 1200W redundant PSUs
80 PLUS Platinum

AC input:
- 100-240V/ 12-7A, 50-60Hz
- 200-240V/ 7A, 50-60Hz

DC output:
- 1200W
- 12V, 80.5A (100-240V)
- 12V, 97A (200-240V)
- 12Vsb, 3A
System Management Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • JAVA Based Serial Over LAN
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility For AMD EPYC™ 7002 series processor family

Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019

Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later

SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later

Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later

VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later

For AMD EPYC™ 7001 series processor family

Windows Server 2012 R2 with Update
Windows Server 2016

Red Hat Enterprise Linux 7.4 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later

SUSE Linux Enterprise Server 11.4 (x64) or later
SUSE Linux Enterprise Server 12.3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later

Ubuntu 16.04 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later

VMware ESXi 6.5 Update1 or later
VMware ESXi 6.7 or later

Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0
Weight Net Weight: 13 kg
Gross Weight: 21 kg
System Fans 8 x 40x40x56mm (23'000rpm)
Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions 959 x 588 x 248 mm
Packaging Content 1 x R181-Z91
2 x CPU heatsinks
1 x Rail kit
Part Numbers Barebone package: 6NR181Z91MR-00-A*
Spare parts:
- Motherboard: 9MZ91FS0NR-00-2*
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320D-J1R
- Back plane board: 9CBP10A4NR-00
- Power supply: 25EP0-212002-F3S
- RJ45 type COM cable: 25CR0-200400-Y4R (as an option)
- Riser card - CRS1021: 9CRS1021NR-00
- Riser card - CRS1015: 9CRS1015NR-00
