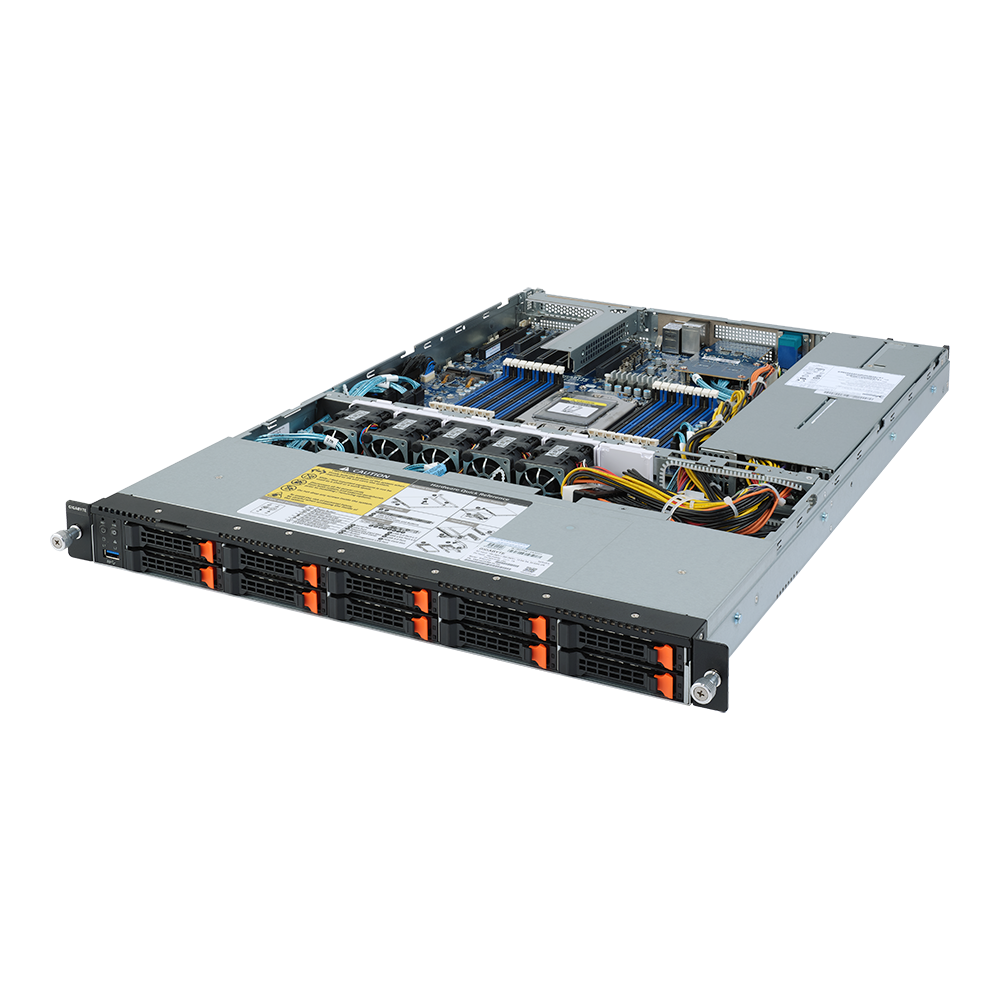

R152-Z32 (rev. 100)

製品種別 サーバ
CPUソケット数
CPU 　
筐体サイズ 1U
最大GPU数
電源仕様 リダンダント電源
用途/特長 　　
製品説明

製品仕様

Dimensions (WxHxD, mm) 1U
438 x 43.5 x 710
Motherboard MZ32-AR0
CPU AMD EPYC™ 7002 series processor family
Single processor, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
cTDP up to 240W

Compatible with AMD EPYC™ 7001 series processor family
Chipset System on Chip
Memory 16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/ 2933 MHz

- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
LAN 2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 management LAN
Video Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio -
Storage 10 x 2.5" NVMe hot-swappable SSD bays
SAS -
RAID -
Peripheral Drives -
Expansion Slots Riser Card CRS101D:
- 1 x PCIe x16 slot (Gen4 x16), Low profile half-length

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4)
- Occupied by CNVO124, 4 x NVMe HBA

2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280 cards
Internal I/O 2 x M.2 slots
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer
Front I/O 1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
Rear I/O 3 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane I/O Backplane P/N: 9CBP10A3NR-00
Speed and bandwidth:
PCIe Gen3 x4
TPM 1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply 2 x 1100W redundant power supply
80 PLUS Platinum

AC Input:
- 100-240V~/ 12-6A, 50-60Hz
DC Input:
- 190-310Vdc/ 7A

DC Output:
- Max 850W/ 100-240Vac~
+12V/ 70A
+5Vsb/ 3A
- Max 1100W/ 200-240Vac
+12V/ 90.5A
+5Vsb/ 3A
System Management Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • JAVA Based Serial Over LAN
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019

Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later

SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later

Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later

VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
Weight Net Weight: 11.74 kg
Gross Weight: 20.32 kg
System Fans 5 x 40x40x56mm (23'000rpm)
Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions 985 x 588 x 250 mm
Packaging Content 1 x R152-Z32
1 x CPU heatsink
1 x Rail kit
Part Numbers Barebone package: 6NR152Z32MR-00
Spare parts:
- Motherboard: 9MZ32AR0NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-44320G-A0R
- Back plane board: 9CBP10A3NR-00
- OCP NVMe Card: 9CNVO124NR-00
- Fan module: 25ST2-44562G-D0R
- Power supply: 25EP0-201100-F3S
