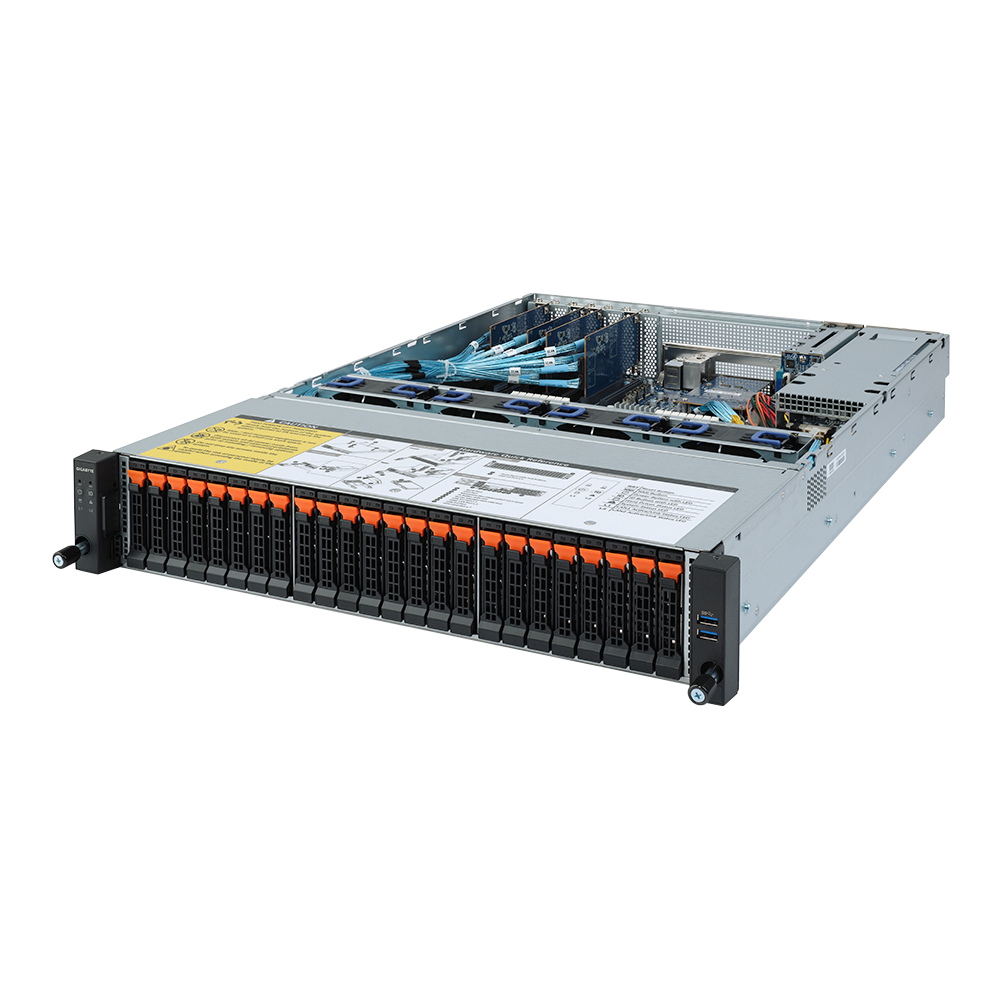

R272-Z32 (rev. 100)

製品種別 サーバ
CPUソケット数
CPU 　
筐体サイズ 2U
最大GPU数
電源仕様 リダンダント電源
用途/特長 　　
製品説明

製品仕様

Dimensions (WxHxD, mm) 2U
438 x 87.5 x 660 mm
Motherboard MZ32-AR0
CPU AMD EPYC™ 7002 series processor family
Single processor, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
cTDP up to 240W

Compatible with AMD EPYC™ 7001 series processor family
Chipset System on Chip
Memory 16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/ 2933 MHz

- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
LAN 2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 management LAN
Video Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio -
Storage Total 26 x 2.5" hot-swappable HDD/SSD bays
- Front side: 24 x 2.5" NVMe hot-swappable SSD bays
- Rear side: 2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
RAID -
Peripheral Drives -
Expansion Slots Total 6 x low profile PCIe Gen4 / Gen3 expansion slots
Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot; Occupied by CNV3024, 4 x NVMe HBA
Slot_5: 1 x PCIe x16 (Gen4 x8 bus) slot
Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot; Occupied by CNV3024, 4 x NVMe HBA
Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot; Occupied by CNV3024, 4 x NVMe HBA
Slot_2: 1 x PCIe x8 (Gen3 x0 or x8 bus) slot; no function
Slot_1: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot; Occupied by CNV3024, 4 x NVMe HBA

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16; Occupied by CNVO124, 4 x NVMe HBA

2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280 cards
Internal I/O 2 x M.2 slots
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer
Front I/O 2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
Rear I/O 3 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane I/O Front side_CBP20O5: 24 x NVMe ports
Rear side_CBP2021: 2 x SATA/SAS ports
Speed and bandwidth: PCIe Gen3 x4 per port
TPM 1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply 2 x 1200W redundant PSUs
80 PLUS Platinum

AC Input:
- 100-240V~/ 12-7A, 50-60Hz
DC Input:
- 240Vdc/ 6A

DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1200W/ 200-240V~ or 240Vdc input
+12V/ 97A
+12Vsb/ 3A
System Management Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • JAVA Based Serial Over LAN
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019

Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later

SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later

Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later

VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
Weight Net Weight: 17.78 kg
Gross Weight: 24.76 kg
System Fans 4 x 80x80x38mm (16,300rpm)
Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions 982 x 588 x 268 (mm)
Packaging Content 1 x R272-Z32 system
1 x CPU heatsink
1 x Rail kit
Part Numbers Barebone package: 6NR272Z32MR-00
Spare parts:
- Motherboard: 9MZ32AR0NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Back plane board_12-port: 9CBP20O5NR-00
- Back plane board_2-port: 9CBP2021NR-00
- PCIe pass through board: 9CEPM080NR-00
- PCIe NVMe Card: 9CNV3024NR-00
- OCP NVMe Card: 9CNVO124NR-00
- Front panel board: 9CFP2001NR-00
- Fan module: 25ST2-883829-D0R
- Power supply: 25EP0-212003-D0S
