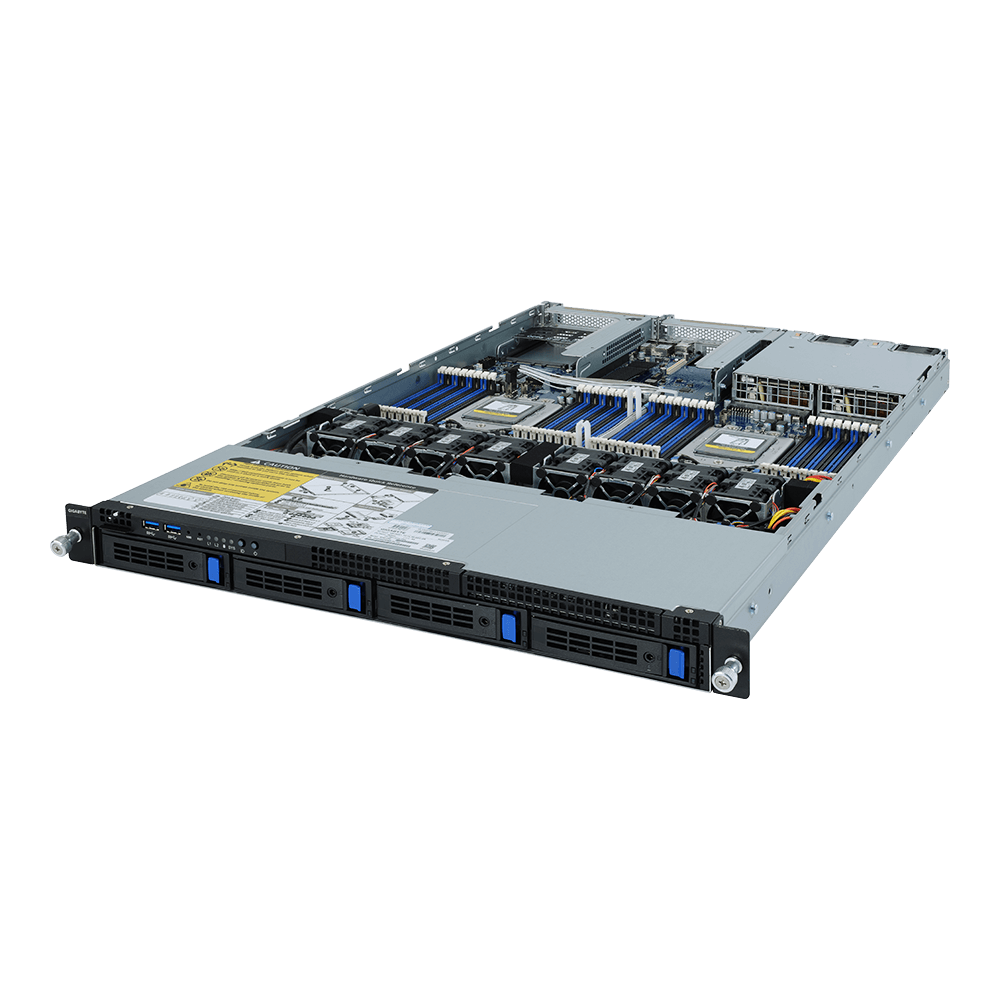

R182-Z90 (rev. 100)
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 1U |
| 最大GPU数 | |
| 電源仕様 | リダンダント電源 |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Dimensions (WxHxD, mm) | 1U 438 x 43.5 x 730 |
|---|---|
| Motherboard | MZ92-FS0 |
| CPU | AMD EPYC™ 7002 series processor family Dual processors, 7nm, Socket SP3 Up to 64-core, 128 threads per processor cTDP up to 240W NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable Compatible with AMD EPYC™ 7001 series processor family |
| Chipset | System on Chip |
| Memory | 32 x DIMM slots DDR4 memory supported only 8-Channel memory per processor architecture RDIMM modules up to 64GB supported LRDIMM modules up to 128GB supported Memory speed: Up to 3200*/ 2933 MHz - Note: * Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC |
| LAN | 2 x 1GbE LAN ports (1 x Intel® I350-AM2) 1 x 10/100/1000 management LAN |
| Video | Integrated in Aspeed® AST2500 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp |
| Audio | - |
| Storage | 4 x 3.5" SATA hot-swappable HDD/SSD bays 2.5" HDD/SSD supported SAS card is required for SAS devices support |
| SAS | - |
| RAID | - |
| Peripheral Drives | 1 x Slim type ODD as an option |
| Expansion Slots | Riser Card CRS101E: - 1 x PCIe x16 slot (Gen4 x16), FHHL Riser Card CRS101E: - 1 x PCIe x16 slot (Gen4 x16), FHHL 1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth from CPU_0 Supported NCSI function 1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth (Type1, P1, P2) Supported NCSI function 1 x M.2 slot: - M-key - PCIe Gen3 x4 - Supports NGFF-2242/2260/2280/22110 cards |
| Internal I/O | 1 x M.2 slot 1 x USB 3.0 header 1 x COM header 1 x TPM header 1 x Front panel header 1 x HDD back plane board header 1 x PMBus connector 1 x IPMB connector 1 x Clear CMOS jumper 1 x BIOS recovery jumper |
| Front I/O | 1 x USB 3.0 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 2 x LAN activity LEDs 1 x HDD activity LED 1 x System status LED |
| Rear I/O | 2 x USB 3.0 1 x VGA 2 x RJ45 1 x MLAN 1 x ID button with LED |
| Backplane I/O | Backplane P/N: 9CBP1042NR-00 Speed and bandwidth: SAS 12Gb/s, SATA 6Gb/s |
| TPM | 1 x TPM header with SPI interface Optional TPM2.0 kit: CTM010 |
| Power Supply | 2 x 1200W redundant PSUs 80 PLUS Platinum AC Input: - 100-240V~/ 12-7A, 50-60Hz DC Input: - 240Vdc/ 6A DC Output: - Max 1000W/ 100-240V~ +12V/ 80.5A +12Vsb/ 3A - Max 1200W/ 200-240V~ or 240Vdc input +12V/ 97A +12Vsb/ 3A |
| System Management | Aspeed® AST2500 management controller GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
|
| OS Compatibility | Windows Server 2016 ( X2APIC/256T not supported) Windows Server 2019 Red Hat Enterprise Linux 7.6 ( x64) or later Red Hat Enterprise Linux 8.0 ( x64) or later SUSE Linux Enterprise Server 12 SP4 ( x64) or later SUSE Linux Enterprise Server 15 SP1 ( x64) or later Ubuntu 16.04.6 LTS (x64) or later Ubuntu 18.04.3 LTS (x64) or later VMware ESXi 6.5 EP15 or later VMware ESXi 6.7 Update3 or later |
| Weight | Net Weight: 13 kg Gross Weight: 22 kg |
| System Fans | 8 x 40x40x56mm (23'000rpm) |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Packaging Dimensions | 985 x 588 x 250 mm |
| Packaging Content | 1 x R182-Z90 2 x CPU heatsinks 1 x Rail kit |
| Part Numbers | Barebone package: 6NR182Z90MR-00 Spare parts: - Motherboard: 9MZ92FS0NR-00 - Rail kit: 25HB2-3A0202-K0R - CPU heatsink: 25ST1-44320G-A0R - Back plane board: 9CBP1042NR-00 - Front panel board: 9CFP1010NR-00 - Fan module: 25ST2-44562F-D0R - Power supply: 25EP0-212007-F3S |
