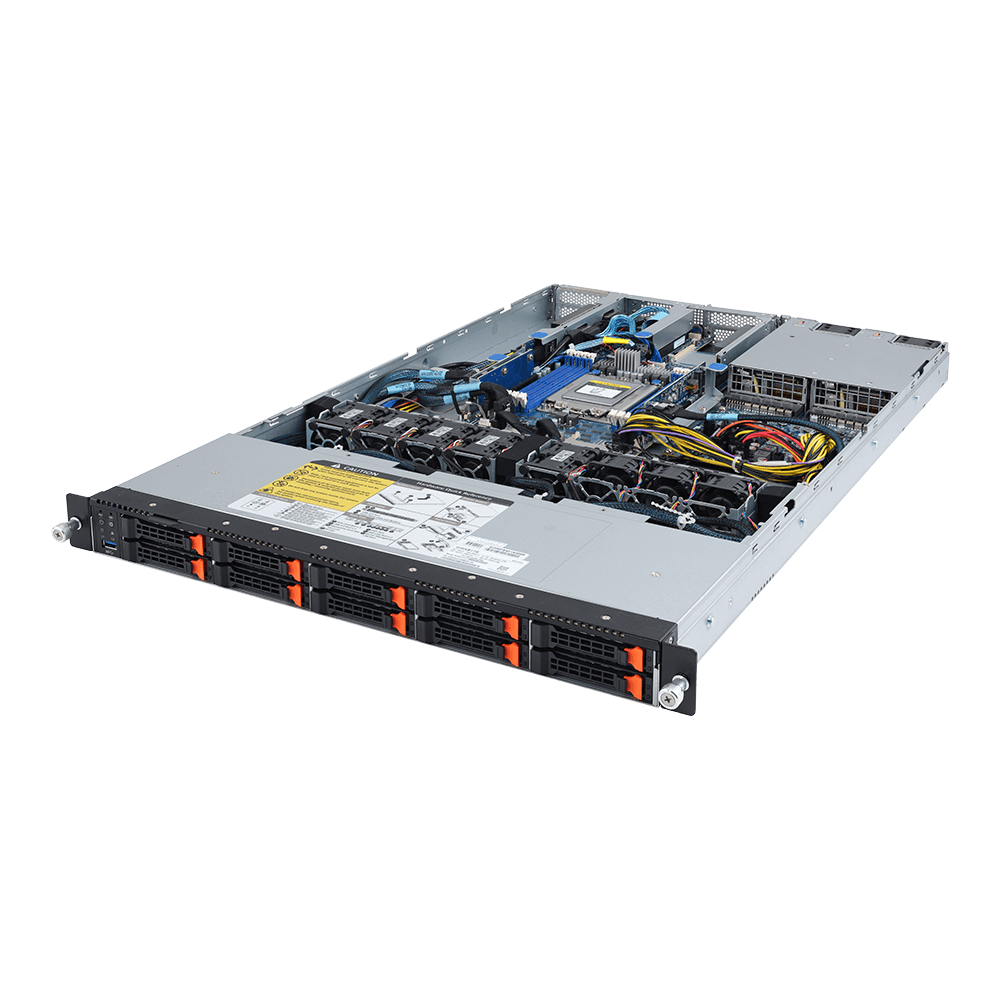

R162-Z10 (rev. 100)
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 1U |
| 最大GPU数 | |
| 電源仕様 | リダンダント電源 |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Dimensions (WxHxD, mm) | 1U 438 x 43.5 x 730 |
|---|---|
| Motherboard | MZ12-HD2 |
| CPU | AMD EPYC™ 7002 series processor family Single processor, 7nm, Socket SP3 Up to 64-core, 128 threads per processor TDP up to 225W Compatible with AMD EPYC™ 7001 series processor family |
| Chipset | System on Chip |
| Memory | 8 x DIMM slots DDR4 memory supported only 8-Channel memory architecture RDIMM modules up to 64GB supported LRDIMM modules up to 128GB supported Memory speed: Up to 3200 MHz |
| LAN | 2 x 1GbE LAN ports (1 x Intel® I350-AM2) 1 x 10/100/1000 management LAN |
| Video | Integrated in Aspeed® AST2500 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp |
| Audio | - |
| Storage | 10 x 2.5" U.2 hot-swappable SSD bays - 6 x 2.5" NVMe/SATA/SAS hybrid ports - 4 x 2.5" NVMe ports without SATA/SAS supported |
| SAS | - |
| RAID | - |
| Peripheral Drives | - |
| Expansion Slots | Riser Card CRSH01B: - 1 x PCIe x16 slots (Gen4 x16), Low profile half-length Riser Card CRS1060: - 2 x PCIe x16 slots (Gen3 x16), Low profile half-length Riser Card CMTP052: 2 x M.2 slots: - M-key - PCIe Gen3 x4 - Supports NGFF-2260/2280 cards 1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4) 1 x onboard M.2 slot: - M-key - PCIe Gen3 x4 - Supports NGFF-2242/2260/2280/22110 cards - CPU TDP is limited to 155W if using M.2 device NOTE: - Support is not provided for mixed GPU populations |
| Internal I/O | 3 x M.2 slots 1 x USB 3.0 header 1 x TPM header 1 x OCP 2.0 mezzanine slots 1 x Front panel header 1 x Back plane board header 1 x IPMB connector 1 x Clear CMOS jumper 1 x BIOS recovery jumper |
| Front I/O | 1 x USB 3.0 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 2 x LAN activity LEDs 1 x HDD activity LED 1 x System status LED |
| Rear I/O | 2 x USB 3.0 1 x VGA 2 x RJ45 1 x MLAN 1 x ID LED |
| Backplane I/O | Backplane P/N: 9CBP10A1NR-00 Speed and bandwidth: 10 x ports for PCIe x4 |
| TPM | 1 x TPM header with SPI interface Optional TPM2.0 kit: CTM010 |
| Power Supply | 2 x 1200W redundant PSUs 80 PLUS Platinum AC input: - 100-240V/ 12-7A, 50-60Hz - 200-240V/ 7A, 50-60Hz DC output: - 1200W - 12V, 80.5A (100-240V) - 12V, 97A (200-240V) - 12Vsb, 3A |
| System Management | Aspeed® AST2500 management controller GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
|
| OS Compatibility | Windows Server 2016 ( X2APIC/256T not supported) Windows Server 2019 Red Hat Enterprise Linux 7.6 ( x64) or later Red Hat Enterprise Linux 8.0 ( x64) or later SUSE Linux Enterprise Server 12 SP4 ( x64) or later SUSE Linux Enterprise Server 15 SP1 ( x64) or later Ubuntu 16.04.6 LTS (x64) or later Ubuntu 18.04.3 LTS (x64) or later VMware ESXi 6.5 EP15 or later VMware ESXi 6.7 Update3 or later |
| Weight | Net Weight: 11.95 kg Gross Weight: 19.2 kg |
| System Fans | 5 x 40x40x56mm (23'000rpm) 3 x 40x40x28mm (18'000rpm) |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Packaging Dimensions | 985 x 588 x 250 mm |
| Packaging Content | 1 x R162-Z10 1 x CPU heatsink 1 x Rail kit |
| Part Numbers | Barebone package: 6NR162Z10MR-00 Spare parts: - Motherboard: 9MZ12HD2NR-00 - Rail kit: 25HB2-3A0202-K0R - CPU heatsink: 25ST1-44320M-A3R - Back plane board: 9CBP10A1NR-00 - Power supply: 25EP0-212002-F3S - M.2 Riser card - CMTP052: 9CMTP052NR-00 - Riser card - CRSH01B: 9CRSH01DNR-00 - Riser card - CRS1060: 9CRS1060NR-00 |
