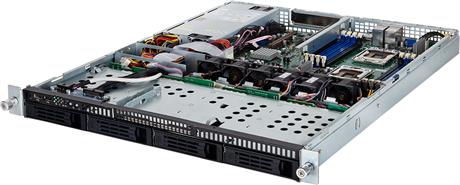

| Dimensions (WxHxD, mm) |
1U
440 x 43.5 x 570 |
| Motherboard |
GA-7PCSL |
| CPU |
Supports Intel® Xeon® processor E5-2400 & E5-2400 V2 product families |
| Socket |
2 x LGA 1356
2 x CPU heatsinks included |
| Chipset |
Intel® C602 |
| Memory |
8 x DIMM slots
Tri channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 800/1066/1333 MHz
1.5V modules: 800/1066/1333/(1600*) MHz
*RDIMM only |
| LAN |
2 x GbE LAN ports (Intel® 82574L)
1 x 10/100 management LAN |
| Video |
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp |
| Storage |
4 x 3.5" hot-swappable HDD/SSD bays |
| SAS |
1 x Mini-SAS (for 4 x SATA 3Gb/s ports)
1 x Mini-SAS (disabled, can be enabled via Intel® upgrade key) |
| SATA |
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports |
| RAID |
Intel® SATA RAID 0/1/5/10 |
| Peripheral Drives |
- |
| Expansion Slots |
1 x Full-length full-height slot
1 x PCIe x16 (Gen3 x16 bus) connector |
| Front I/O |
2 x USB 2.0
1 x Power button with LED
1 x NMI button
1 x ID button with LED
1 x Reset button
2 x LAN LEDs
1 x System status LED
1 x HDD status LED |
| Rear I/O |
4 x USB 2.0
1 x VGA
1 x Serial
3 x RJ45 |
| Internal I/O |
1 x 24-pin main power connector
2 x 8-pin 12V power connectors
1 x CMOS battery
1 x Patsburg-A SKU select connector
2 x CPU fan headers
4 x System fan headers
2 x SATA III 6Gb/s ports
1 x PMBus connector
1 x HDD backplane connector
1 x Mini-SAS connector (SATA II 3Gb/s signal)
1 x Mini-SAS connector
2 x ME enable/disable jumpers
1 x USB 2.0 header
1 x Front panel header
1 x Serial header
1 x TPM header
1 x Chassis intrusion jumper
1 x SCU SGPIO connector
1 x IPMB connector
1 x BMC firmware readiness LED
1 x Clear password jumper
1 x BIOS recovery jumper
1 x Clear CMOS jumper
1 x BIOS write protect jumper
1 x SATA0/1 port DOM support jumper |
| Backplane I/O |
N/A |
| TPM |
1 x TPM header |
| Power Supply |
1 x 500W PSU
80 PLUS Bronze
100~220V AC |
| System Management |
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)
|
| OS Supported |
Windows Server 2003 R2 + SP2 (x86/x64)
Windows Server 2008 SP2 (x86/x64)
Windows Server 2008 R2 (x64)
Red Hat Enterprise Linux 6.2 (x86/x64)
SUSE Linux Enterprise Server 11.1 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2 |
| Weight |
10 kg |
| System Fans |
4 x 40x40x28mm (16000rpm) |
| Operating Properties |
Operating temperature: 5°C to 35°C
Non-operating temperature: 0°C to 50°C
10-80% operating humidity at 30°C |
| Part Numbers |
Barebone: 6NR12P4SMS-00
Rail kit: 25HB2-AA0200-K0R |
