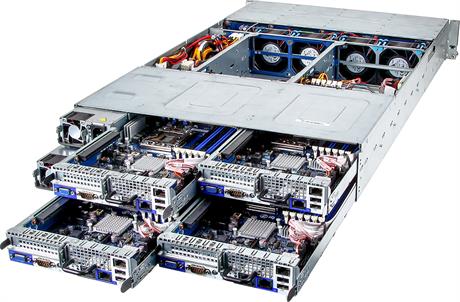

| Dimensions (WxHxD, mm) |
2U
445.8 x 87 x 735 |
| Motherboard |
GA-7PTSV
Mounted in rear-access drawers |
| CPU |
Supports Intel® Xeon® processor E5-2400 & E5-2400 V2 product families |
| Socket |
Per node:
2 x LGA 1356 |
| Chipset |
Per node:
Intel® C602 |
| Memory |
Per node:
12 x DIMM slotsTotal:
48 x DIMM slots
Tri channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 800/1066/1333 MHz
1.5V modules: 800/1066/1333/(1600*) MHz
*RDIMM only |
| LAN |
Per node:
Dual GbE LAN ports (Broadcom® BCM5720)
1 x 10/100 management LAN |
| Video |
Per node:
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp |
| Storage |
Per node:
3 x 3.5" hot-swappable HDD/SSD baysTotal:
12 x 3.5" hot-swappable HDD/SSD bays |
| SAS |
- |
| SATA |
Per node:
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s portsTotal:
8 x SATA III 6Gb/s ports
16 x SATA II 3Gb/s ports |
| RAID |
Intel® SATA RAID 0/1/5/10 |
| Peripheral Drives |
- |
| Expansion Slots |
Per node:
1 x Half-length low-profile slot
1 x PCIe x16 (Gen3 x16 bus) connector
1 x Mezzanine I/F PCIe x8 (Gen3 x8 bus) connectorTotal:
4 x Half-length low-profile slots
4 x PCIe x16 (Gen3 x16 bus) connectors
4 x Mezzanine I/F PCIe x8 (Gen3 x8 bus) connectors |
| Front I/O |
Per node:
1 x Power button with LED
1 x ID button with LED |
| Rear I/O |
Per node:
2 x USB 2.0
1 x Serial
1 x VGA
3 x RJ45
1 x Power button
1 x ID button with LED
1 x NMI button
1 x BMC reset button
1 x Power status LED |
| Internal I/O |
Per node:
1 x 9-pin ATX 12V power connector
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
1 x IPMB header
1 x Front panel header
1 x USB 2.0 header
1 x Serial header
1 x VGA header
1 x SPGIO header
1 x PMBus header |
| Backplane I/O |
12 x SATA/SAS 6Gb/s ports
2 x 10-pin power connectors
2 x Front panel headers
4 x Bridge board connectors |
| TPM |
- |
| Power Supply |
2 x 1200W redundant PSU
80 PLUS Platinum
100~230V AC |
| System Management |
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)
|
| OS Supported |
Windows Server 2008 SP2 (x86/x64)
Windows Server 2008 R2 SP1 (x64)
Red Hat Enterprise Linux 6.2 (x86/x64)
SUSE Linux Enterprise Server 11.2 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2 |
| Weight |
N/A |
| System Fans |
4 x 80x80x38mm (13800rpm) |
| Operating Properties |
Operating temperature: 5°C to 35°C
Non-operating temperature: 0°C to 40°C
10-80% operating humidity at 30°C |
| Part Numbers |
Barebone: 6NR22PDMR-00
Rail kit: 25HB2-AN6804-K0R |
