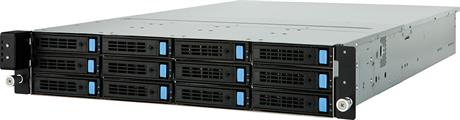

| Dimensions (WxHxD, mm) |
2U
430 x 90 x 745 |
| Motherboard |
GA-7PPSH2 |
| CPU |
Supports:
Intel® Xeon® E5-2600 V2 processors
Intel® Xeon® E5-1600 V2 processors (single CPU configuration only)
Intel® Xeon® E5-2600 processors
Intel® Xeon® E5-1600 processors (single CPU configuration only)
|
| Socket |
2 x LGA 2011
Mounting pitch: square ILM (80x80mm)
2 x CPU heatsinks includedMax. length of M4 screw threads: 3.7mmScrews longer than 3.7mm might damage the motherboard |
| Chipset |
Intel® C602 |
| Memory |
24 x DIMM slots
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz
*Supported by Intel® Xeon® E5-2600 V2 processors onlyDownload the detailed memory configuration table for the E5-1600/2600 V2 processorsDownload the detailed memory configuration table for the E5-1600/2600 processors |
| LAN |
2 x GbE LAN ports (Intel® I350-AM2)
1 x 10/100 management LAN |
| Video |
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp |
| Storage |
12 x 3.5" hot-swappable HDD/SSD bays
4 x Internal 2.5" HDD bays |
| SAS |
1 x Mini-SAS (for 4 x SATA II 3Gb/s ports)
2 x Mini-SAS (disabled, can be enabled via Intel® upgrade key) |
| SATA |
2 x SATA III 6Gb/s ports |
| RAID |
Intel® SATA RAID 0/1/5/10 |
| Peripheral Drives |
- |
| Expansion Slots |
2 x Full-length low-profile slots
1 x PCIe x16 (Gen3 x16 bus) connector
1 x PCIe x16 (Gen3 x8 bus) connector |
| Front I/O |
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN LEDs
1 x HDD status LED
1 x System LED |
| Rear I/O |
2 x USB 2.0
1 x Serial
1 x VGA
3 x RJ45 ports
1 x ID button with LED |
| Internal I/O |
2 x 8-pin ATX 12V power connectors
1 x 24-pin ATX main power connector
1 x PMBus connector
1 x HDD back plane board connector
2 x CPU fan headers
2 x System fan headers
1 x Front panel header
3 x Mini-SAS cable connectors
2 x SATA III 6Gb/s ports
2 x USB 2.0 headers
1 x IPMB connector
1 x TPM header
1 x Patsburg-A SKU Select connector
1 x RAID select connector
1 x Serial header
1 x CMOS battery |
| Backplane I/O |
N/A |
| TPM |
1 x TPM header |
| Power Supply |
2 x 750W redundant PSU
80 PLUS Gold
100~230V AC |
| System Management |
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)
|
| OS Supported |
Windows Server 2003 R2 + SP1 (x64)
Windows Server 2008 SP2 (x86/x64)
Red Hat Enterprise Linux 6.2 (x86/x64)
SUSE Linux Enterprise Server 11.2 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2 |
| Weight |
17 kg |
| System Fans |
4 x 80x80x38mm (9'000rpm) |
| Operating Properties |
Operating temperature: 5°C to 35°C
Non-operating temperature: 0°C to 40°C
10-80% operating humidity at 30°C |
| Part Numbers |
Barebone: 6NR22PEMR-00
Rail kit: 25HB2-086300-I0R |
