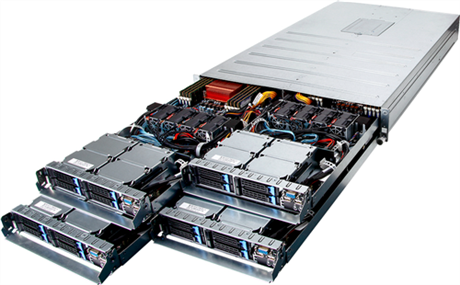

| Dimensions (WxHxD, mm) |
2U
447 x 87.2 x 780 |
| Motherboard |
GA-7PTSH
Mounted in front-access drawers |
| CPU |
Supports:
Intel® Xeon® E5-2600 V2 processors
Intel® Xeon® E5-2600 processors
|
| Socket |
Per node:
2 x LGA 2011Total:
8 x LGA 2011
Mounting pitch: square ILM (80x80mm)Max. length of M4 screw threads: 3.7mmScrews longer than 3.7mm might damage the motherboard |
| Chipset |
Per node:
Intel® C602 |
| Memory |
Per node:
16 x DIMM slotsTotal:
64 x DIMM slots
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz
*Supported by Intel® Xeon® E5-2600 V2 processors onlyDownload the detailed memory configuration table for the E5-1600/2600 V2 processorsDownload the detailed memory configuration table for the E5-1600/2600 processors |
| LAN |
Per node:
Dual GbE LAN ports (Intel® I350-AM2)
1 x 10/100 management LAN |
| Video |
Per node:
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp |
| Storage |
Per node:
4 x 2.5" hot-swappable HDD/SSD baysTotal:
16 x 2.5" hot-swappable HDD/SSD bays |
| SAS |
SAS ports available via Intel® upgrade ROM |
| SATA |
Per node:
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s portsTotal:
8 x SATA III 6Gb/s ports
16 x SATA II 3Gb/s ports |
| RAID |
Intel® SATA RAID 0/1/5/10 |
| Peripheral Drives |
- |
| Expansion Slots |
Per node:
1 x Half-length low-profile slot with PCIe x16 (Gen3 x16 bus) connector
1 x Mezzanine I/F PCIe x8 (Gen3 x8 bus) connectorTotal:
4 x Half-length low-profile slots with PCIe x16 (Gen3 x16 bus) connectors
4 x Mezzanine I/F PCIe x8 (Gen3 x8 bus) connectors |
| Front I/O |
Per node:
2 x USB 2.0
1 x Serial
1 x Power button with LED
1 x ID button with LEDTotal:
8 x USB 2.0
4 x Serial
4 x Power buttons with LED
4 x ID buttons with LED |
| Rear I/O |
Per node:
2 x USB 2.0
1 x Serial
1 x VGA
3 x RJ45Total:
8 x USB 2.0
4 x Serial
4 x VGA
12 x RJ45 |
| Internal I/O |
Per node:
2 x 18-pin power connectors
1 x Front panel header
1 x CMOS battery
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
1 x SATA SGPIO header
1 x USB 2.0 header
1 x LPC header |
| Backplane I/O |
N/A |
| TPM |
1 x TPM header |
| Power Supply |
2 x 1600W redundant PSU
80 PLUS Platinum
100~240V AC |
| System Management |
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)
|
| OS Supported |
Windows Server 2008 SP2 (x86/x64)
Windows Server 2008 R2 SP1 (x64)
Red Hat Enterprise Linux 6.2 (x86/x64)
SUSE Linux Enterprise Server 11.2 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2 |
| Weight |
38kg |
| System Fans |
16 x 40x40x56mm (23000rpm) |
| Operating Properties |
Operating temperature: 5°C to 35°C
Non-operating temperature: 0°C to 40°C
10-80% operating humidity at 30°C |
| Part Numbers |
Barebone: 6NR22PDTMR-00
Rail kit: 25HB2-A86100-K0R in option |
