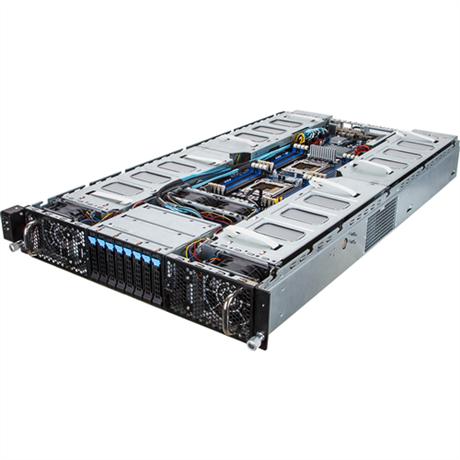

| Dimensions (WxHxD, mm) |
2U
482mm x 86mm x 871mm (DxHxW) |
| Motherboard |
GA-7PPSP |
| CPU |
Supports:
Intel® Xeon® E5-2600 V2 processors
Intel® Xeon® E5-1600 V2 processors (single CPU configuration only)
Intel® Xeon® E5-2600 processors
Intel® Xeon® E5-1600 processors (single CPU configuration only)
|
| Socket |
2 x LGA 2011
Mounting pitch: narrow ILM (56x94mm)Max. length of M4 screw threads: 3.7mmScrews longer than 3.7mm might damage the motherboard |
| Chipset |
Intel® C602 |
| Memory |
16 x DIMM slots
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz
*Supported by Intel® Xeon® E5-2600 V2 processors onlyDownload the detailed memory configuration table for the E5-1600/2600 V2 processorsDownload the detailed memory configuration table for the E5-1600/2600 processors |
| LAN |
2 x 10GbE BASE-T ports (Intel® X540)
1 x 10/100 management LAN
GC-MLBZ1 network card in option:
2 x 10GbE SFP+ ports (Broadcom® BCM57810S)
PCIe 2.0 x8 connector
145 x 68.9 mm
|
| Video |
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp |
| Storage |
8 x 2.5" hot-swappable HDD/SSD bays |
| SAS |
GC-MSLZ1 expansion card in option:
2 x Mini-SAS (for 8 x SAS 6Gb/s ports)
LSI® SAS2208 controller
Hardware RAID 0/1/5/6/10/50/60
Hardware RAID 5/6 XOR Engine (single pass)
Low profile PCIe 2.0 x8 mezzanine connector
76.8 x 98 mm
|
| SATA |
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
4 x SATA II 3Gb/s ports (can be upgraded via Intel® upgrade key) |
| RAID |
Intel® SATA RAID 0/1/5/10 |
| Peripheral Drives |
- |
| Expansion Slots |
8 x PCIe x16 (Gen3 x16 bus) slots supporting:
8 x Intel® Xeon Phi 7120P cards
8 x Intel® Xeon Phi 5110P cards
8 x Nvidia® Tesla K40 cards
8 x Nvidia® Tesla K20 cards
8 x Nvidia® Tesla K10 cards
8 x AMD® FirePro S9150 cards
1 x Half-length low-profile slot
1 x PCIe x16 (Gen3 x8 bus) connector
1 x Proprietary PCIe x8 (Gen3 x4 bus) mezzanine connector |
| Front I/O |
1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
1 x Reset button |
| Rear I/O |
2 x USB 2.0
1 x VGA
1 x Serial
3 x RJ45
1 x Power button
1 x Reset button
1 x ID button
1 x NMI button
1 x System status LED |
| Internal I/O |
1 x Front VGA header
1 x Front serial port header
1 x IPMB connector
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
4 x SATA/SAS 3Gb/s ports
1 x SATA SGPIO header
1 x SAS SGPIO header
1 x USB 2.0 header
1 x BIOS write protect jumper
1 x ME recovery jumper
1 x 18-pin SSI main power connector
2 x 14-pin ATX power connectors
1 x Front panel header (primary)
1 x Front panel header (secondary)
1 x HDD/SSD back plane board header
1 x PMBus Power Select jumper
1 x CMOS battery
1 x Clear CMOS jumper
1 x BMC firmware readiness LED
1 x Patsburg upgrade ROM header
1 x TPM header
1 x Force to Stop FRB Timer jumper
1 x S3 Power On Select jumper
1 x Chassis intrusion header
1 x BIOS recovery jumper
1 x Clearing Supervisor Password jumper |
| Backplane I/O |
N/A |
| TPM |
1 x TPM header |
| Power Supply |
2 x 1600W redundant PSU
80 PLUS Platinum
AC input:
- 100-127V/ 12.9A, 47-63Hz
- 200-240V/9.5A, 47-63Hz
DC output:
- 1000W@100-127V
- 1600W@200-240V |
| System Management |
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)
|
| OS Supported |
Red Hat Enterprise Linux 6.2 (x86/x64)
SUSE Linux Enterprise Server 11.2 (x86/x64) |
| Weight |
N/A |
| System Fans |
8 x 80x80x38mm (15000rpm) |
| Operating Properties |
Operating temperature: 10°C to 35°C
Non-operating temperature: -40°C to 60°C
10-80% operating humidity (non-condensing) |
| Part Numbers |
Barebone without rail kit: 6NR22PHLMS-00
Barebone with rail kit: 6NR22PHLMS-SI
Rail kit: 25HB2-A86100-K0R |
