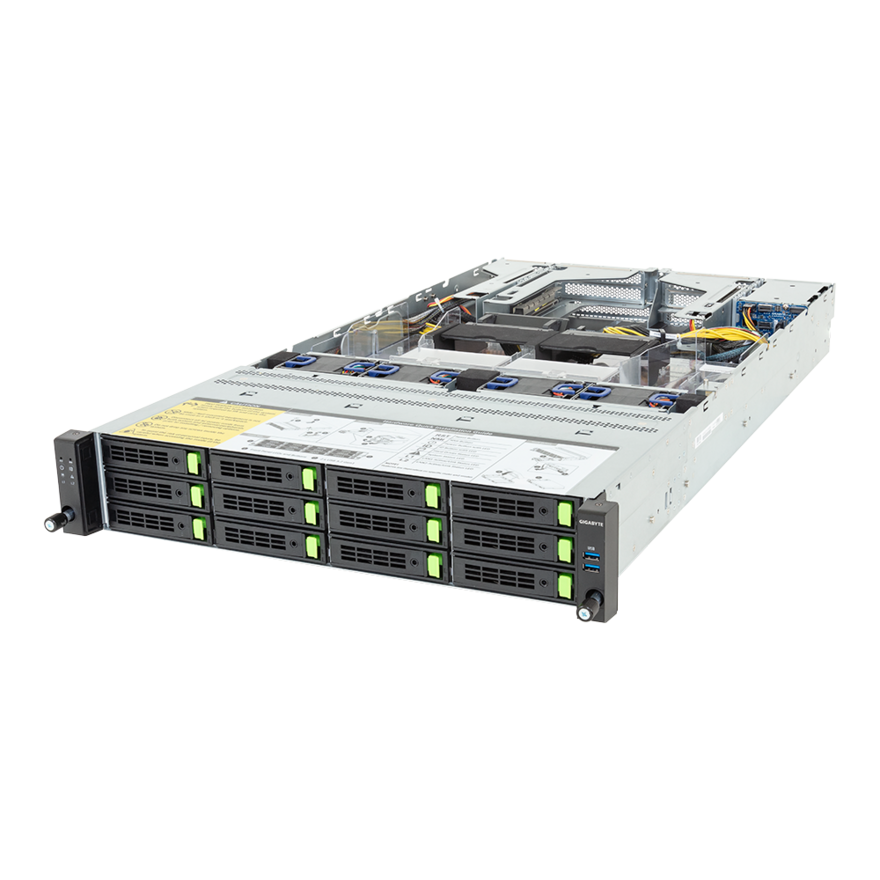

R284-A93-AAS1
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | 2 |
| CPU | |
| 筐体サイズ | 2U |
| 最大GPU数 | |
| 電源仕様 | リダンダント電源 |
| 用途/特長 | |
| 製品説明 | 最大2基のデュアルスロットGen5 GPUをサポート
デュアルIntel® Xeon® 6プロセッサー、LGA 7529
12チャンネルDDR5 RDIMM / MRDIMM、24 x DIMMs
デュアルROMアーキテクチャ
2 x Intel® I350-AM2経由1Gb/秒LANポート
12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4ホットスワップベイ
2 x 2.5" SATA/SAS-4ホットスワップベイ(背面)
2 x M.2スロット(PCIe Gen5 x4インターフェイス)
2 x GPU用FHFL PCIe Gen5 x16スロット
2 x FHHL PCIe Gen5 x16スロット
1 x LP PCIe Gen5 x16スロット
2 x OCP NIC 3.0 PCIe Gen5 x16スロット
2 x 3200W 80 PLUS Titaniumリダンダント電源 |
Intel® Xeon® 6 プロセッサー搭載サーバーのご紹介
製品仕様
| Dimensions (WxHxD, mm) | 2U 438 x 87.5 x 815 |
|---|---|
| Motherboard | MA94-FS0 |
| CPU | Intel® Xeon® 6 Processors - Intel® Xeon® 6900-Series Processors Dual processor, TDP up to 500W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable. |
| Socket | 2 x LGA 7529 Socket BR |
| Chipset | System on Chip |
| Memory | 24 x DIMM slots DDR5 memory supported 12-Channel memory architecture MRDIMM supported [1] RDIMM: Up to 6400 MT/s MRDIMM: Up to 8800 MT/s [1] MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores. |
| LAN | Rear (I/O board - CDCR010): 2 x 1Gb/s LAN (1 x Intel® I350-AM2) - Support NCSI function 1 x 10/100/1000 Mbps Management LAN |
| Video | Integrated in Aspeed® AST2600 - 1 x Mini-DP |
| Storage | Front hot-swap: 12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 [1] - (4 x NVMe from CPU_0, 8 x NVMe from CPU_1) Rear hot-swap: 2 x 2.5" SATA/SAS-4 [2] - (SATA from CPU_0, through I/O board) Internal M.2: 2 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_0 Internal M.2 (I/O board - CDCR010): 1 x M.2 (2280), PCIe Gen5 x2, from CPU_0, occupied for SATA [1] Storage card is required to support SATA and SAS drives. [2] SAS card is required to support SAS drives. |
| SAS | Require SAS add-in cards |
| RAID | Require RAID add-in cards Onboard VROC key header |
| PCIe Expansion Slots | PCIe Cable x 3: - 1 x FHHL x16 (Gen5 x16), from CPU_0, for GPUs - 1 x FHHL x16 (Gen5 x16), from CPU_1, for GPUs - 1 x LP x16 (Gen5 x16), from CPU_0 Riser Card CRS101J: - 1 x FHHL x16 (Gen5 x16), from CPU_0 Riser Card CRS101K: - 1 x FHHL x16 (Gen5 x16), from CPU_1 1 x OCP NIC 3.0 (Gen5 x16), from CPU_0 - Supports NCSI function 1 x OCP NIC 3.0 (Gen5 x16), from CPU_1 - Supports NCSI function |
| Front I/O | 2 x USB 3.2 Gen1 ports (Type-A) 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 2 x LAN activity LEDs 1 x Storage activity LED 1 x System status LED |
| Rear I/O | I/O board - CDCR010: 2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 2 x RJ45 ports 1 x MLAN port 1 x ID LED |
| Backplane Board | Speed and bandwidth: Front side - CBP20C7: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s Rear side - CBP2025: SATA 6Gb/s or SAS-4 24Gb/s |
| Security Modules | 1 x TPM header with SPI interface - Optional TPM2.0 kit: CTM012 1 x PRoT connector (only enabled on RoT SKU) |
| Power Supply | 2 x 3200W 80 PLUS Titanium redundant power supply [1] AC Input: - 100-127V~/ 16A, 50-60Hz - 200-220V~/ 16A, 50-60Hz - 220-240V~/ 16A, 50-60Hz DC Input: (Only for China) - 240Vdc/ 16A DC Output: - Max 1300W/ 100-127V~ +12.2V/ 106.6A +12.2Vsb/ 3A - Max 3000W/ 200-220V~ +12.2V/ 246A +12.2Vsb/ 3A - Max 3200W/ 220-240V~ or 240Vdc Input +12.2V/ 262.3A +12.2Vsb/ 3A [1] The system power supply requires C19 power cord. [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution. |
| System Management | Aspeed® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface
|
| OS Compatibility | Please refer to OS compatibility table in support page |
| System Fans | 4 x 80x80x56mm (15,500rpm) |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Packaging Dimensions | 1077 x 679 x 300 mm |
| Packaging Content | 1 x R284-A93-AAS1 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 2 x Carriers 1 x 2-Section Rail kit |
| Part Numbers | - Barebone package: 6NR284A93DR000AAS1* - Motherboard: 9MA94FS0UR-000* - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R - CPU heatsink: 25ST1-45320G-M1R - M.2 heatsink: 12SP2-11000E-00R - Front panel board - CFP2001: 9CFP2001NR-00* - Backplane board - CBP2025: 9CBP2025NR-00* - Backplane board - CBP20C7: 9CBP20C7NR-00* - Fan module: 25ST2-885621-A0R - M.2 type SATA card - CRS2810: 9CRS2810NR-00* - Riser card - CRS101J: 9CRS101JNR-00* - Riser card - CRS101K: 9CRS101KNR-00* - I/O board with M.2 slot - CDCR010: 9CDCR010NR-00* - Mini-DP to D-Sub cable: 25CRN-200801-K1R - Power supply: 25EP0-232000-G1S Optional parts: - C19 power cord 125V/15A (US): 25CP1-018000-Q0R - C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R - C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R - 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R - Cable Management Arm: 25HB1-R18300-K0R |
