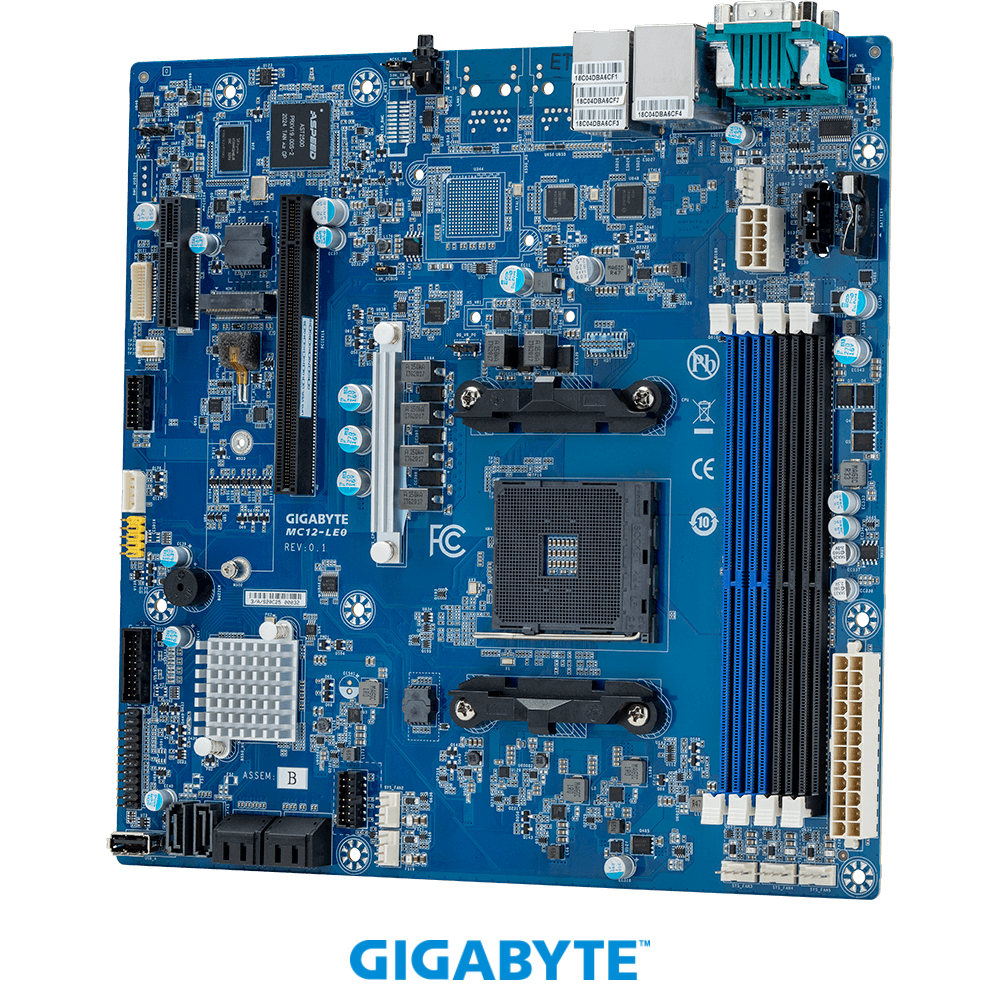

MC12-LE0 (rev. 1.x)

製品種別 マザーボード
CPUソケット数
CPU 　
　
　
CPUソケット PGA1331 (Socket AM4)
マザーボードサイズ Micro-ATX
製品説明

製品仕様

Form Factor microATX
244W x 244D (mm)
CPU AMD Ryzen™ 5000 Series/ Ryzen™ 4000 Series/ Ryzen™ 3000 Series Processors
Socket AM4
Chipset AMD B550
Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Supported ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Supported non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory speed: Up to 3200/ 2933/ 2667/ 2400/ 2133 MHz
LAN 2 x 1GbE LAN ports ( Intel® I210-AT)
1 x 10/100/1000 management LAN
Video Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio N/A
SAS N/A
SATA 6 x SATA 6Gb/s ports
RAID RAID 0/1/10
Expansion Slots Slot_6 (PCIEX16): 1 x PCIe x16 (Gen4 x16 bus) slot from CPU
Slot_4 (PCIEX4): 1 x PCIe x4 (Gen4 x4 bus) slot from CPU

1 x M.2 slot:
- M-key
- PCIe Gen3 x1
- Supports NGFF-2242/ 2280 cards
Internal I/O 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA ports
1 x M.2 slot
1 x HDD back plane board header
1 x CPU fan header
5 x System fan headers
1 x USB 3.1 Gen1 header with 2-port
1 x USB 3.1 Gen1 type-A connector
1 x USB 2.0 header with 2-port
1 x TPM header
1 x Front panel header
1 x IPMB connector
1 x PMBUS connector
1 x Clear CMOS jumper
Rear I/O 2 x USB 3.1 Gen1
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
TPM 1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
OS Compatibility Windows 10 64-bit
Board Management Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
PSU Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Operating Properties Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content 1 x MC12-LE0
1 x I/O shield
1 x Quick start guide
4 x SATA cables
Single Box dimensions: 321 x 308.5 x 78.5 mm
Carton dimension: 630 x 420 x 345 mm
Quantity: 10 x single box with one carton
Bulk Packaging Content 10 x MC12-LE0
10 x I/O shields
Carton dimensions: 609 x 581 x 362 mm
MOQ: 10 PCS MC12-LE0
Reference Numbers Bulk: 9MC12LE0NR-00
Part Numbers:
- I/O shield: 12AIO-MC12C0-10R
- SATA 6Gb/s cable: 12CF1-2SAT01-31R
