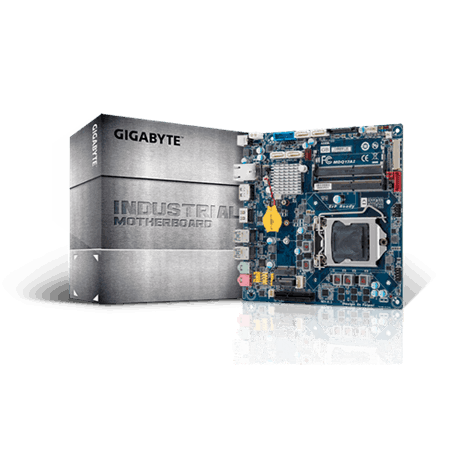

| Form Factor |
Thin Mini-ITX
170W x 170D (mm) |
| Operating Properties |
Operating temperature: -10°C to 50°C
Operating humidity: 0-85% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-85% (non-condensing) |
| CPU |
Supports for Intel® Core™ i7 processors
Intel® Core™ i5 processors
Intel® Core™ i3 processors
Intel® Pentium® processors
Intel® Celeron® processors
L3 cache varies with CPU |
| Socket |
1 x LGA 1151 |
| Chipset |
Intel® Q170 Express Chipset |
| Memory |
2 x SO-DIMM slots
1.2V DDR4 memory module
Dual channel memory architecture
Up to 32GB
DDR4 2133MHz |
| LAN |
1 x GbE LAN port (Intel® I219LM) |
| Video |
Intel® HD Graphics
1 x DisplayPort up to 4096 x 2304 @60Hz
* Support for DisplayPort 1.2 version
1 x HDMI port up to 4096 x 2160 @24Hz
* Support for HDMI 1.4 version
1 x LVDS connector up to 1920 x 1200 @60Hz
* Support for up to 3 displays at the same time |
| Audio |
Realtek ALC887
Realtek ALC105 |
| SATA |
4 x SATA 6Gb/s ports
One port with SATA DOM supported
1 x M.2 slot:
- M-key
- SATA 6Gb/s or PCIe 3.0 x4
- Supports NGFF-2260/2280 |
| RAID |
Intel® SATA RAID 0, RAID 1, RAID 5, and RAID 10 |
| Expansion Slots |
1 x PCIe x4 (3.0 x4 bus) slot
1 x M.2 slot:
- E-key
- PCIe 3.0 x4
- Supports NGFF-2230 |
| Internal I/O |
1 x 2-pin power connector
1 x CPU fan header
1 x System fan header
4 x SATA 6Gb/s connectors
2 x M.2 slot
1 x SATA power connector
5 x USB 2.0 headers
1 x USB 3.0 connector
1 x Front panel header
1 x Front panel audio header
1 x Digital microphone header
1 x LVDS 18/ 24bit connector
1 x LCD_VCC header
1 x FPD_PWR header
1 x Backlight switch header
1 x NFC connector
1 x COM |
| Rear I/O |
1 x DC_IN
1 x RJ45
4 x USB 3.0
1 x HDMI
1 x DisplayPort
1 x Line Out
1 x MIC In |
| TPM |
1 x Onboard TPM 2.0
(SLB9665VQ2.0 Infineon) |
| OS Supported |
Windows 10 (x64)
Windows 8.1 (x64)
Windows 7 (x32 / x64)
- Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7 |
| PSU Connectors |
1 x 12-19V DC-in or
1 x 2 pin (1 x 2) power connector |
| Packaging Content |
1 x Quick Installation Guide
1 x IO standard shielding (12AIO-H77TN4-00R)
1 x low profile shielding (12AIO-H77TN3-00R)
1 x SATA power cable (25CRI-710300-K1R) |
| Ordering Information |
9MDQ17AINR-SI
20 units per carton
Packaging dimensions: 550 x 451 x 330 mm |
